MIDLAND X-TRA TALK LXT118 - Manual (Page 2)

Welcome to the world of Midland electronics
Congratulations on your purchase of a high quality MIDLAND product. Your
2-way radio represents state-of-the-art high-tech engineering. Designed for
GMRS (General Mobile Radio Service) operation, this compact package is
big on performance. It is a quality piece of electronic equipment, skillfully
constructed with the finest components. The circuitry is all solid-state and
mounted on a rugged printed circuit board. Your two-way radio is designed
for reliable and trouble-free performance for years to come.

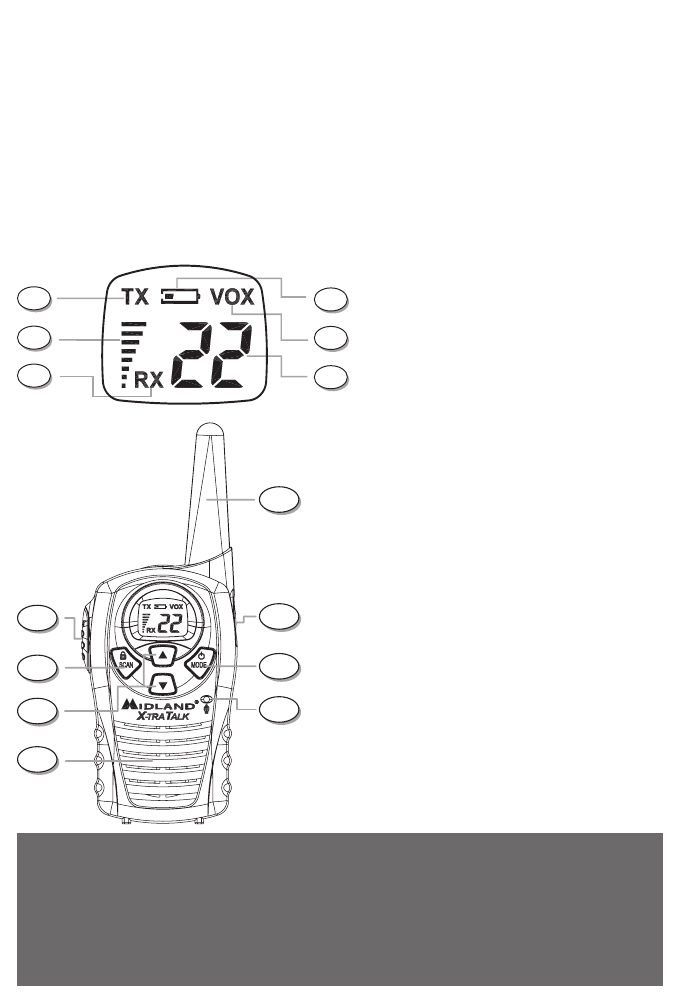

LCD DISPLAY
1. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
2. VOLUME METER – Indicates the
volume setting of the radio.
3. RECEIVE (RX) ICON – Indicates
radio is receiving a transmission.
4. LOW BATTERY ICON – Indicates
the battery level is low.
5. VOX ICON – Indicates when VOX
mode is active.
6. CHANNEL NUMBER – Changes
from 1~22 on GMRS/FRS band.
1
CONTROLS
7. PTT Button – Press and hold to trans-
mit voice communication.
8. SCAN/LOCK Button – Press to enter
SCAN mode. Press and hold to turn
KEY LOCK on/off.
9. UP ▲ and DOWN ▼ Buttons – Make
adjustments in MENU mode.
10. SPEAKER – Built-in speaker.
11. ANTENNA
12. EXTERNAL SPEAKER/MIC/CHG
JACK
13. POWER / MODE Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press momentarily to
access Menu mode.
14. MIC – Built-in microphone.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device does not cause harmful interference, and (2) this radio
must accept any interference that may cause undesired operation.
To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation,
this radio has been tested and meets the FCC RF exposure guidelines when used with
Midland Radio Corp. accessories supplied or designated for this product. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines.
