MTD Yard-Man TB75SS - Manual

Issued 12/02
Item Part No. Description
33 753-1203 Starter Housing Assembly
(includes 25-32, 34 & 39)
34 791-181862 Housing Screw
35 791-182368 Clutch Washer
36 791-182369 Clutch Rotor Assembly
37 791-153592 Clutch Drum Assembly
38 753-1204 Clutch Cover Assembly
(includes 39-42)
39 791-181345 Cover Screw
40 791-182519 Anti-Rotation Screw
41 753-04003 Clamping Screw
42 791-180217 Clamping Nut
43 791-182798 Wire Leads and Sleeve
44 791-611063 Ground Tab
45 753-04109 Module Assembly
46 791-610311B Spark Plug
47 753-04110 Muffler Assembly (includes 48-53)
48 753-04312 Spark Arrestor Screen
49 791-182065 Exhaust Gasket
50 791-147575 Muffler Mounting Bolt
51 753-04313 Spark Arrestor Plate
52 753-04314 Spark Arrestor Hood
53 753-04315 Spark Arrestor Screw
54 753-04111 Cylinder Assembly (includes 56-57)
55 753-1207 Piston and Rod Assembly
56 753-04182 Cylinder Gasket
57 791-182723 Cylinder Bolt
* 791-180602 O.E.M. Carburetor Repair Kit
* 791-181069 Gasket Diaphragm Repair Kit
* 753-1209 Piston Ring Set
* 753-04112 Short Block Assembly
(includes 8, 13, 21, 46, 54-57)
* 791-181599 Clutch Springs (Qty. 2)
* Items Not Shown
39
1
2
3 6
8
10
3
4
5
9
11
12
13
55
56
19
57
17
14
15
16
18
35
36
37
23
24
31
25 26
29
27
34
42
33
22
44
45
54
46
49
50
21
20
7
43
40
39
38
49
Item Part No. Description
1 753-04317 Air Cleaner/Muffler Cover Assembly
(includes 2 & 39)
2 791-180350B Air Cleaner Filter
3 791-180351 Carburetor Mounting Screw Assembly
4 753-1193 Choke Extension
5 753-1194 Choke Plate
6 753-04318 Carburetor Assembly (includes 7 & 18)
7 791-610675 Carburetor Gasket
8 791-181860 Carb Mount Screw
9 791-181801 Primer and Hose Assembly
10 753-1196 Carb Mount Assembly (includes 8)
11 791-684451 Reed Assembly
12 753-1208 Carburetor Mount Gasket
13 753-04108 Crank Case Service Assembly
(includes 8 & 20)
14 791-612134 Rear Mounting Pad
15 753-04307 Fuel Tank Assembly (includes 16-18)
16 791-182612 Fuel Cap Assembly
17 791-182352 Fuel Return Line
18 753-04233 Fuel Line Assembly
19 791-145308 Front Mounting Pad
20 791-153520 Shroud Assembly
21 791-181861 Shroud Screw
22 791-182064 Shroud Extension and Stand
23 791-181867 Flywheel Assembly
24 791-181065 Spacer
25 753-1199 Recoil Pulley Assembly
26 753-04286 Recoil Spring
27 753-1200 Rope Guide
28 791-181247 Pulley Retainer
29 791-181079 Pull Handle
30 791-613103 Rope
31 753-1201 Pressure Plate Assembly
32 753-1202 Plate Screw
32
28
30
39
41

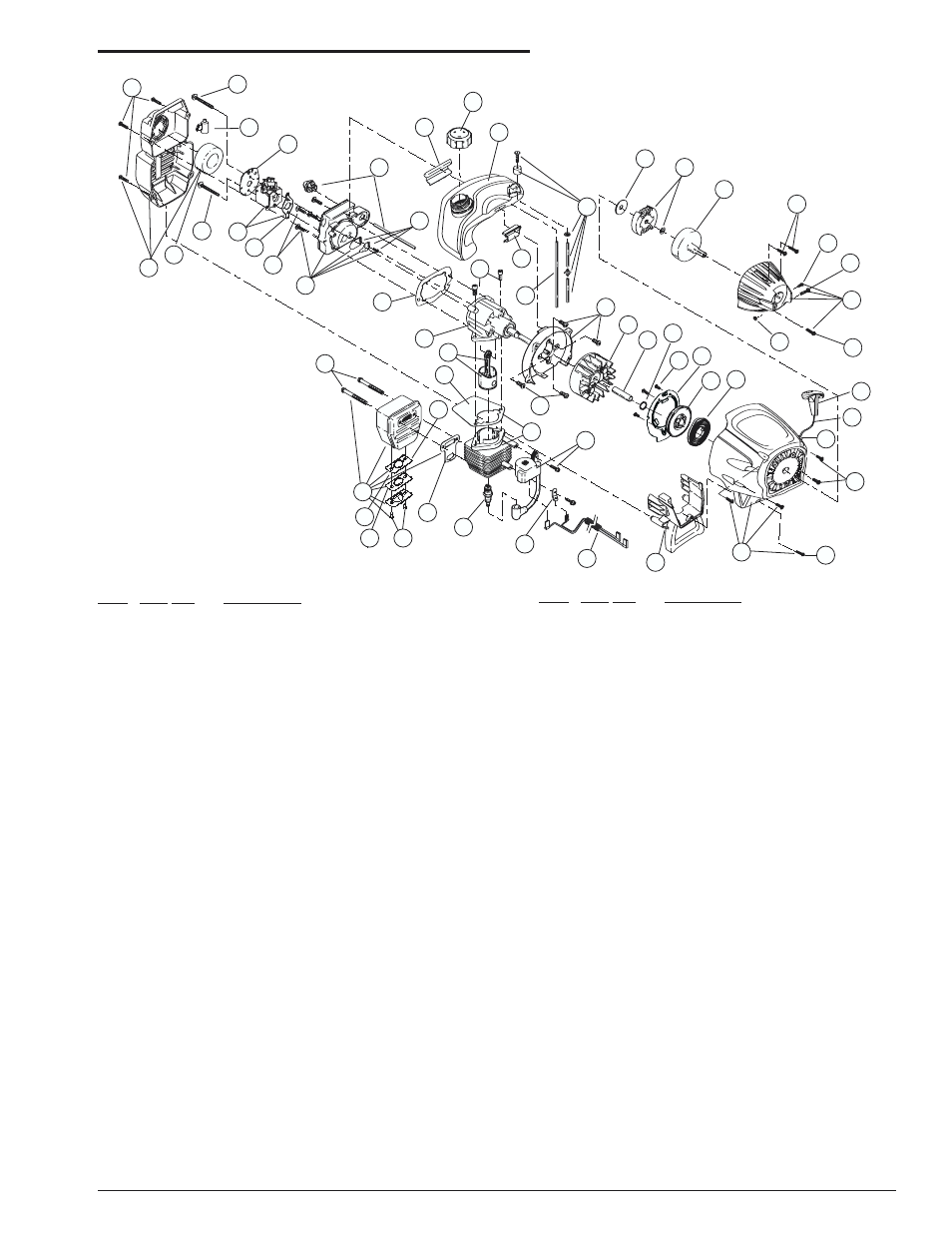

ENGINE PARTS - MODEL TB75SS
2-CYCLE GAS TRIMMER
PPN 41ADT75C763
47
51
52 53
39
