OM-2248 Page 11

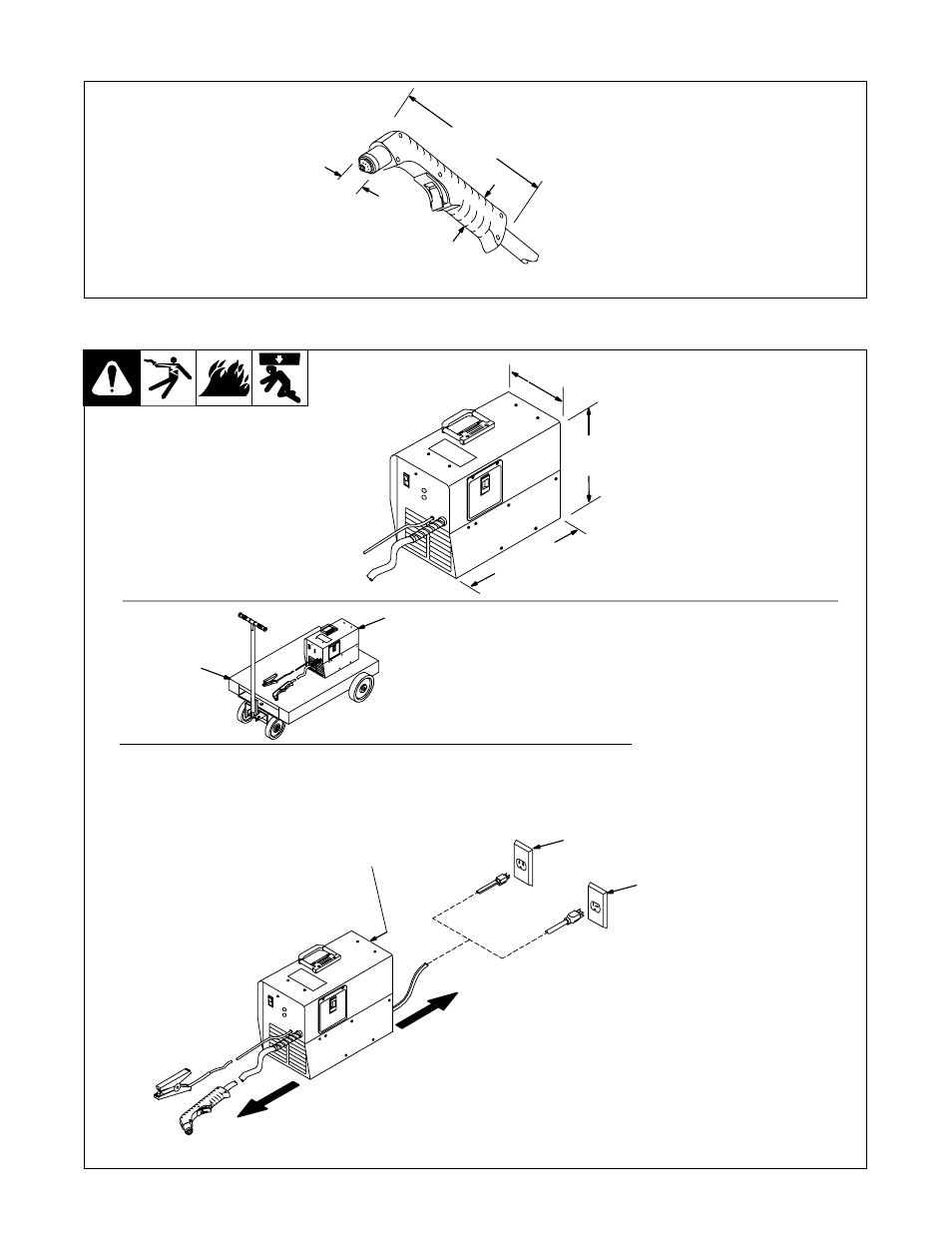

4-4. Torch Dimensions And Weight
Ref. 801 397-A
3.0 lb (1.4 kg)
1 in
(25 mm)
8-3/8 in
(213 mm)
1-3/8 in
(35 mm)
18 in
(457 mm)
4-5. Selecting A Location
loc_2 3/96 - Ref. 802 459-B / 802 676-A / 802 460-B
1 Lifting Handle
Use handle to lift unit.
2 Hand Cart
Use cart or similar device to move
unit.
3 120 VAC Receptacle (Non-CE
Models)
4 230 VAC Receptacle
(CE Models)
Locate unit near correct input
power supply.
Y Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
6-3/4 in
(171 mm)
17 in
(432 mm)
Movement 1
2
Location And Airflow
Dimensions And Weight
44 lb (20 kg) − Non-CE Models
10 in
(254 mm)
10 in
(254 mm)
52 lb (24 kg) − CE Models
3
4
.
Serial Number/Rating Label located on
rear panel of plasma cutter; use label to
determine input power for unit.
