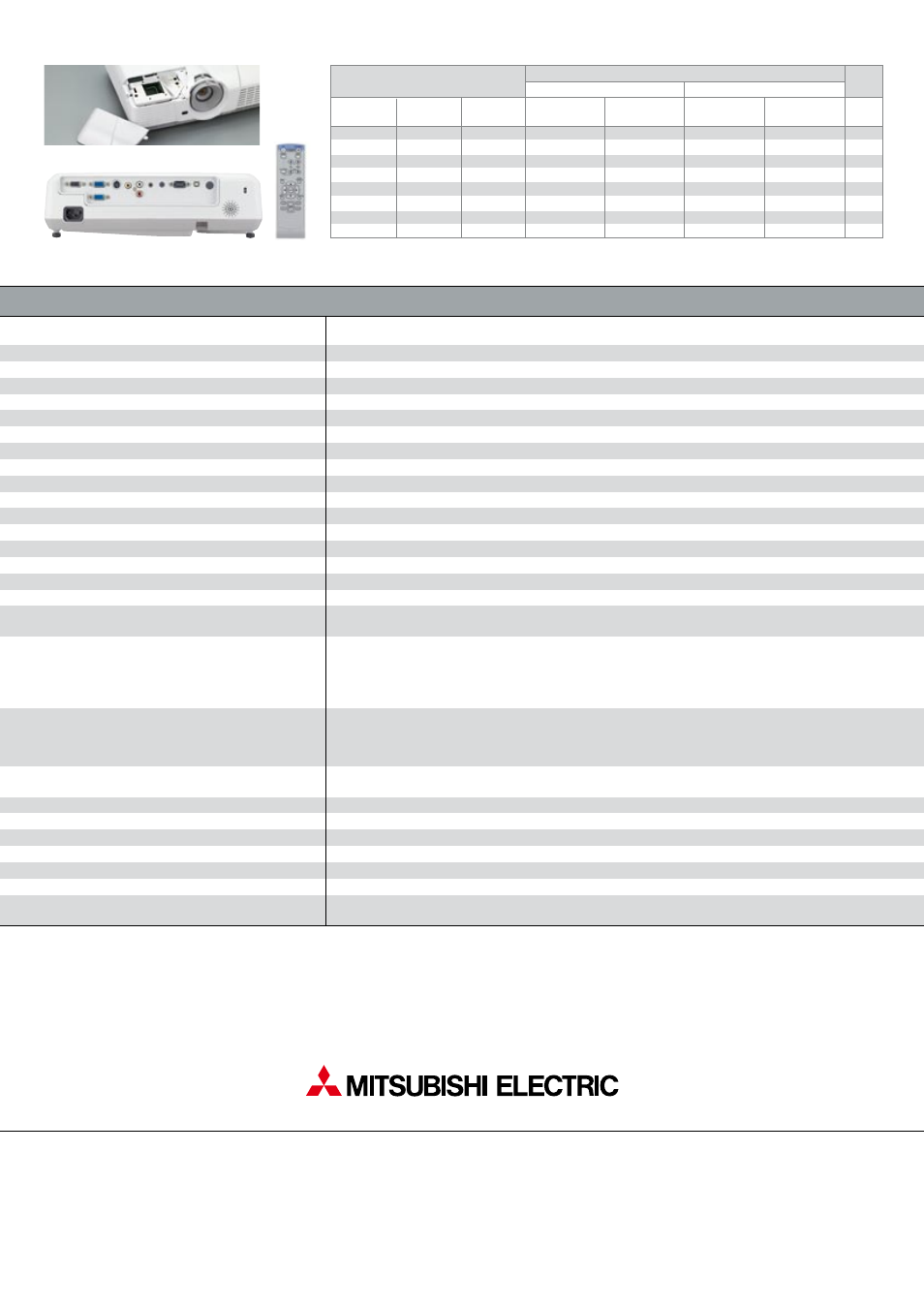

Specifications
Mitsubishi Electric Europe B.V. • German Office • Electronic Visual Systems • Gothaer Str. 8 • D-40880 Ratingen
Tel.: +49 (0) 21 02/4 86 92 50 • Fax: +49 (0) 21 02/4 86 73 20 • www.Mitsubishi-EVS.de
The right to make technical changes is reserved; no liability is accepted for printing or other errors.
Model XD520U / XD500U
Technology 0.55" DLP ® chip, 12° LVDS, DDP2230
Resolution 1024 x 768 (total 786,432 pixels)
Brightness XD520U: 3000 ANSI lumens, XD500U: 2200 ANSI lumens
Contrast 2000:1 (on/off)
Vertical Frequency (V-Sync) 50–85 Hz
Horizontal Frequency (H-Sync) 15–80 kHz
Band Width up to 110 MHz
Projection Lamp XD520U: 280 W, XD500U: 200 W
Lamp Life approx. 3000 hours (low mode)¹
Lens XD520U: F/2.5–2.8, f = 18.4–22.0 mm, XD500U: F/2.5–2.7, f = 19.9–23.9 mm
Focus/Zoom Manual focus and zoom (zoom ratio: 1.2:1)
Throw Ratio XD520U: 1.6–2.0:1, XD500U: 1.8–2.1:1
Picture Diagonal 1.02–7.62 m
Fan Noise XD520U: 34 dB (low mode), XD500U: 26 dB (low mode)
Audio Speaker 2 W mono
PC Compatibility 640 x 480 to 1024 x 768 pixels (compr. 1280 x 1024 pixels), incl. WXGA, Sync on green available
Video Compatibility NTSC/NTSC 4.43, PAL (incl. PAL-M, N), SECAM, PAL-60, Comp. Video: 480i/p (525i/p),
576i/p (625i/p), 720p (750p), 1080i (1125i, 60 Hz), 1080i (1125i, 50 Hz)
Features PIN-code protection (menu access), metallic security anchor, instant shut-down,
Digital Keystone Correction (vertical), lens-center design, Easy Lamp Access (from top),
Color Enhancer 2, 6-segment color wheel, Wall-Screen function for diverse colors,
programmable start logo, variable adjustment of 16:9 position (center/upper/lower),
height adjustable stand feet, Video Line Doubler (2:3/2:2 pull-down), 10-language OSD
Input Terminals PC (RGB): 2 x mini-D-sub 15-pin
PC-Audio: 1 x stereo-mini-jack (ø 3.5 mm)
Video: 1 x RCA, 1 x S-Video
Video-Audio: 1 x RCA (L, R)
Output Terminals PC (RGB): 1 x mini-D-sub 15-pin
Audio: 1 x stereo-mini-jack (ø 3.5 mm)
Communication Terminals USB terminal with up/down function, 1 x RS232C (D-sub 9-pin)
Remote Control Complete operation of the projector, PowerPoint pages up/down via USB
Dimensions (W x H x D) 332 x 102 x 250 mm (excl. stand feet)
Weight XD520U: 3.2 kg, XD500U: 2.9 kg
Power Consumption XD520U: approx. 380 W, XD500U: approx. 290 W
Power Supply AC 100–240 V, 50/60 Hz
Supplied Accessories Cable set, remote control (incl. batteries), soft bag, multilingual user manual (CD-ROM),
safety manual incl. quick start guide, lens cap
¹Depending on the operation environment and application. This is an average value given by the manufacturer based on ideal conditions.
Easy access to lamp from top
Picture Size (4:3 format)
Distance from Screen
Offset
XD520U XD500U
Diagonal Size Width Height cm/minimal with cm/maximal with cm/minimal with cm/maximal with
cm cm cm maximal zoom minimal zoom maximal zoom minimal zoom cm
102 81 61 130 157 140 173 5
152 122 91 196 241 213 262 7
203 163 122 262 318 284 348 9
254 203 152 328 399 358 437 11
381 305 229 495 599 538 658 17
508 406 305 660 800 719 876 23
635 508 381 828 1001 900 1097 29
762 610 457 993 – 1080 – 34
