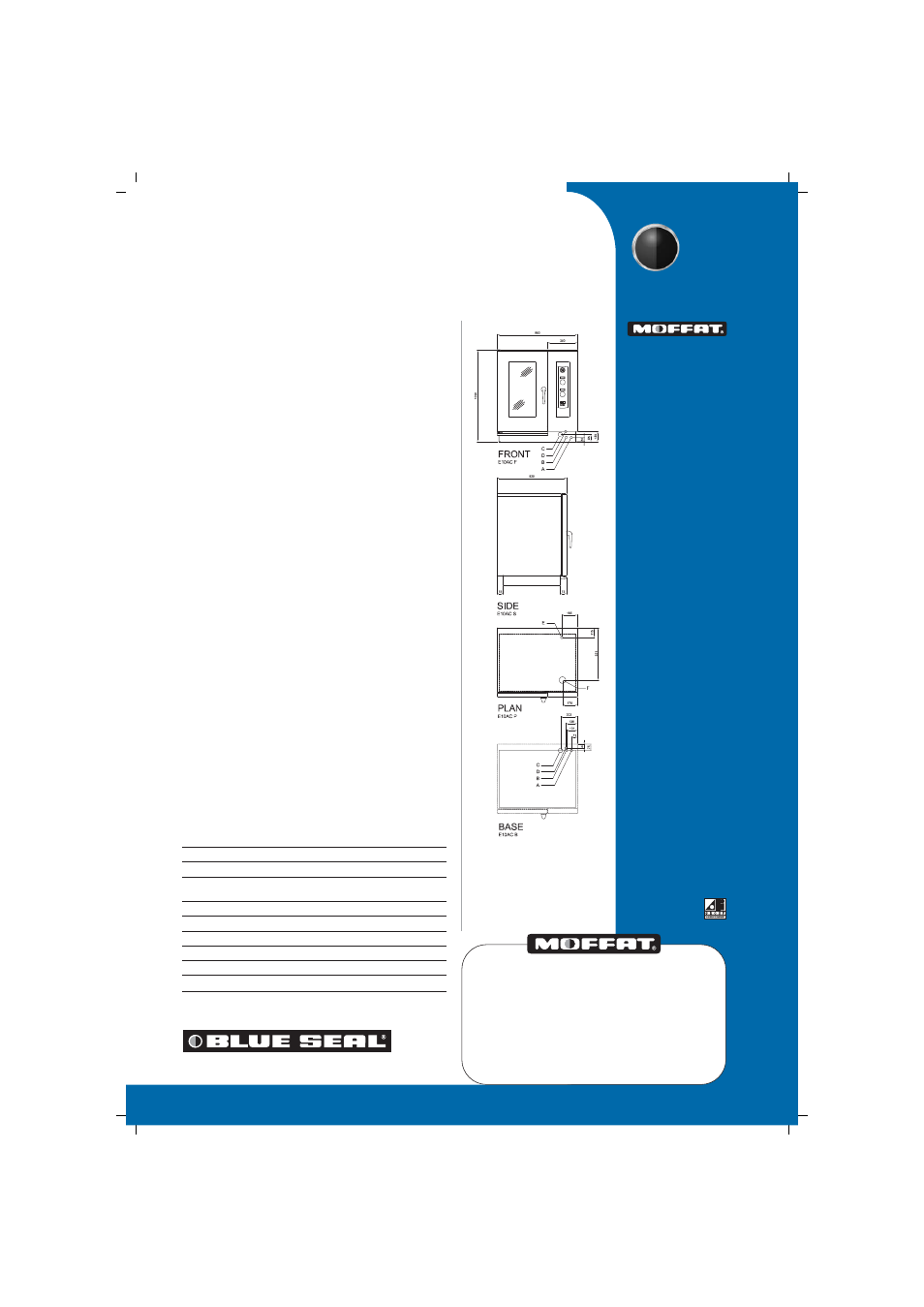

T E C H N I C A L S P E C I F I C A T I O N S H E E T F O R
BLUE SEAL ELECTRIC COMBI STEAMER
AC SERIES E10AC DD 10 x 1/1GN CAPACITY
A = WATER CONNECTION R 3 / 4
(SOFTENED WATER) refer to installation
manual for water treatment values.
B = WATER CONNECTION R 3 / 4
C = DRAIN CONNECTION Ø50
D = ELECTRICAL CONNECTION ENTRY
E = HIGH/LOW PRESSURE RELIEF VENT
F = OVEN VENT Ø80
Optional Extras
SC Core temperature probe
SPT10 Stainless steel stand with 10 x 1/1 GN shelves to suit 10AC DD
SST10 Removable rack complete with fitting frame alternative to side
runners to suit 10AC DD
TLT10 Removable frame for oven and plate racks to suit 10AC DD
SGT10 Removable oven rack to suit 10AC DD
PRT10 Plate banquet rack to suit 10AC DD / 30 plates
CRT10 Trolley for removable oven rack with drip tray to suit 10AC DD
CPT10 Thermal cover for plate banqueting system to suit 10AC DD
KP004 Set of four legs for bench mounting
