4092 cylinder limitation, Subsystem configuration, Jumper location/configuration – Maxtor DIAMONDMAX 90840D7 User Manual

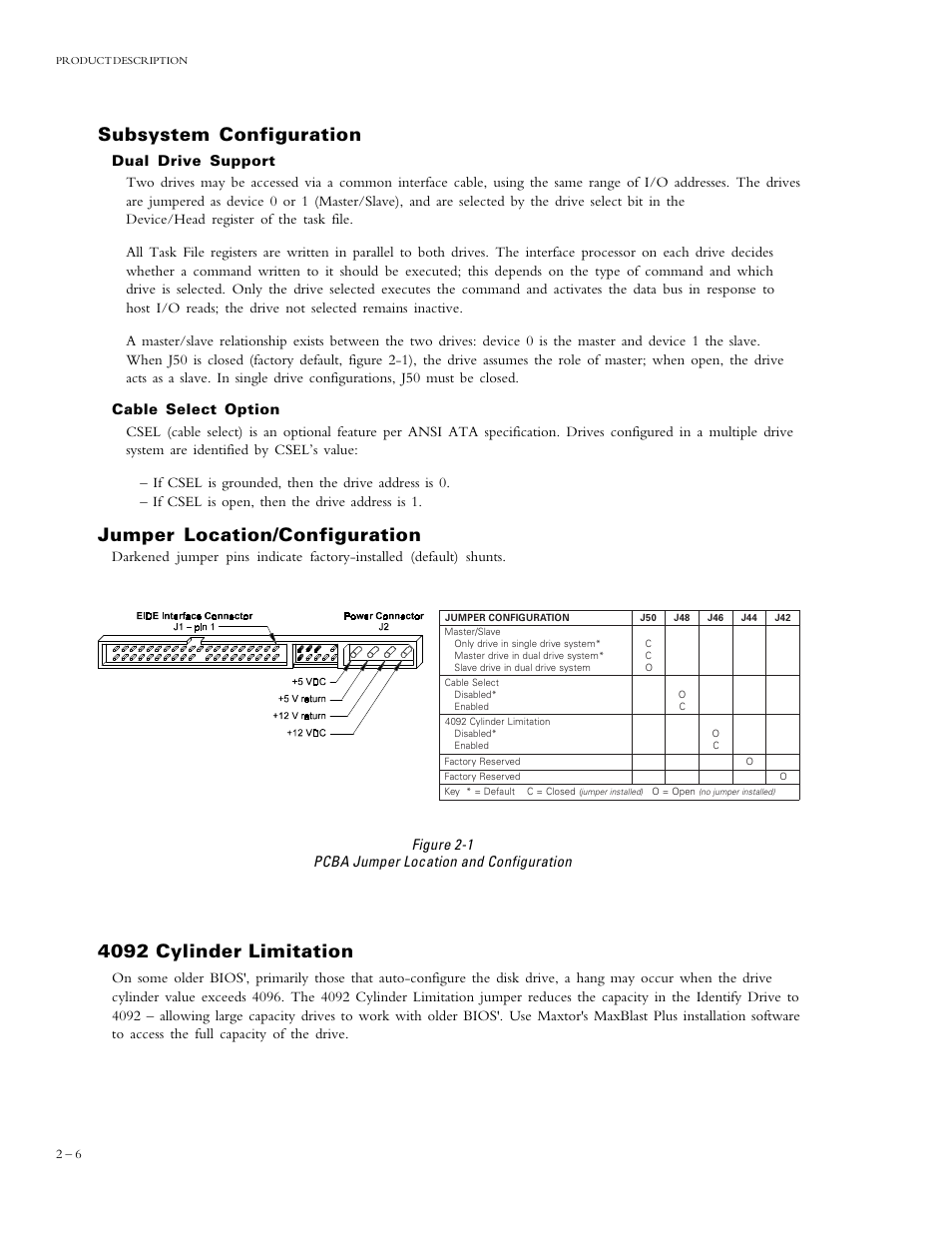

Page 11: Figure 2-1 pcba jumper location and configuration

Text mode
Original mode

4092 cylinder limitation, Subsystem configuration, Jumper location/configuration | Figure 2-1 pcba jumper location and configuration | Maxtor DIAMONDMAX 90840D7 User Manual | Page 11 / 26
