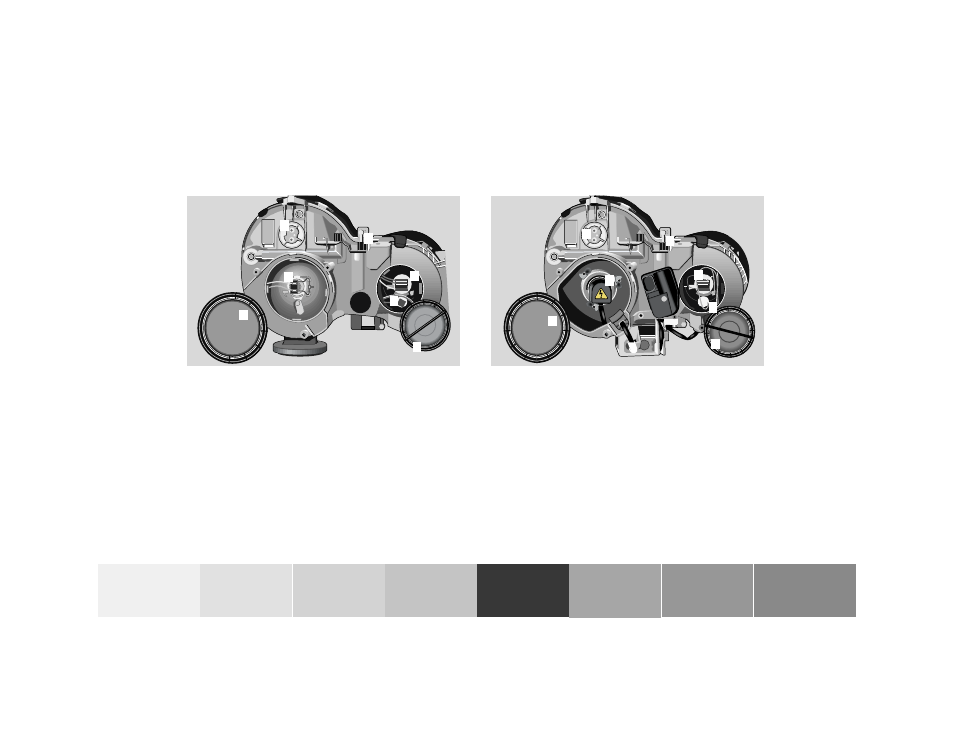

Headlamp assembly (Halogen)
1 Headlamp vertical adjustment screw
2 Cover for low beam headlamp
3 Cover for high beam headlamp, parking and
standing lamp
Headlamp assembly (Xenon)
4 Bulb socket for turn signal lamp
5 Electrical connector for low beam headlamp bulb
6 Electrical connector for high beam headlamp bulb
7 Bulb socket for parking and standing lamp
