OM-4415 Page 15

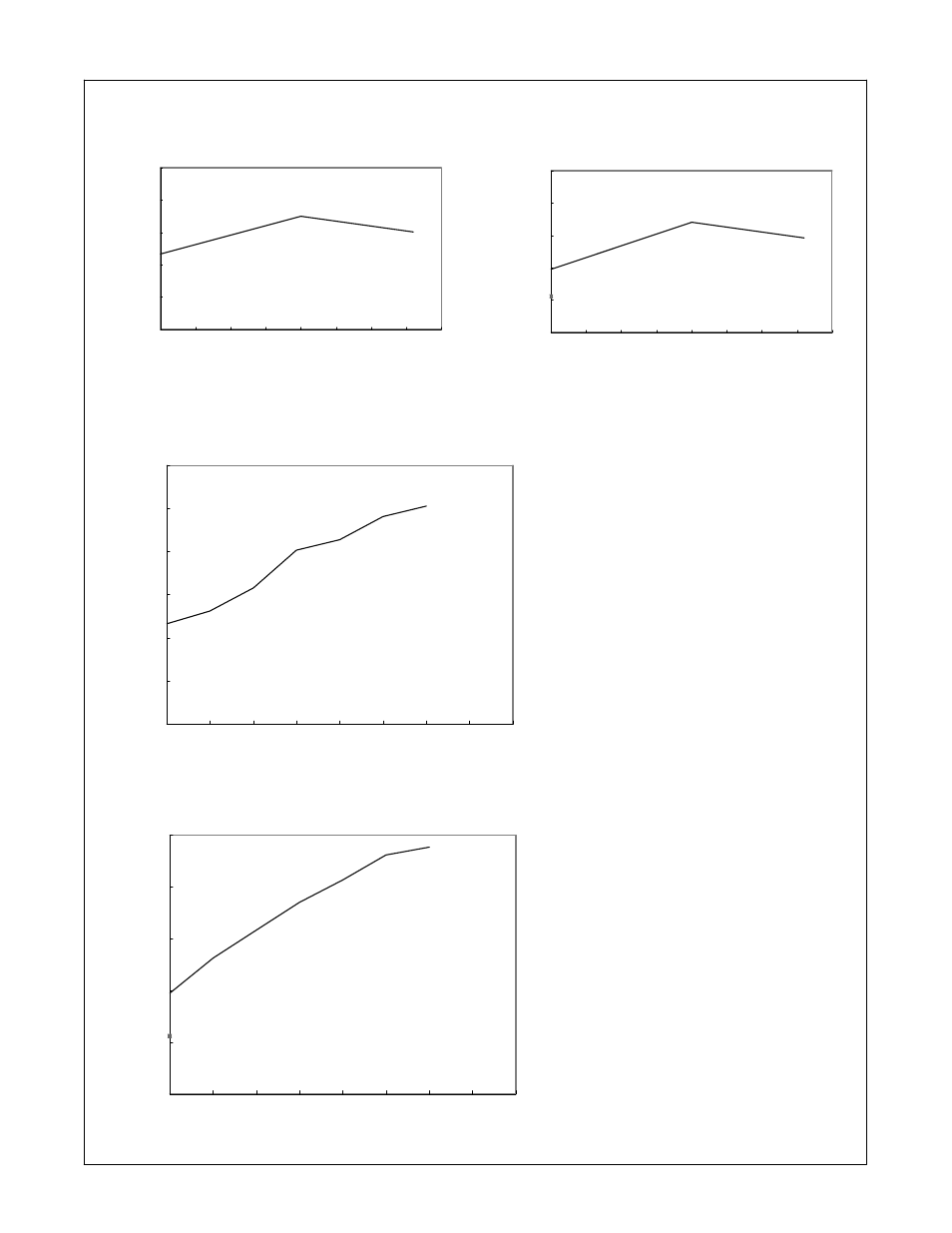

4-5. Fuel Consumption Curves
U.S.
Gal./Hr
.
DC Weld Amperes At Rated Duty Cycle
0 25 50 75 100 125 150 175 200
0.00
0.20
0.40
0.60
0.80
1.00
U.S. Gal./Hr
.
Aux Power kW At 100% Duty Cycle
0 1 2 3 4 5 6 7 8
0.00
0.20
0.40
0.60
0.80
1.00
1.20
U.S. Gal./Hr
.
0.00
0.20
0.40
0.60
0.80
1.00
DC Weld Amperes At Rated Duty Cycle
0 25 50 75 100 125 150 175 200
Idle
U.S. Gal./Hr
.
Aux Power kW At 100% Duty Cycle
0 1 2 3 4 5 6 7 8
0.00
0.20
0.40
0.60
0.80
1.00
Idle
A. Weld Output Standard
Model (Honda Engine)
B. Weld Output DX Model
(Kohler Engine)
C. Auxiliary Power Standard
Model (Honda Engine)
D. Auxiliary Power DX Model
(Kohler Engine)
220 638−A / 220 639−A
