English – NEC MultiSync LCD1760VM User Manual
Page 8
English
English-7
NOTE:
This LCD monitor is designed for use with a flexible arm. Please use the attached screws (4pcs) when mounting.
To meet the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability
under consideration of the weight of the monitor. The LCD monitor shall only be used with an approved arm (e.g.
GS mark).
4 SCREWS
(MAX depth: 8.5 mm)
If use other screw,
check depth of hole.
Weight of LCD assembly: 4.7kg (MAX)
Replace screws
Tighten all screws
Thickness of bracket (arm)
2.0 ~ 3.2 mm
100 mm
100 mm

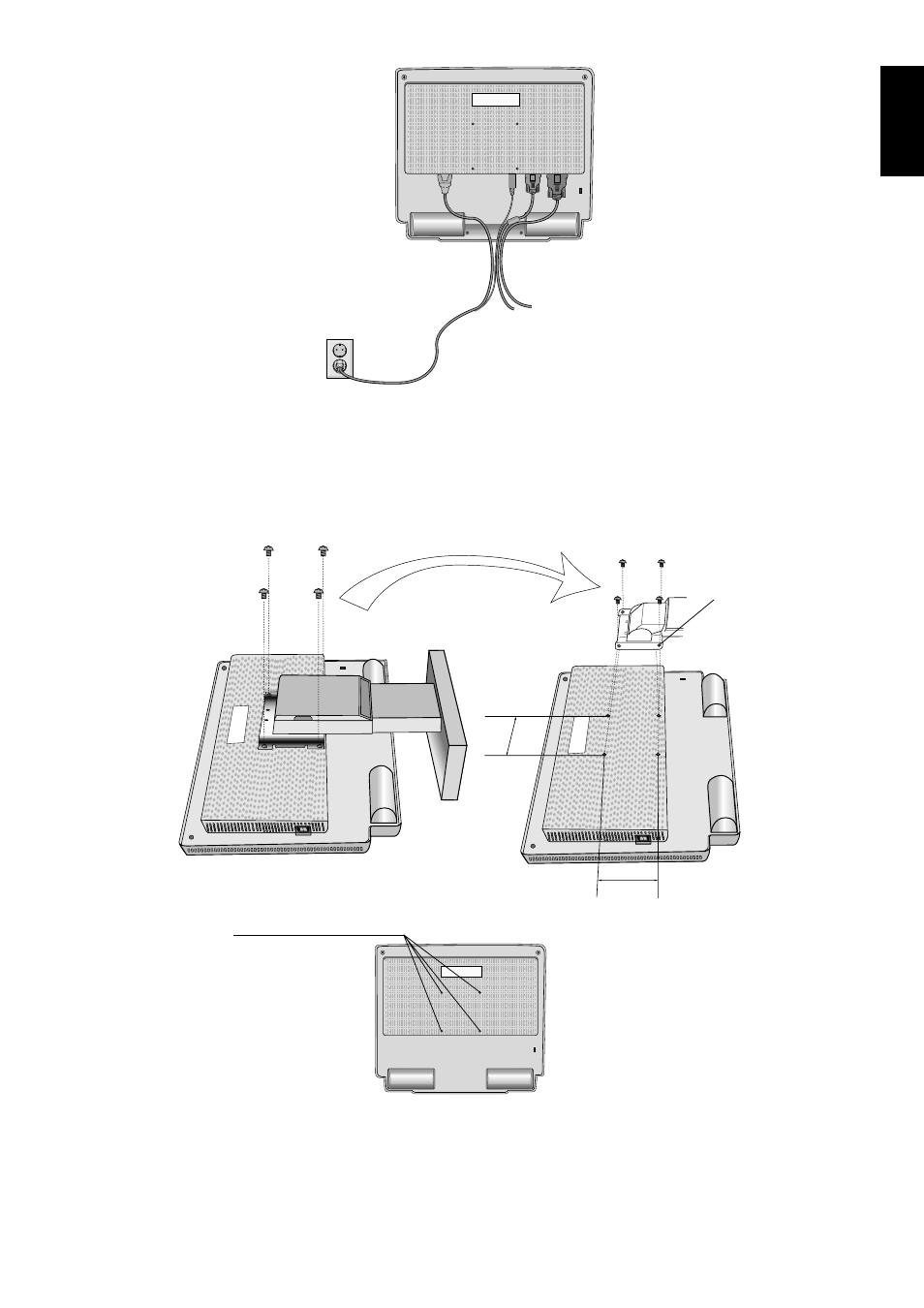

Figure R.4
