THE UMS-SM U-BRACKET
The UMS-SM U-bracket mounts a single UMS-SM sub-
woofer on walls and ceilings. The U-bracket has two sets of
attachment points that determine how closely the UMS-SM
is mounted to the surface. The subwoofer can also be tilted
as necessary to affect coverage.
The U-bracket is factory installed with the UMS-SM and
attached to its end plates with two M10, 25 mm knobs and
two neoprene washers (placed between the subwoofer’s
end plates and the U-bracket).
UMS-SM U-Bracket Load Ratings
The UMS-SM U-bracket has four 1/4” corner mounting
holes for attaching the bracket to mounting surfaces.
The load rating for the U-bracket’s mounting holes, when
suspending a single UMS-SM subwoofer, is as follows:
■ 1 UMS-SM (load evenly distributed) at a 7:1 safety rating
ABOUT THIS ADDENDUM
Information and specifications are subject to change.
Updates and supplementary information are available on the
Meyer Sound website:
http://www.meyersound.com
Meyer Sound Technical Support is available at:
■ Tel: +1 510 486.1166
■ Fax: +1 510 486.8356
■ Email: [email protected]

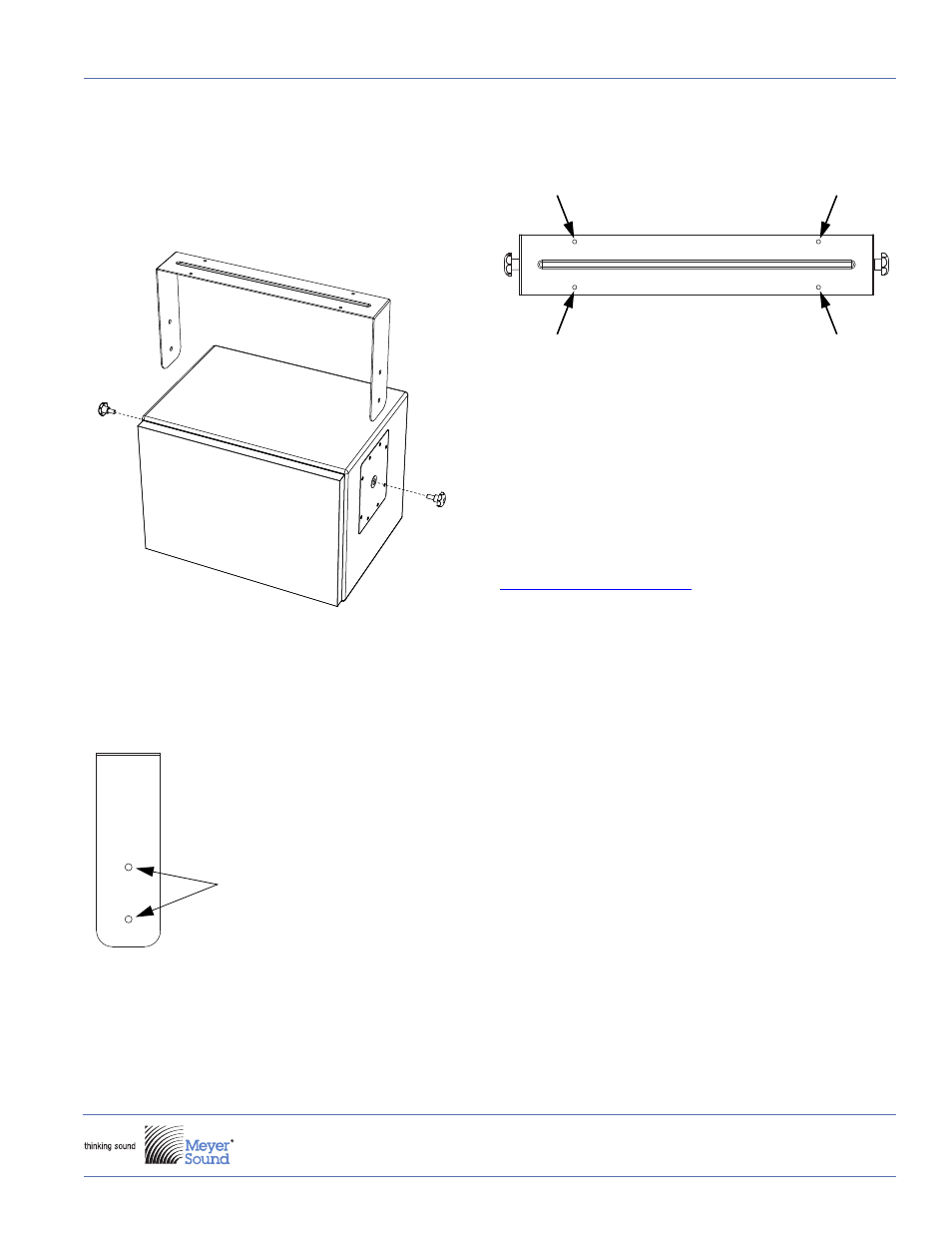

UMS-SM U-Bracket Exploded View
UMS-SM U-Bracket Side Attachment Points
Attach UMS-SM to either
of these two points
UMS-SM U-Bracket Mounting Holes
