30

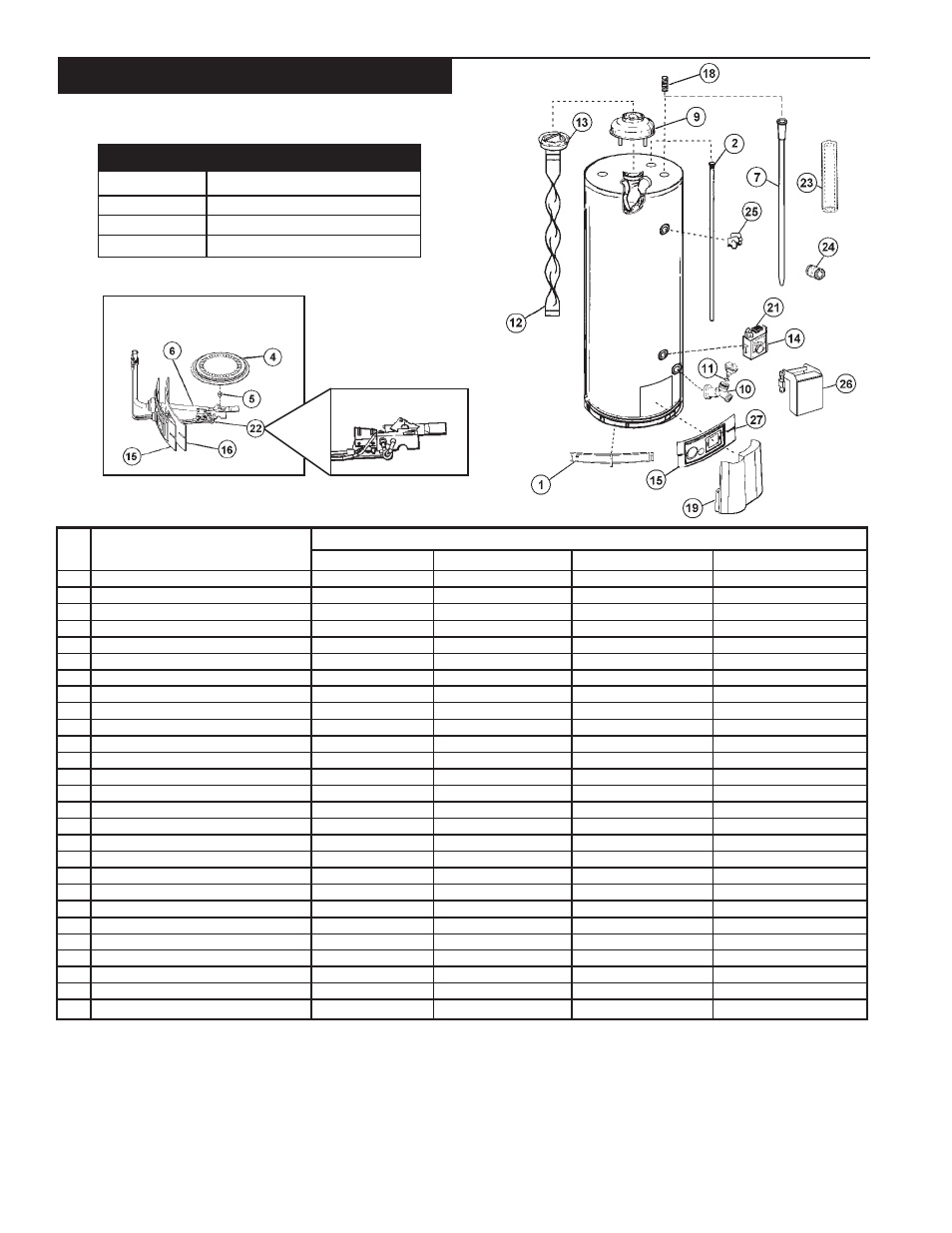

Key Model Numbers
No. Part Description HR650YRRT HR650HRRT HR650YRRT5 HR650HRRT5
1 Air Intake Screen 66001503 66001503 66001503 66001503
2 Anode Rod 66001763 66001763 66001763 66001763
3 Burner Assembly 66001493 66001556 66001782 66001786
4 Burner Head** 66001510 66001570 66001510 66001570
5 Burner Orifice** 66001778 66001571 66001824 66001787
6 Burner Tube** 66001495 66001521 66001784 66001788
7 Dip Tube/Inlet Tube 66001779 66001779 66001306 66001306
*8 Dip Tube/Inlet Tube Gasket 66001812 66001812 66001812 66001812
9 Draft Hood 66001780 66001780 66001785 66001785
10 Drain Valve 66001016 66001016 66001016 66001016
11 Drain Valve Washer 66001021 66001021 66001021 66001021
12 Flue Baffle 66001542 66001542 66001542 66001542
13 Flue Restrictor 66001652 66001652 66001652 66001652
14 Gas Control Valve 66001504 66001505 66001575 66001576
15 Inner Door** 66001498 66001498 66001498 66001498
16 Inner Door Gasket 66001500 66001500 66001500 66001500
*17 Instruction Manual 184384-002 184384-002 184384-002 184384-002
18 Nipples w/Heat Traps 66001705 66001705 66001705 66001705
19 Outer Door 66001506 66001506 66001506 66001506
*20 Outer Door Filler NA NA NA NA
21 Piezo Igniter w/Bracket 66001507 66001507 66001507 66001507
22 Pilot Assembly** 66001541 66001552 66001541 66001516
23 Pipe Insulation 66001708 66001708 66001708 66001708
24 T & P Insulation NA NA NA NA
25 Temperature-Pressure Relief Valve 66001079 66001079 66001079 66001079
26 Thermostat Shield (Optional) 66001667 66001667 66001667 66001667
27 Viewport Assembly 66001509 66001509 66001509 66001509
MAYTAG GAS WATER HEATERS
REPAIR PARTS LIST
BURNER ASSEMBLY
Now that you have purchased this gas water heater, should a need
ever exist for repair parts or service, simply call Maytag Customer
Service at 1-800-788-8899 for an authorized servicer. Be sure to
provide all pertinent facts when you call or visit.
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
The model number of this gas water heater will be found on the model
rating plate located near the gas control valve.
When ordering repair parts, always give the following information:
• Model Number
• Serial Number
• Part Description
• Part Number
PILOT ASSEMBLY
MODEL NO’S
HR650YRRT 50 Gallon Natural Gas
HR650HRRT 50 Gallon Propane (L.P.)
HR650YRRT5 50 Gallon Natural Gas
HR650HRRT5 50 Gallon Propane Gas (L.P.)
* Not Shown. ** Includes Inner Door Gasket.
