Master Bilt BHC Series BHC-27E - Manual (Page 2)

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
BHC SERIES
BOTTOM MOUNTED ICE CREAM HARDENING AND HOLDING
CABINETS
TECHNICAL SPECIFICATIONS
LISTINGS HOOKUP
BID SPECIFICATIONS
Item no. BHC-_______________
Provide_______________( ) Ice Cream
Hardening and Holding Cabinet(s), Master-
Bilt model no. BHC-___________.
Cabinet will feature textured finish on
interior and exterior and will be equipped
with an electronically controlled monitor-
ing system. It will also be provided with
four welded wire, white epoxy-coated
1312-3/11-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
BHC-27: Via plug in, 9 foot long flexible three
wire 14/3 cord with molded plug.
Other models: Via plug in, 9 foot long flex-
ible three wire 14/3 cord with molded plug.

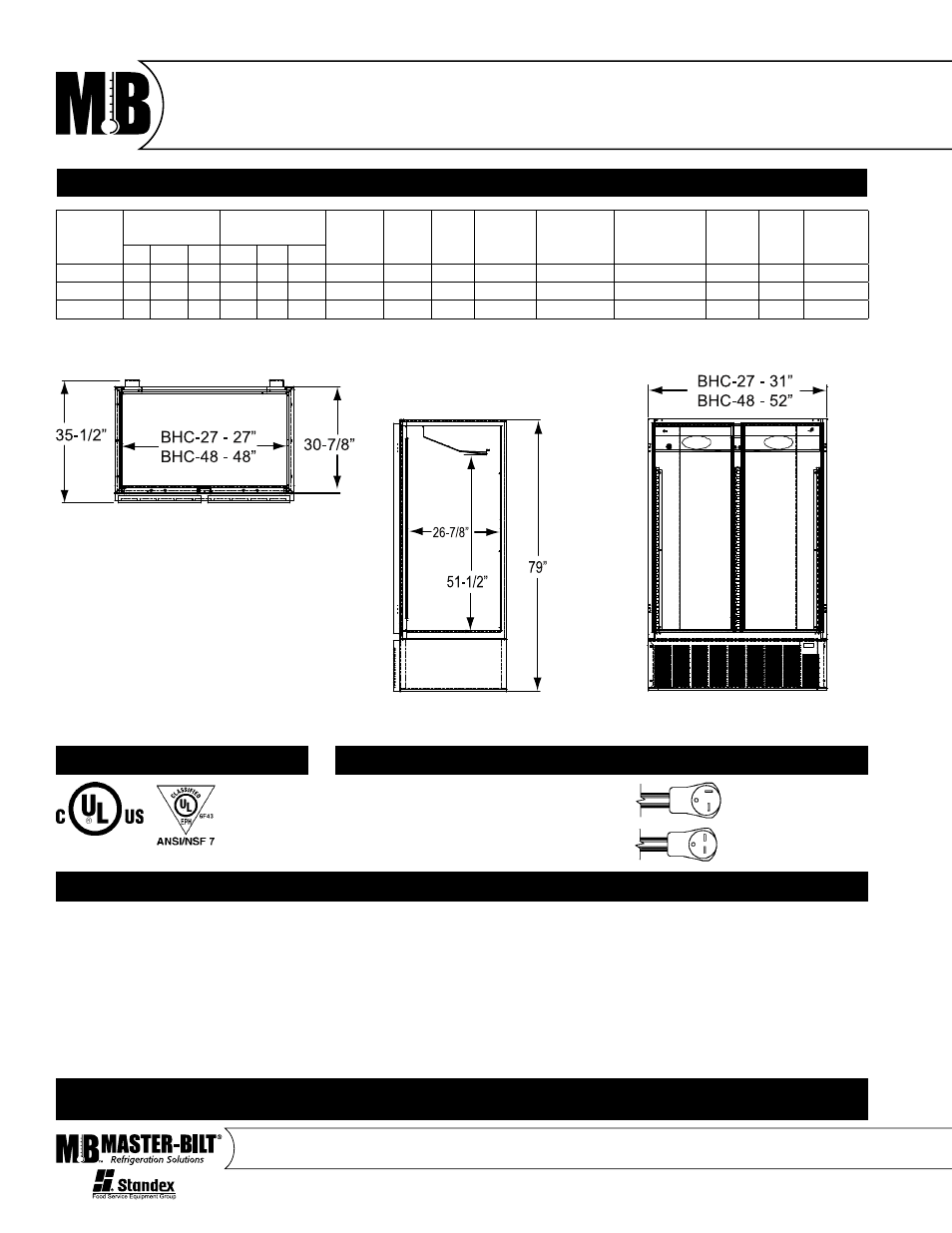

PLAN VIEW SIDE VIEW ELEVATION VIEW
shelves and white finish on interior and ex-
terior. Cabinet also to have 2" thick foamed-
in-place “zero ODP” urethane insulated
walls and 2" thick, self-closing, foamed-in-
place doors.
The refrigeration system is to be bottom
mounted, self-contained and use R-404A re-
frigerant. System will also be equipped with
a low-maintenance bare tube condenser
coil. The temperature range will be 15° to
-20°F (9° to -29°C).
Cabinet to have standard limited three
year extended compressor warranty and two
year limited parts and labor warranty.
Cabinet to be UL and C-UL listed and UL
EPH classified.
NEMA 6-15P (BHC-27E
and BHC-48E)
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS* AMPS
UNIT
H.P.
NO. OF
SHELVES
STANDARD
SHELF SIZE
(in inches)
USABLE
INTERIOR CAP.
CU. FT.
CAP.
3 GAL.
CANS
SHIP
CU.
FT.
SHIP
WT.
LB/KG L D H L D H
BHC-27 31 36 1 /
2
79 787 927 2007 115 12.0 3/4 4 22 x 23 20.5 24 79.0 630/286
BHC-27E** 31 36 1 /
2
79 787 927 2007 230** 6.0 3/4 4 22 x 23 20.5 24 79.0 630/286
BHC-48E** 52 36 1 /
2
79 1321 927 2007 230** 9.0 2 8 22 x 23 36.5 48 117.0 880/400
*BHC models operate on a minimum of 208 volts. A voltage boosting transformer (part no. 39-01087) must be used when the supply volt-
age is less than 208 volts. **230 volt models operate on 208-230/60/1 and also on 220/50/1.
NEMA 5-20P (BHC-27)
