Micro Technic Micronix PC/104 PV-1075-CAR User Manual
Page 5
Users Manual & Installation Guide
PV- 1075: N
I
MH
BATTERY PACK WITH CHARGER
Page 5 of 9
Description
Micronix PV-1075 is a back-up module with Nickel-Metal-Hydride batteries and integrated
charger. PV-1075 is designed to support the Micronix PV-5127, a high power PC/104 UPS power
supply.
Micronix PV-1075 is a high capacity battery pack for your PC/104 system. An integrated timer
controls the charging modes: standard charge and trickle charge. This timer also has the purpose to
avoid overcharging.
PV-1075 will withstand extended temperatures and the shock and vibration of mobile equipment.
PV-1075-CAR is a special version which can be used in mobile application. This version can be
operated from a 12V car battery.

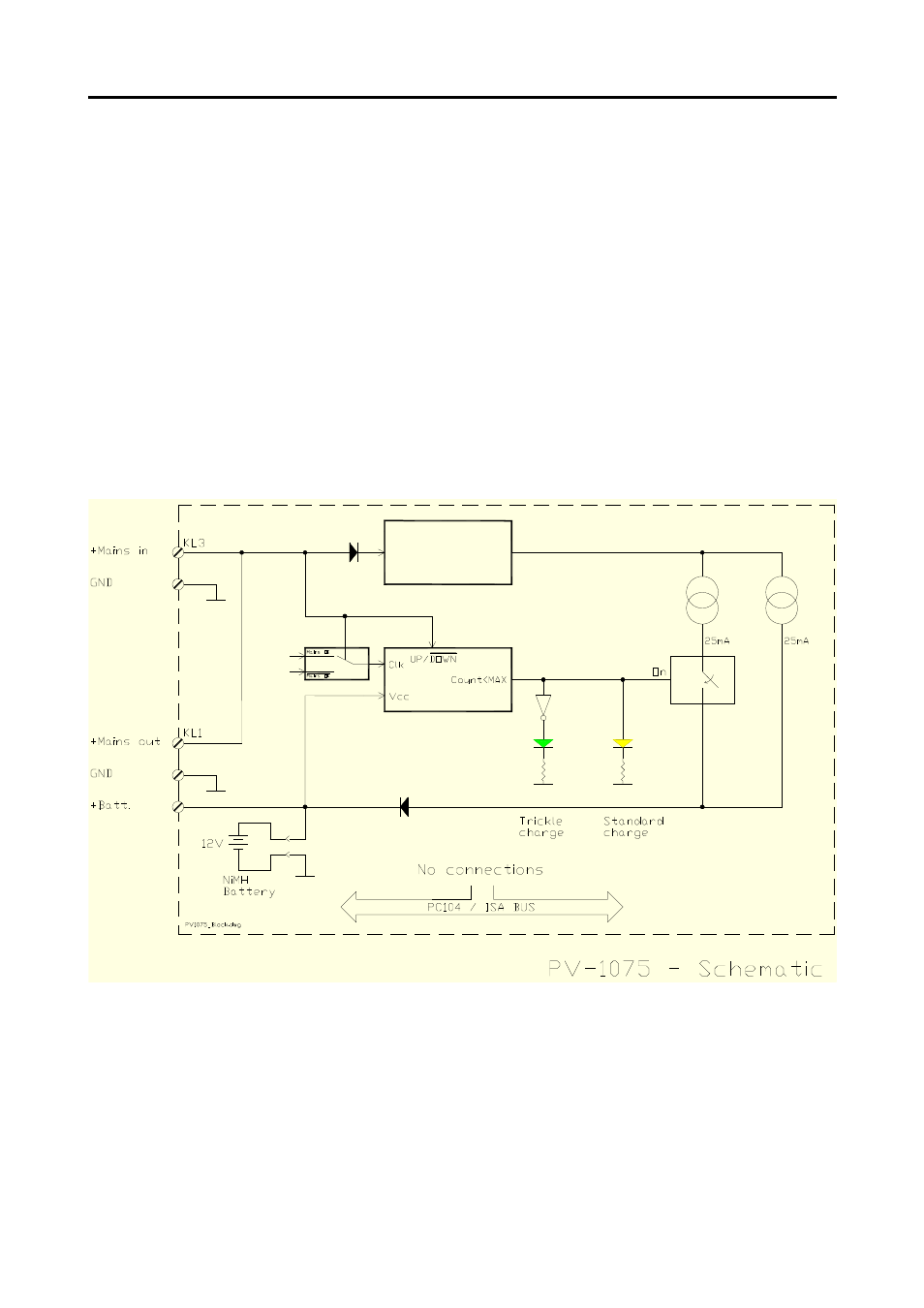

Block Diagram
Micronix PV-1075 is a PC/104 module that contains a NiMH battery pack, a timer controlled
charger and four connectors.
The battery pack is secured to the PCB by a fastener and electrically connected to the PCB by a two
pole connector. The battery is equipped with a polymer fuse that will disconnect the battery in case
the battery temperature becomes too high.
