8

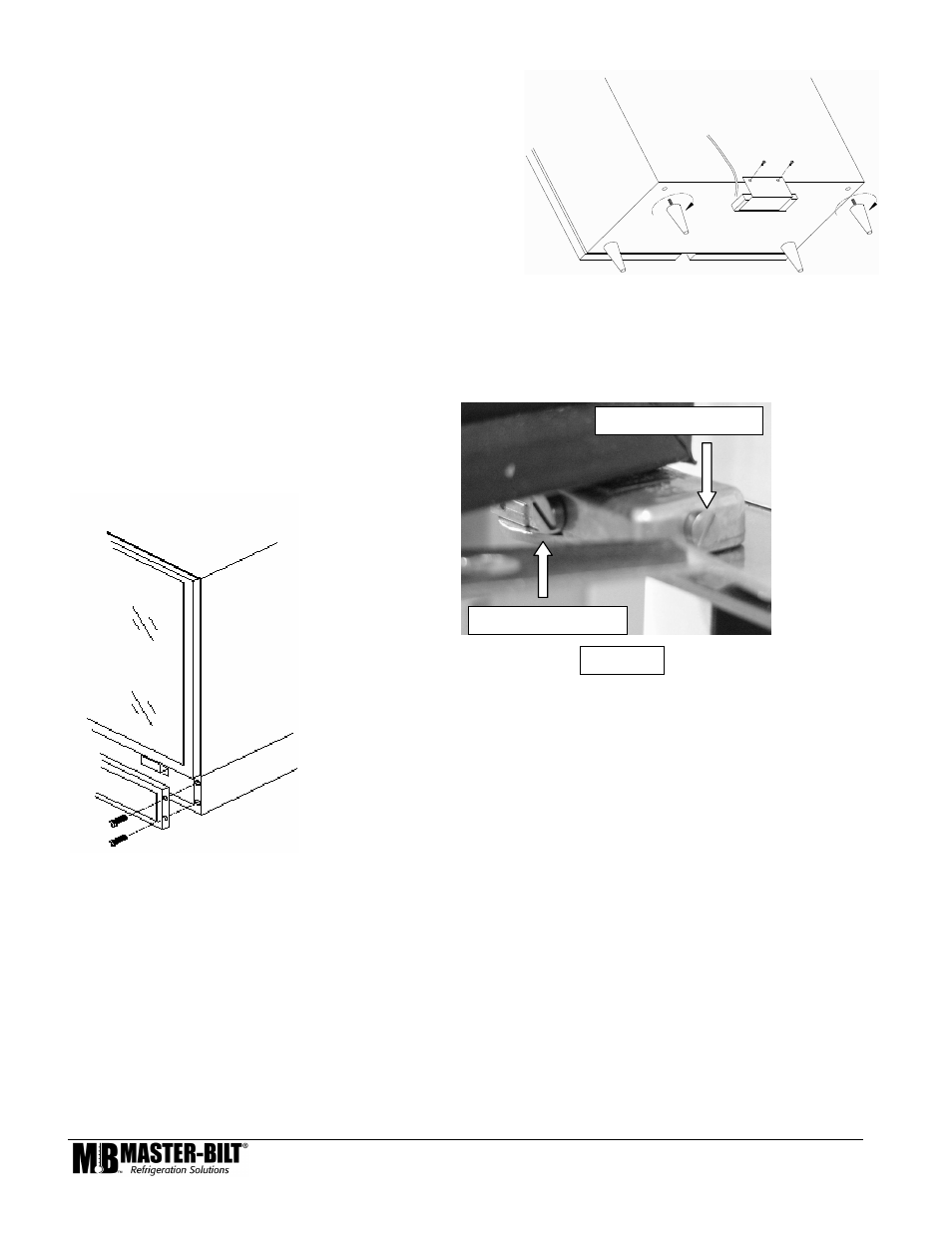

LEG AND CONDENSATE PAN INSTALLATION FOR TOP
MOUNT CABINETS ONLY
1. Screw legs into existing crate mounting
holes.
2. Mount pan and bracket assembly to rear
of cabinet with 2 large sheet metal screws
(supplied). Be sure pan is located directly
under cabinet drain
DOORS
The BMG/TMG cabinets have Anthony glass doors
that are equipped with a patented TorqueMaster
hinge system. The doors are easily adjusted using
a flathead screwdriver (Fig.3).
Figure 4
GRILL
To remove the door shipping clamps,remove the 4 shipping screws from the grill and remove the screws from the
clamps (Fig.4), and replace grill.
Torque Adjustment
Leveling Adjustment
Figure 3
