OM-202 515 Page 16

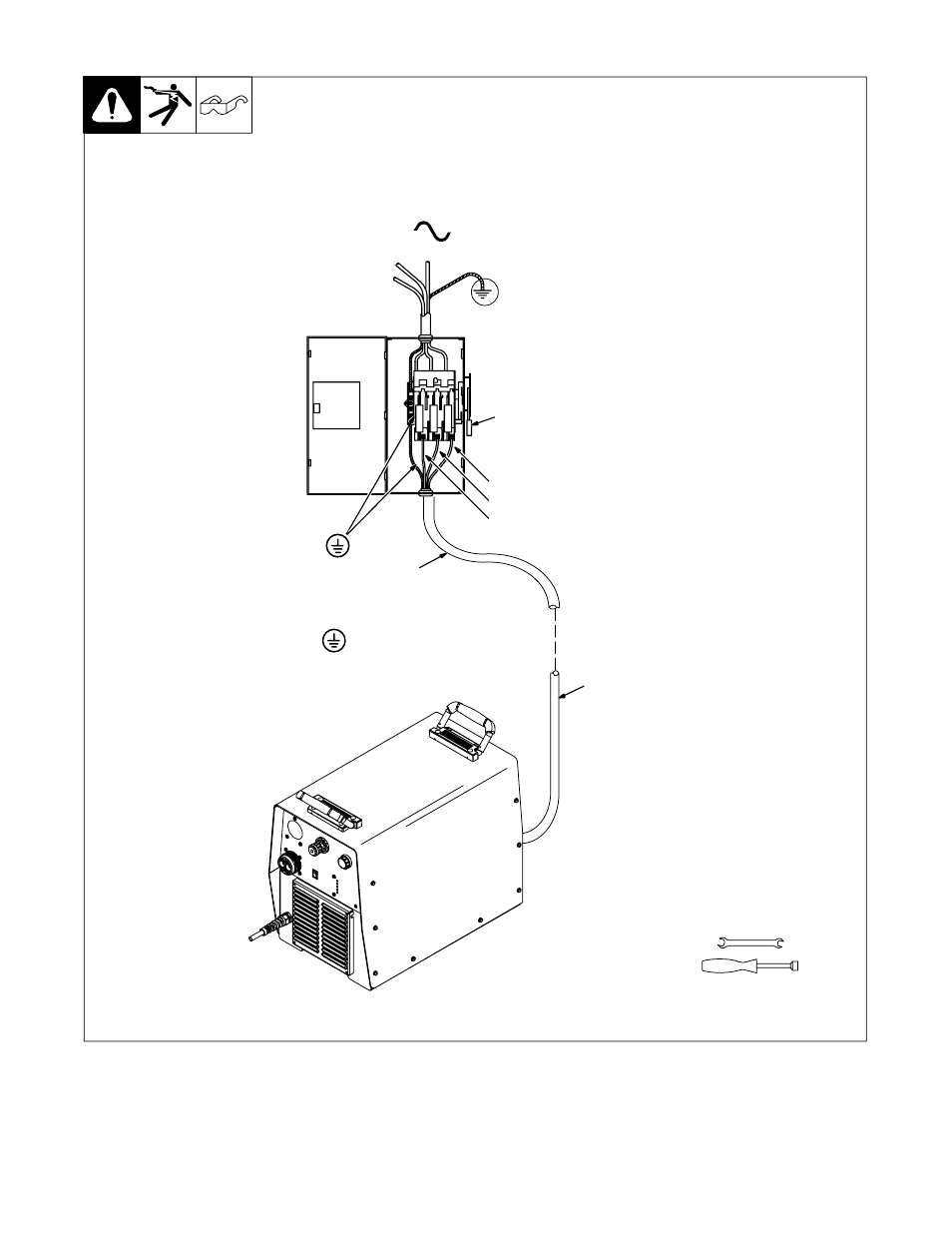

4-7. Connecting Input Power
L1
input_2 3/96 - Ref. 144 221 / Ref. 070 399-C / 802 140
Check input voltage available at
site.
1
Input And Grounding
Conductors
2 Line Disconnect Device
See Section 4-6.
Y Always connect green wire
to supply grounding termi-
nal, never to a line terminal.
Connect black, brown, and
blue wires (L1, L2, L3) to line
terminals.
3/8 in
3/8 in
2
1
1
L2
L3
Y Always connect grounding
conductor first.
3
= GND/PE
Tools Needed:
Green/Yellow
