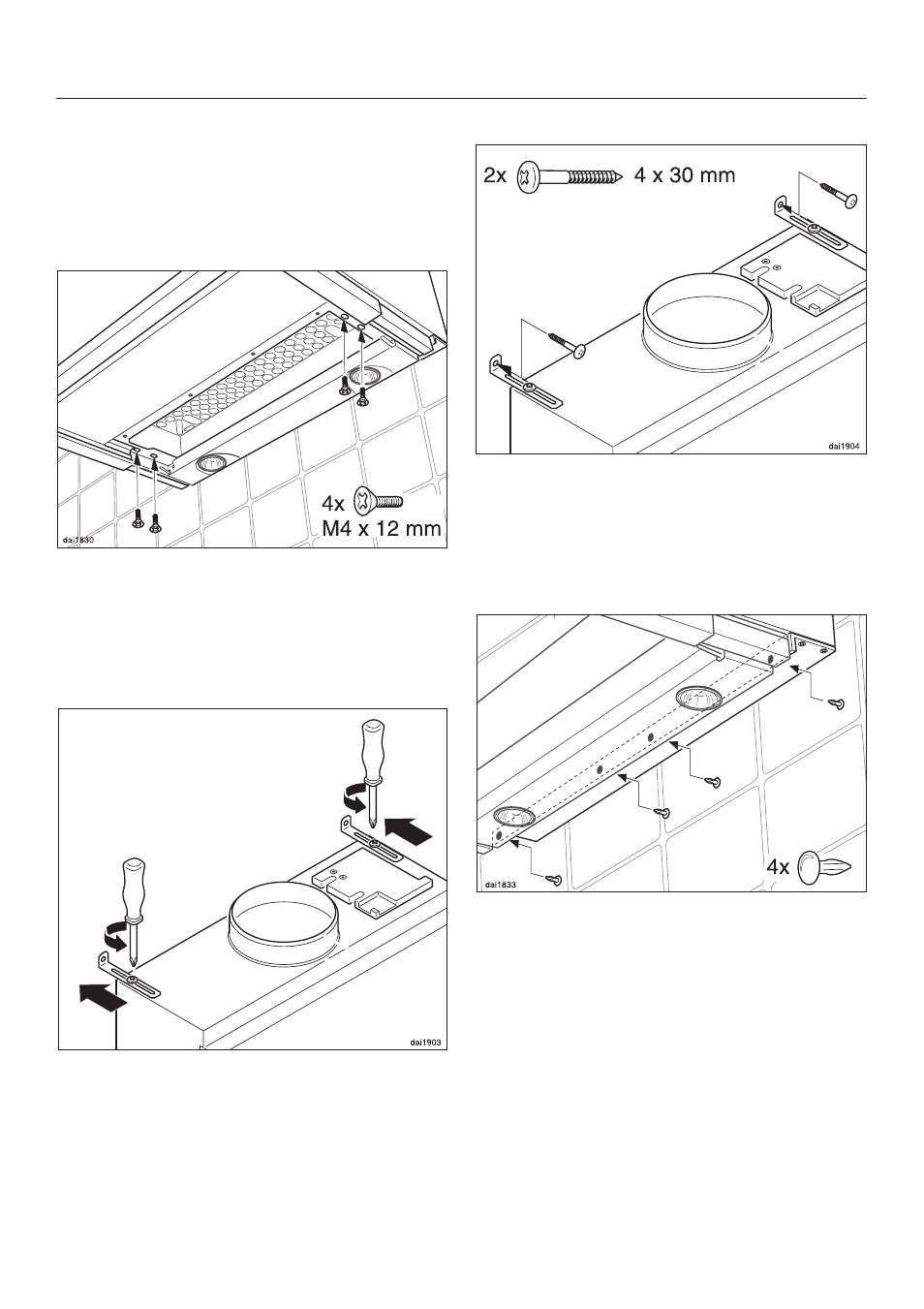

4. Secure the appliance
^ Push the hood back so it sits flush
with the front of the spacer strip.
^ Pull the deflector out.
^ Screw the hood, with 4 screws, onto
the runners.
^ Remove the installation protection
between the deflector and casing.
^ Loosen the screws of the fixing
brackets on the hood top.
^ Push the bracket flush to the wall or
the cabinet back wall.
^ Drill respective holes and screw the
fixing brackets to the wall or the
cabinet rear wall.
^ Tighten the screws to the casing.
^ Connect the space bar from the rear
with 4 plastic rivets at the hood rear
side.
Installation
30
