Wherever possible, connect all of your
equipment to the same electrical circuit.
This will help reduce the possibility of a
ground loop problem causing an annoying
hum in your speakers.
Low power components such as tape
decks, mixers, effects processors and CD
players should be connected to the same
outlet as the SRM350s. Use fused power

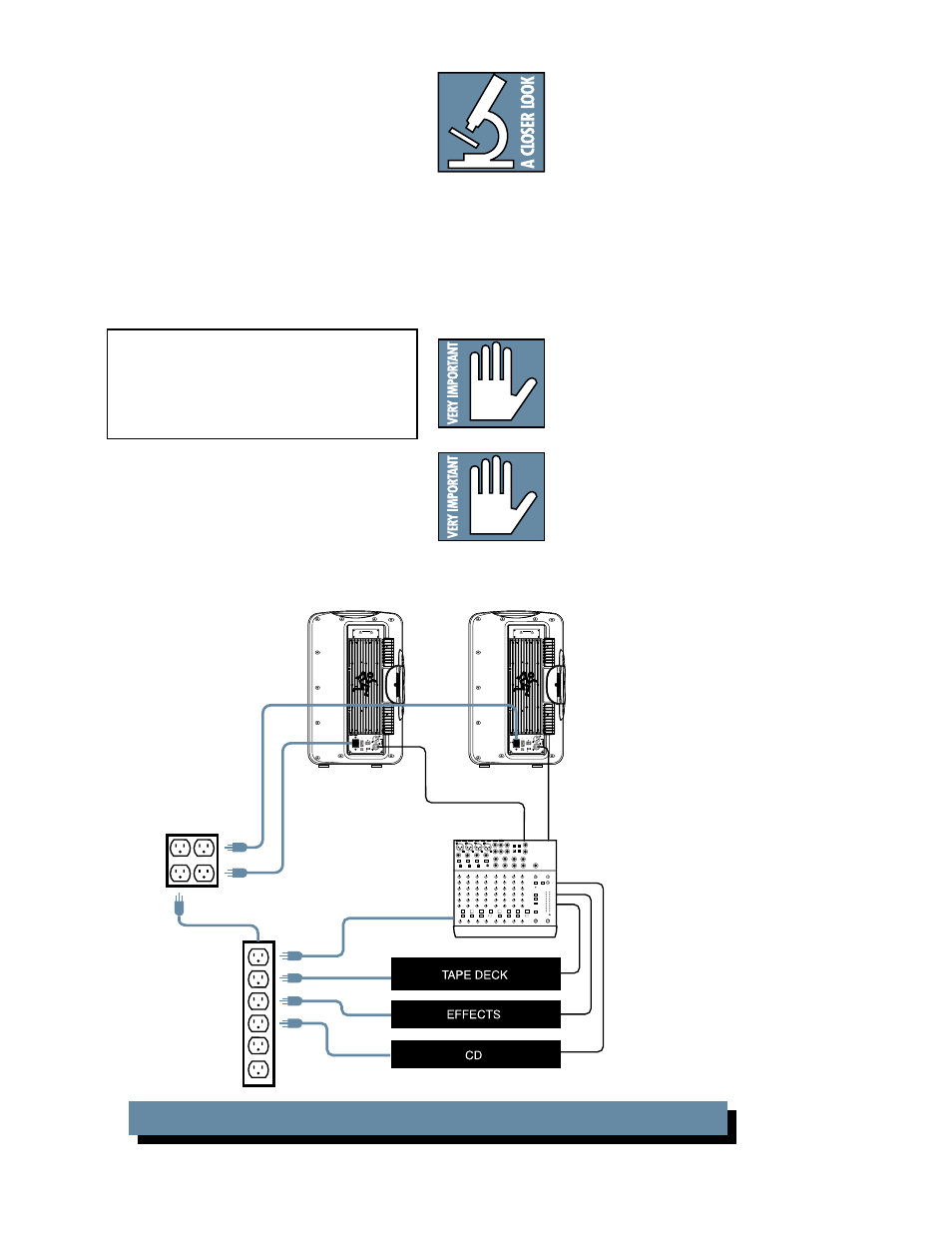

strips as shown in the diagram below. Make
sure that the total current draw of your
components does not exceed the capability
of the outlets and power strips.
For the US 120 V model:
A maximum of five SRM350s can be
connected per 15A service.
This allows each SRM350 to be safely
operated at its maximum level.
When turning your system on, turn on
the SRM350s last. This will stop any turn-
on thumps and bangs from your source
equipment being amplified.
When turning off your system, turn off
the SRM350s first. This will prevent any
turn-off thumps and bangs from your
source equipment being amplified.
INPUT
THRU PARALLEL
LINE
MIC ~120 VAC 60Hz 2.50A 230VA
POWER
DESIGNED BY MACKOIDS IN WOODINVILLE, WA, USA AND REGGIO EMILIA, ITALY.
LIMIT SIGNAL
12k/AIR 100Hz CONTOUR (+3dB)
ACTIVE SOUND REINFORCEMENT SYSTEM
ON
SRM350
RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
C A U T I O N
LEVEL O O
MI C GAIN
+45
+5dB
NORMAL
INPUT
THRU PARALLEL
LINE
MIC ~120 VAC 60Hz 2.50A 230VA
POWER
DESIGNED BY MACKOIDS IN WOODINVILLE, WA, USA AND REGGIO EMILIA, ITALY.
LIMIT SIGNAL
12k/AIR 100Hz CONTOUR (+3dB)
ACTIVE SOUND REINFORCEMENT SYSTEM
ON
SRM350
RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
C A U T I O N
LEVEL O O
MI C GAIN
+45
+5dB
NORMAL
When setting up for a
show, often you are plug-
ging into an AC power
distribution system you
know nothing about. You
may even be faced with
2-wire outlets that are missing the third
safety ground pin. It’s a good idea to have a
three-wire AC outlet tester in your toolbox
so you can check the outlets yourself to
make sure they are wired correctly. These
testers will tell you if the polarity of the hot
and neutral wires is reversed and if the
safety ground is disconnected.
Don’t use an outlet if it is
wired improperly! This is
to protect yourself as well
as your equipment.
Never remove the ground
pin on the power cord of
the SRM350 or any other
component. This is very
dangerous.
SRM350: AC CONNECTIONS
