Murray 22" Front Drive - Manual (Page 25)

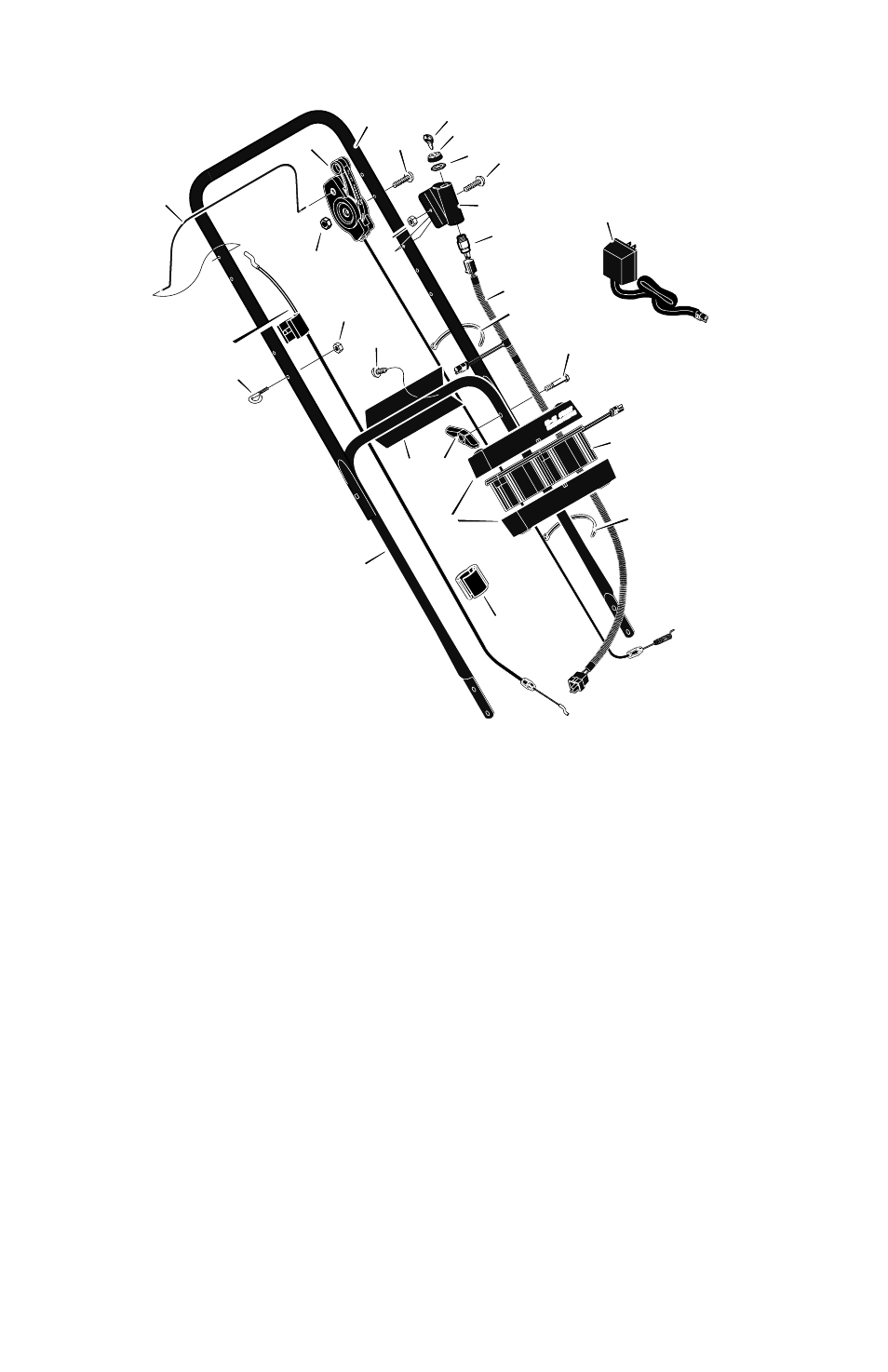

HANDLE - ELECTRIC-START MODELS
25
F-050442L
1
2
3 4
8
9
11
11
12
13
27
17
18 19
20
21
22
23
24
25
26
10
5
16
5
6
5
KEY
NO.
DESCRIPTION PART NO.
KEY
NO.
DESCRIPTION PART NO.
1 Handle, Upper (Black)
Handle, Upper (Gray) 1101557E701
1101557E724
2 Handle, Lower (Black)
Handle, Lower (Gray) 1102090E701
1102090E724
3 Bolt 025x14
4 Control, Drive 1101670
5 Locknut 15x116
6 Cable, Stop *
Cable, Stop #
Cable, Stop + 1101365
1101366
1101365
8 Lever, Stop 1101076E701
9 Fastener, Cable 1101353
10 Screw 26x220
11 Tie, Cable 071372
12 Bolt 002x77
13 Knob 071294
16 Guide, Rope 071530
17 Cap 091488
18 Nut 091489
19 Bolt 3x136
20 Cover, Ignition 671916
21 Switch Ignition & Key 776011
22 Charger, Battery 671992
23 Harness, Wiring 776012
24 Battery 776014
25 Case, Battery 776013
26 Bracket, Battery 671959
27 Key, Ignition 672220
* Used on Briggs & Stratton Quantium engines.
# Used on Tecumseh engines..
+ Used on Briggs & Stratton Classic, Sprint & Quattro, Q−Style and QS−Style engines.
