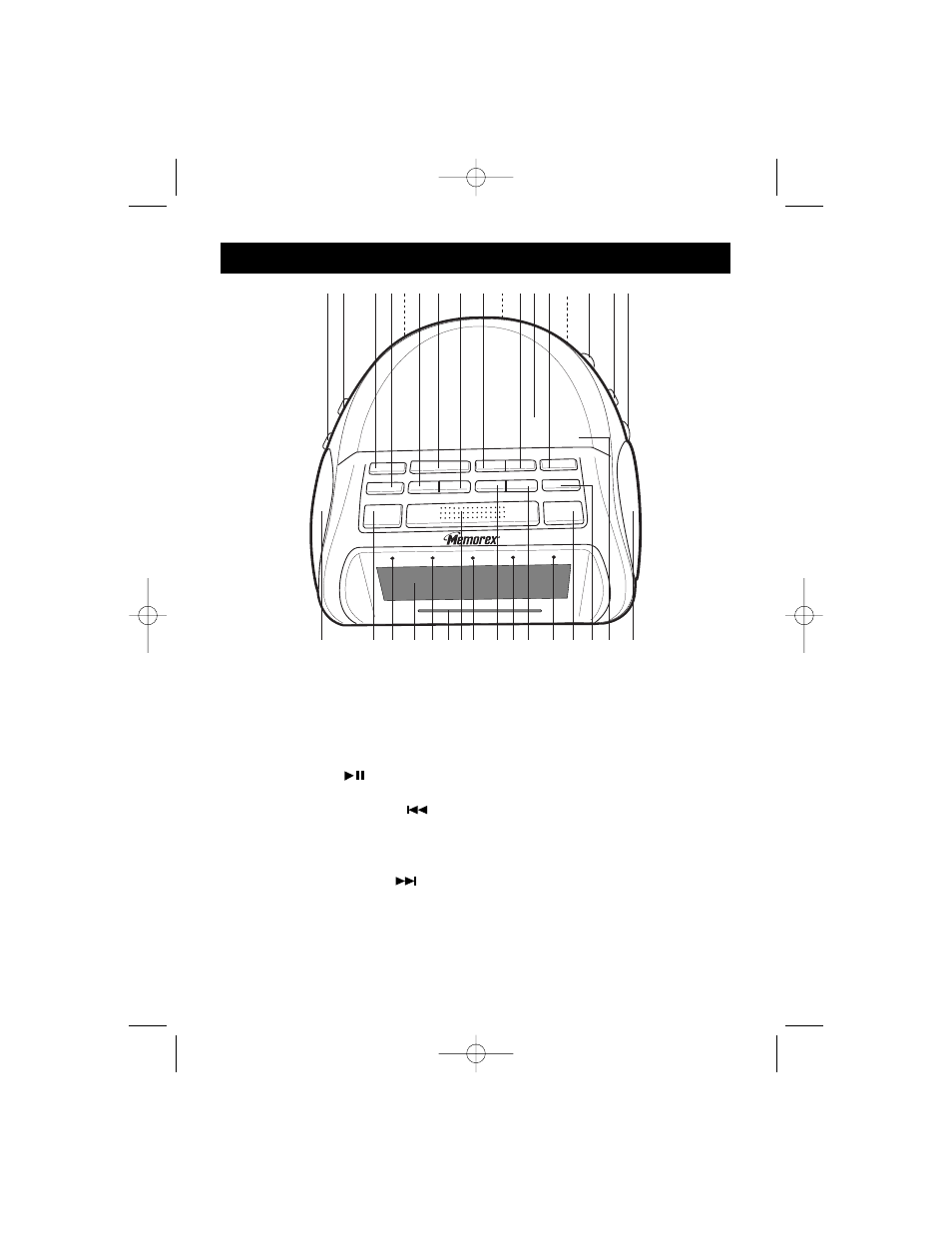

LOCATION OF CONTROLS
3 4 6 7 8 11 9 10 5 13 12 14 15 16 17 2 1
20 19 18 21 33 31 32 2324 26 30 28 22 25 27 29
1. Alarm (1/1+2/2) Switch
2. ALARM MODE Switch
3. STOP (■) Button
4. PROGRAM Button
5. AC Cord (Rear of Unit)
6. REPEAT Button
7. PLAY/PAUSE ( ) Button
8. RANDOM Button
9. SKIP/SEARCH/MINUTE ( )
Button
10. Battery Compartment (Bottom of
Unit)
11. SKIP/SEARCH/HOUR ( ) Button
12. CD Compartment
13. CD Door OPEN Button
14. FM Antenna Wire
15. VOLUME Control
16. FUNCTION (CD/FM/AM) Switch
17. TUNING Control
18. Left Speaker
19. SLEEP Button
20. POWER Indicator
21. Display
22. PROGRAM Indicator
23. AM/FM Dial Scale and Pointer
24. SNOOZE Button
25. RANDOM Indicator
26. ALARM 1 Button
27. REPEAT Indicator
28. ALARM 2 Button
29. FM STEREO Indicator
30. POWER Button
31. TIME Button
32. CD Door CLOSE Area
33. Right Speaker
