REPLACEMENT PARTS ARE AVAILABLE THROUGH YOUR RETAILER.

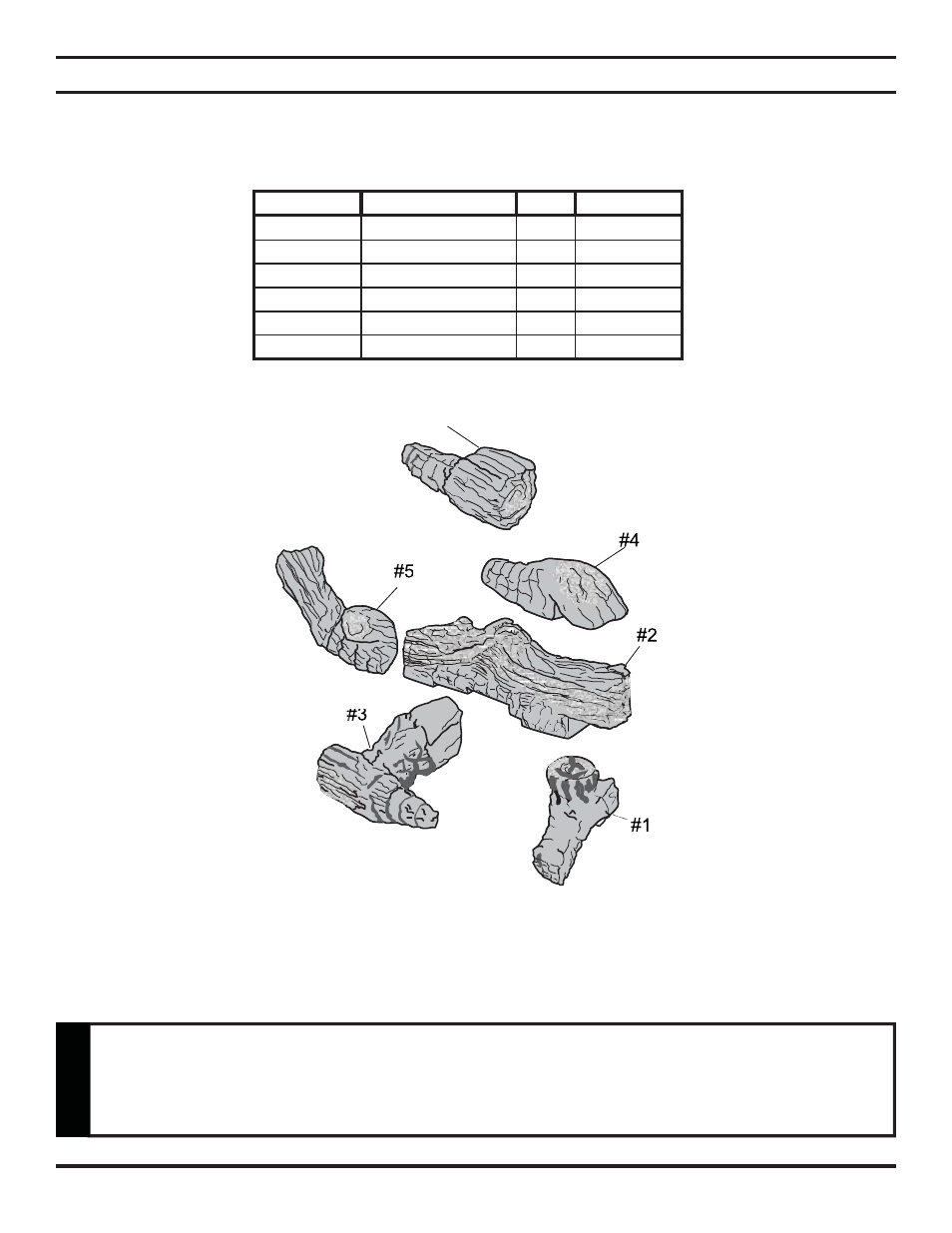

ILLUSTRATED PARTS BREAKDOWN
Failure to position the parts in accordance with these diagrams or failure to use only
parts specifi cally approved with this appliance may result in property damage or
personal injury.
W
ARNING
BLAZING OAK LOGS
Item
Description
Qty
BOCL18
1
Right Base Log
1
70D0131
2
Rear Log
1
70D0132
3
Left Base Log
1
70D0133
4
Right Top Log
1
70D0134
5
Left Top Log
1
70D0140
6
Right Front Log
1
70D0137
