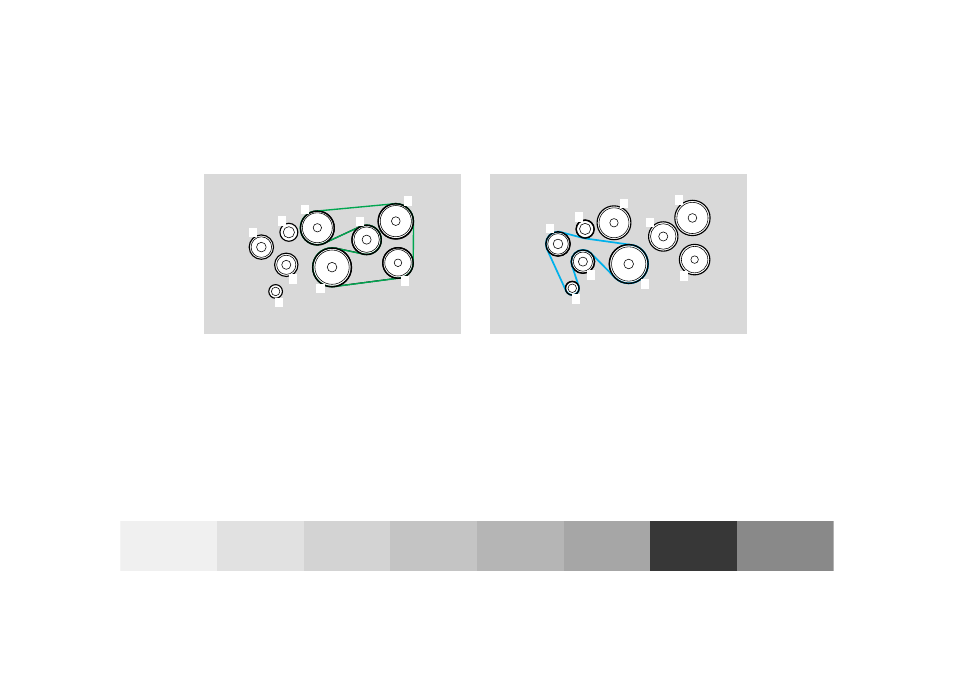

Layout of poly-V-belt drive

SLK 230 Kompressor
routing, belt I

The engine is equipped with two poly-V-belts.

1

Crankshaft

2

Air conditioner compressor

3

Power steering pump

4

Coolant pump

SLK 230 Kompressor
routing, belt II

For dimensions of the poly-V-belts, see page 260.

5

Idler pulley

6

Generator (alternator)

7

Idler pulley

8

Idler pulley

9

Supercharger

P13.20-2007-26

9

6

8

7

4

1

5

3

2

5

3

2

9

6

8

4

1

7

P13.20-2008-26
