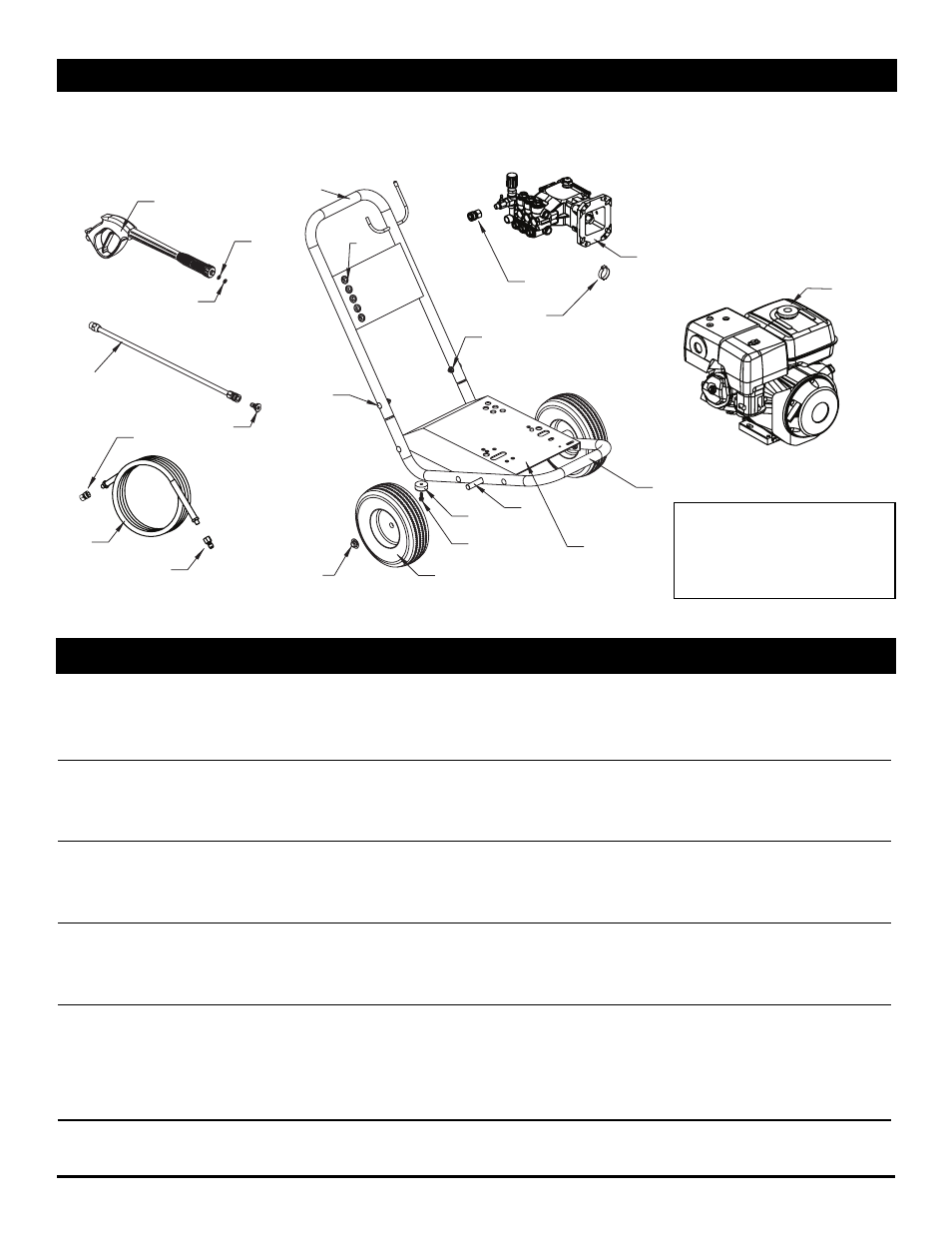

Maxus MX5223 - Manual (Page 11)

1 11 1
www.maxustools.com
1 Base Plate PM237600SJ PM237600SJ PM237600SJ 1
2 Pneumatic Wheel WA005620AV WA005620AV WA005620AV 2
3 Pushnut AL066300AV AL066300AV AL066300AV 2
4 5/16 in. -18 Nut PM031100AV PM031100AV PM031100AV 8
5 5/16 in. -18 Rounded square neck bolt MJ101206AV MJ101206AV MJ101206AV 8
6 Handle PM344845AJ PM344845AJ PM344845AJ 1
7 Quick Connect Tip Grommet MJ110200AV MJ110200AV MJ110200AV 5
8 Rubber Bumper AL062300AV AL062300AV AL062300AV 2
9 1/4 in. -20 x 3/4 in. Self-tapping screw MJ102100AV MJ102100AV MJ102100AV 2
10 Axle rod PM090010AV PM090010AV PM090010AV 1
11 Frame PM343705AV PM343705AV PM343705AV 1
12a Gun PM005133AV PM005133AV PM005133AV 1
12b Gun o-ring PM232210SV PM232210SV PM232210SV 2
12c Gun back-up o-ring PM232211SV PM232211SV PM232211SV 1
13 Lance PM035120AV PM035120AV PM035120AV 1
14 High pressure hose PM005010AV PM005012AV PM005012AV 1
15 Pump Assembly PM347000SJ PM347100SJ PM347200SJ 1
16 Engine See note below See note below See note below 1
17 Socket - Quick connect PM068070AV PM068070AV PM068070AV 2
18 Plug - Quick connect PM068066AV PM068066AV 1
19 Quick Connect Tips
0 (Red)
PM039870AV PM039700AV PM039700AV 1
15 (Yellow) PM039880AV PM039710AV PM039710AV 1
25 (Green) PM039890AV PM039720AV PM039720AV 1
40 (White) PM039900AV PM039730AV PM039730AV 1
Detergent (Black) PM039820AV PM039820AV PM039820AV 1
20 1 in. Hose clamp ▲ ▲ ▲ 1
▲ Standard hardware item
Note: For engine service or replacement parts, call Honda at 1–800–426–7701
5
19
3
9
2
8
10
1
11
12A
13
12C
12B
14
6
7
4
15
16
17
18
17
20
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as
shown in parts list
For replacement parts or technical assistance,
call 1-888-MAXUS4U
Replacement Parts List
Ref.
Description
Part Numbers
Qty.
No. MX5223 MX5333 MX5433
Replacement Parts List
MX5223, MX5333, and MX5433
REPAIR MANUAL
for Pressure Washers
now available!
Call 1-888-MAXUS4U
Address any correspondence to:
Attn: Customer Service
100 Production Drive
Harrison, OH 45030 U.S.A.
