Model 1001LWX Owner’s Manual

Page 7

www.midlandradio.com

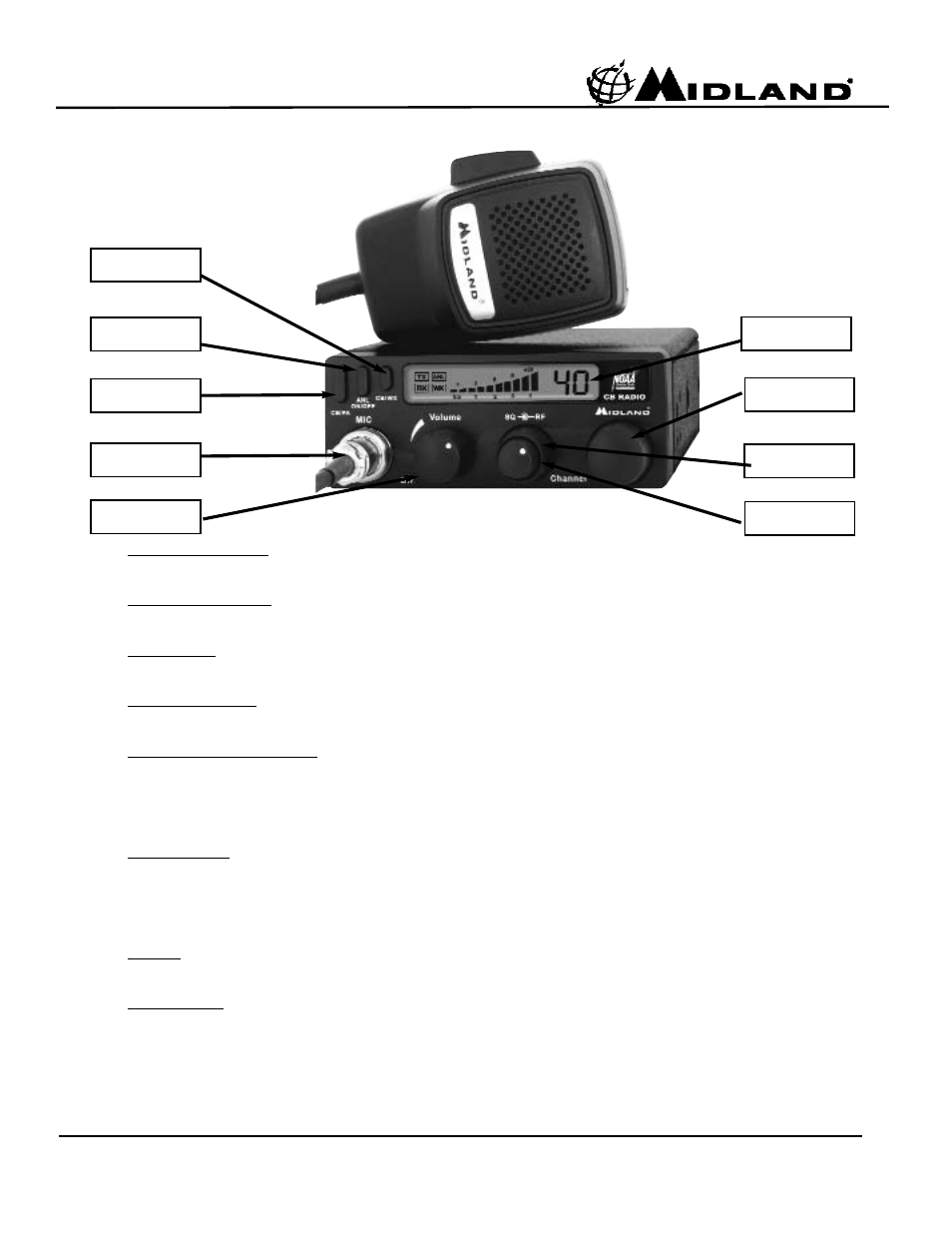

1001LWX Front Panel Features and Operation

1001LWX Front Panel Features and Operation

ON/OFF Volume Knob: In the off position your transceiver power is off. Turn this control clockwise to switch on the unit

and adjust the volume.

Microphone Connector: Plug in the supplied microphone to this connector. Received signals will not be heard without the

microphone.

CB/PA Button: When in PA mode, it causes your voice to operate the optional external PA speaker. In CB mode, the

microphone operates the transmitter.

ANL ON/OFF Button: Press this button once to activate the automatic noise limiter. When in ANL mode, ignition noise will

be reduced. Press the button again to deactivate ANL.

Weather(WX) Scan/CB Button: Press this button once to activate the weather scan. The radio will begin scanning and

lock on the first weather channel broadcast signal strong enough to use. If later the signal becomes too weak to use the

unit will automatically resume scanning to find a usable signal. The user can also make the unit scan to another channel

by pressing the microphone PTT button. The unit will rescan channels each time the CB/WX button is used to listen to

weather. When the radio is in weather scan mode, the user cannot use the CB/PA function.

Squelch Control: This control is used to cut off or eliminate receiver background noise in the absence of an incoming sig-

nal. For maximum receiver sensitivity it is desired that the control be adjusted only to the point where the receiver back-

ground noise or background noise is eliminated. Adjust until the receiver noise disappears. This will require the incoming

signal to be slightly stronger than the average receiver noise. Further clockwise rotation will increase the threshold level

which a signal must overcome in order to be heard. Only strong signals will be heard at a maximum clockwise setting

RF Gain: This control is used primarily to optimize reception in strong signal areas. Gain is reduced by counter clockwise

rotation of the control.

Channel Knob: This knob selects any one of the 40 Citizens Band channels. The selected channel is indicated by the LED

readout, directly above the Channel Knob.

Mic Connector

CB/PA Button

ANL ON/OFF

Button

WX Scan/CB

Button

ON/OFF

Volume Knob

Squelch Control

Knob

Channel Knob

Easy to Read

Backlit LCD

RF Gain Knob
