determine the optimum pendulum action setting for the

material of the work piece.

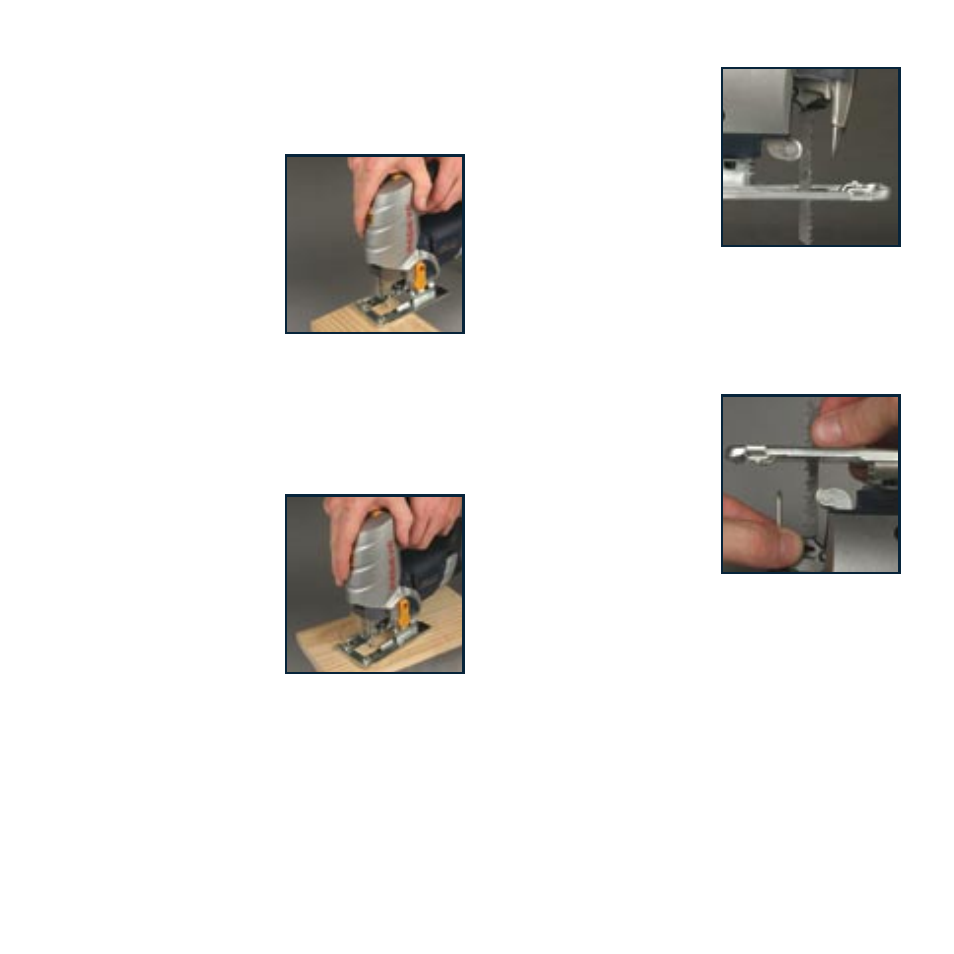

Making a cut

Warning.

The blade guard (6)

should always be in place when

the jigsaw is in use.
1. Switch on the jigsaw and

allow the blade to reach

maximum speed.

2. Slowly guide the jigsaw

forward using both hands,

keeping the shoe plate flat

against the work piece. Do

not force the jigsaw.

NOTE.

Use only enough pressure to keep the blade cutting.

Do not force the cutting, allow the blade and the saw to

do the work.

Pocket & round cutting

1. When starting a cut from the

centre of a work piece, drill

a 12mm diameter hole to

ensure that there is clearance

for the blade.

2. When cutting tight curves,

reduce the speed of the saw.

Warning.

Do not move the saw

forward along its cut until the

blade has completely entered

the material and the shoe comes to rest on its surface.

Cutting metal

1. When cutting metals, a suitable cooling/cutting oil must

be used.

2. Squirt the lubricant onto the blade or work piece at regular

intervals during cutting in order to reduce wear on the

blade.

Blade guide

The blade guide (7) is spring

loaded. Depending on the

position of the pendulum lever,

the guide remains stationary

(non-pendulum) or oscillates

backwards and forwards,

causing the blade to cut with a

pendulum action.

Changing a blade

Warning.

Always ensure that the saw is switched off and

plug is removed from the power point before making any

adjustments.

Removing the blade

1. Turn the jigsaw upside down

so you can access the blade.

2. Using your thumb and

forefinger push down the tool

free blade change control on

both sides of the jigsaw blade

ensuring that your fingers do

not contact the teeth of the

jigsaw blade.

3. Whilst the tool-free blade change control is in its

uppermost position the blade to be replaced is free and

can be easily removed by pulling downwards towards the

base of the unit.

Note.

If the blade is difficult to release using the blade

change control, lightly tap the end of the blade with a

wooden mallet or similar. This will free the blade which can

then be released as before using the blade change control.

Refitting a new blade

1. Ensure the blade change control (12) is pressed down, slide

the new blade into the locating groove in the blade clamp

with the teeth pointing forward, ensuring that the blade

rear edge is located and supported by the blade guide.
