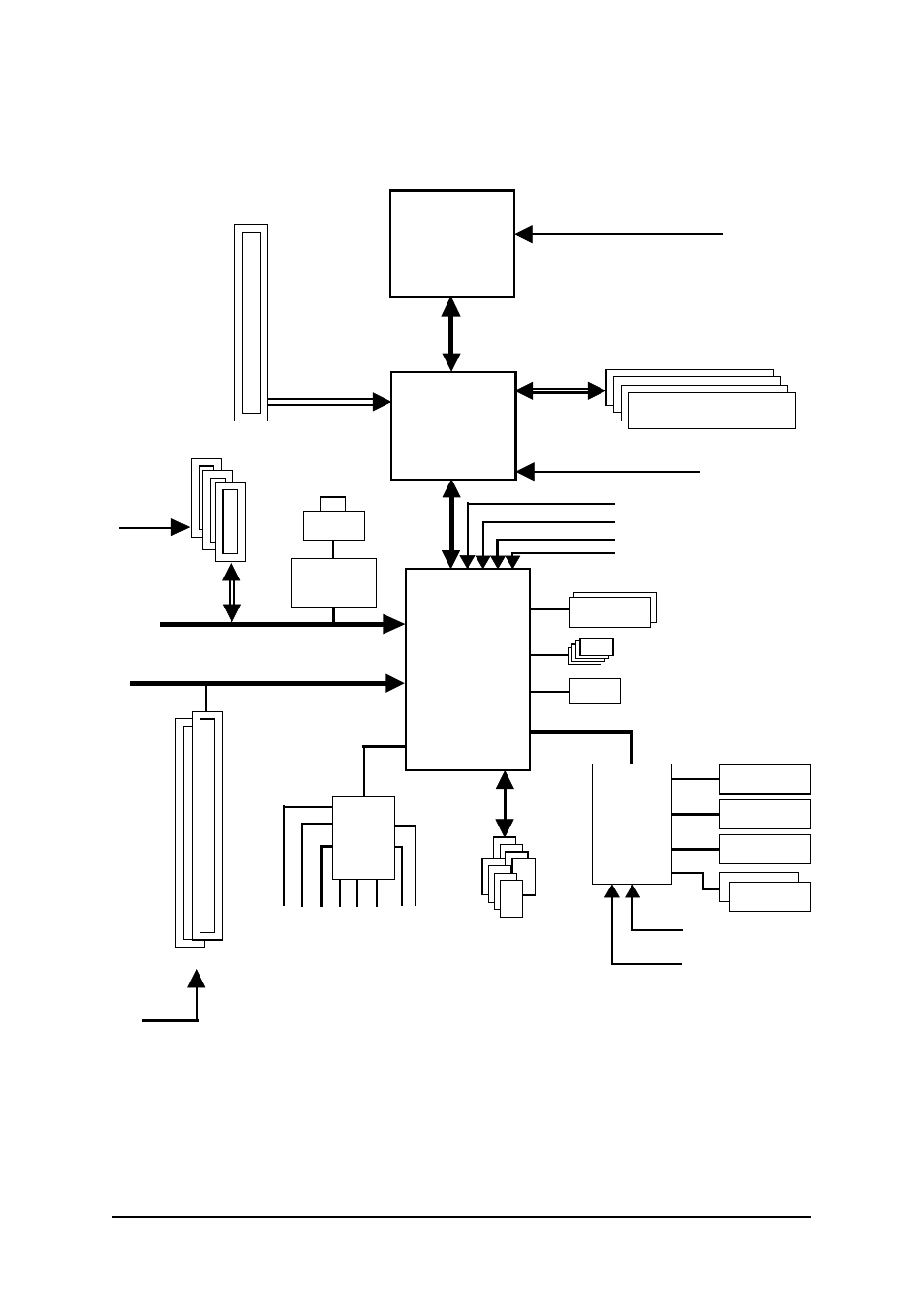

Block Diagram
Line-Out
MIC
LGA775
Processor
CPUCLK+/-(200/133MHz)
PCI Express x16
33MHz
Host
Interface
Intel
925X
MCH
MCHCLK (133/200MHz)
66MHz
48MHz
DDRII 600 (Note) /533/400MHz DIMM
24MHz
33MHz
IT8712
4 Serial ATA
ATA33/66/100 IDE Channels
Intel
ICH6R
14.318MHz
Dual BIOS
CODEC
Line-In
PCICLK
(33MHz)
2 PCI
PCI Bus
SPDIF In
SPDIF Out
3 PCI Express x 1 Ports
RJ45
PCI Express x 1 Bus
Broadcom
5751
8 USB
Ports
Dual Channel Memory
Floppy
PS/2 KB/Mouse
LPT Port
COM Port
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
PCI-ECLK
(100MHz)
PCI-ECLK
(100MHz)
(Note) To use a DDRII 600 memory module on the motherboard, you must install an 800MHz FSB
processor and overclock in BIOS.
