GA-8S661GXMP(-C) Motherboard

- 24 -

English

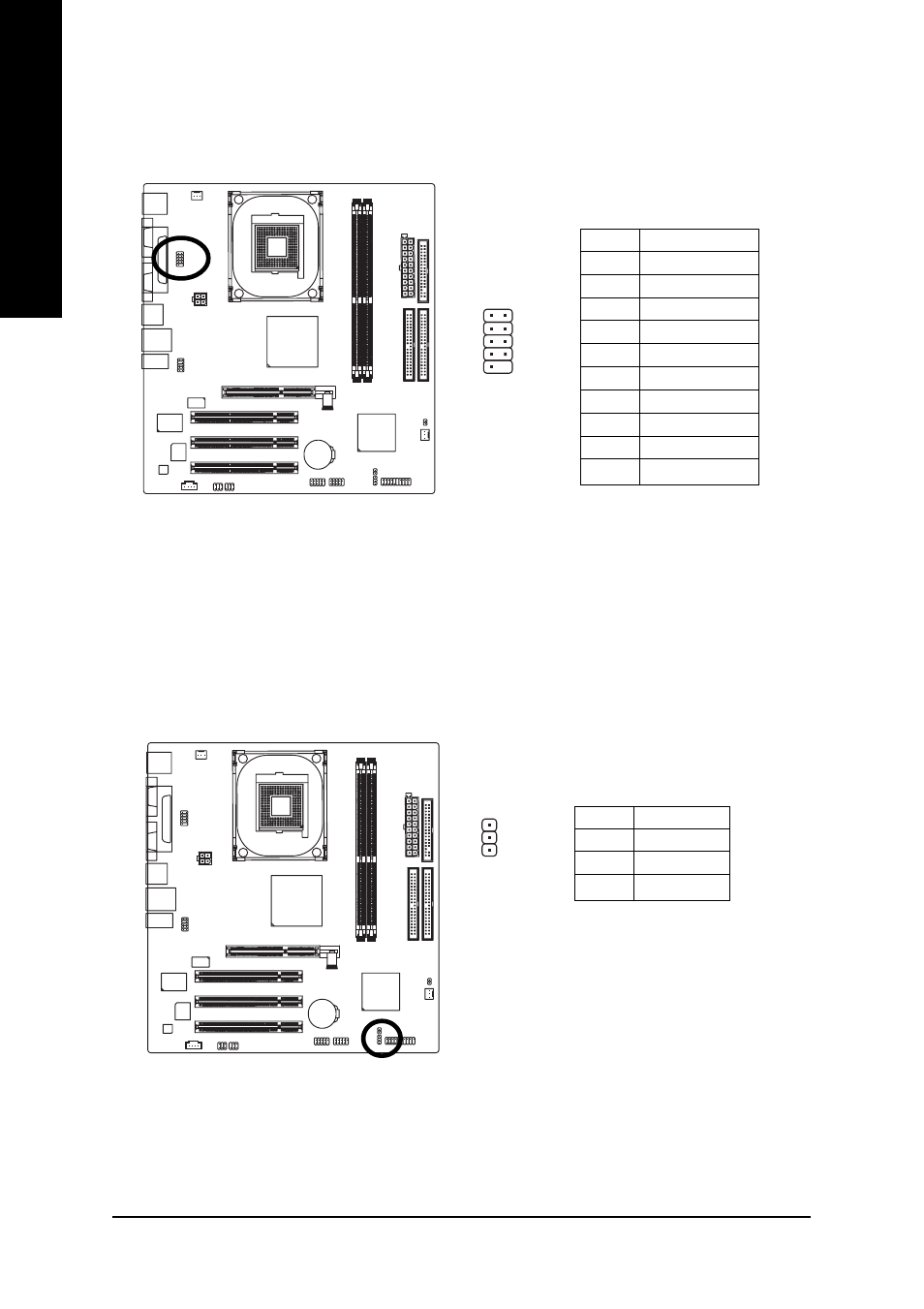

15) COMB (COMB Connector)

Be careful with the polarity of the COMB connector. Check the pin assignments while you connect
the COMB cable. Please contact your nearest dealer for optional COMB cable.

Pin No.

Definition

1

NDCDA-

2

NSINA

3

NSOUTA

4

NDTRA-

5

GND

6

NDSRA-

7

NRTSA-

8

NCTSA-

9

NRIA-

10

No Pin

10

9

2

1

16) PWR_LED

PWR_LED is connected with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode.

Pin No.

Definition

1

MPD+

2

MPD-

3

MPD-

1
