GPX | D190B
8

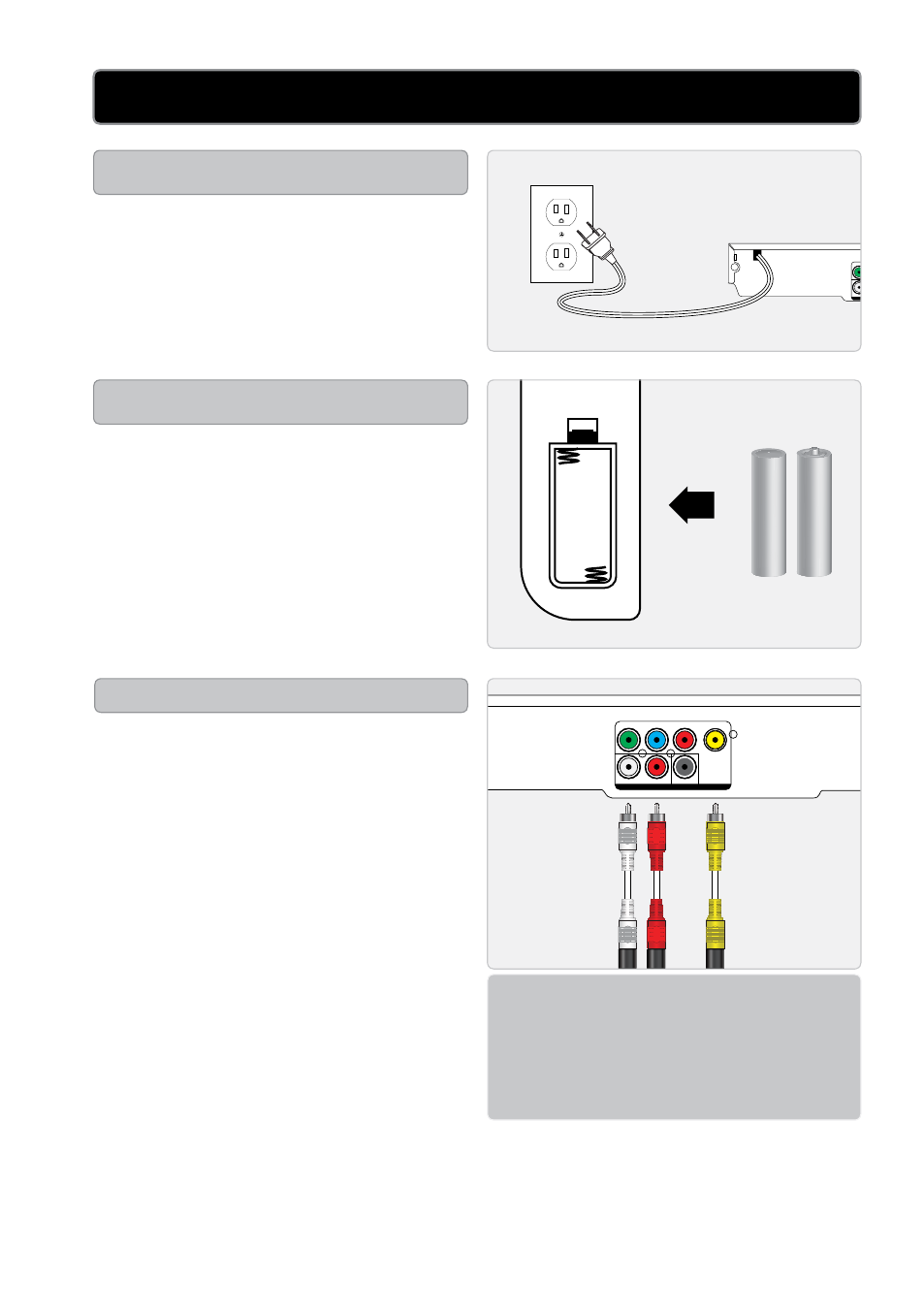

Plug the attached AC cord into
a standard AC power outlet to
power the home theater system.
Requires 2 AAA size batteries
(not included)
setuP
PoWer
remote
comPosite Video
120V ~ 60Hz
Pb/Cb
Y
Pr/Cr
AUDIO OUT
DIGITAL
VIDEO
R
L
COAXIAL
VIDEO OUT
120V ~ 60Hz
Pb/Cb
Y
Pr/Cr
AUDIO OUT
DIGITAL
VIDEO
R
L
COAXIAL
VIDEO OUT
teleVision
1 Plug the included RCA audio/
video cable into the COMPOSITE
VIDEO OUTPUT (yellow) on the
DVD player and the composite
video input (yellow) on a
television.
2 Plug the remaining plugs on the
included RCA audio/video cable
into the RCA STEREO AUDIO
OUTPUTS (red and white) on the
DVD player and the RCA stereo
audio inputs (red and white) on a
television.
3 Adjust the television’s input setting
to correspond to the inputs used
when connecting the DVD player.
STEREO
AUDIO
INPUTS
COMPOSITE
VIDEO
INPUT
