LED indicators
The spotlight has 3 LED indicators (6) which indicates battery
level when in operation and status
whilst charging.
First red LED indicates battery is in
a low level of charge.
Second red LED indicates battery is
partially charged.
Green LED indicates battery is fully
charged.

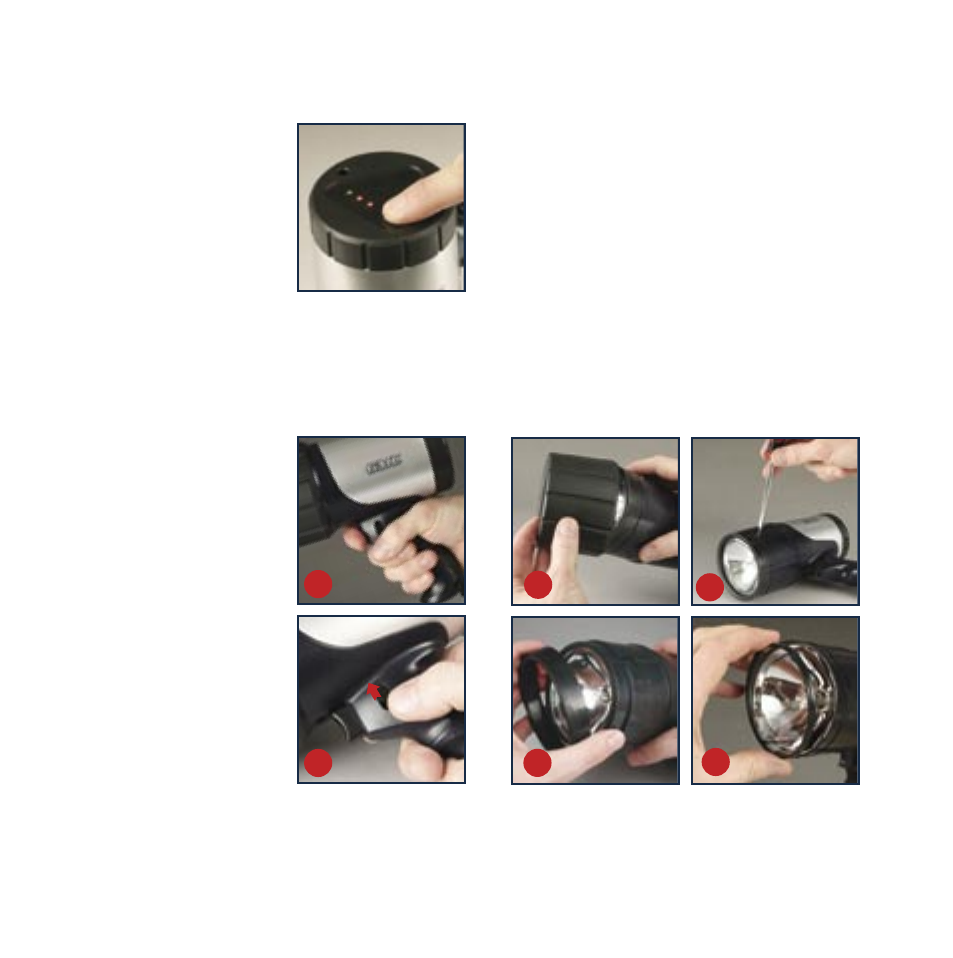

To turn the LED on and off, depress
the LED Indicator Switch (8)
Using the spotlight
The Spotlight has a digital electronic control dimmer with three
levels of brightness.
Depressing the trigger switch (1)
advances the brightness of the
spotlight to dim, brighter, brightest
(fig. A). This allows the user to set
the desired brightness of the light.
Depressing trigger at one second
intervals to allow the internal circuits
to set to the next level. Lower
brightness operation extends the
run time.
The Trigger Switch may be locked
in the ON position (fig. B) to provide
continuous light at any level without
continuously depressing the Trigger
Switch.
To lock trigger switch slide trigger
switch lock upwards. This can be
done in the on or off position. To
release lock, slide lock downwards.
Replacing the spotlight
To replace the H3 type 6V bulb you will need a small Phillips
type screwdriver and a replacement bulb (GMC Part VEC117-
AUBUL).
Bulb life may be shortened by installing a bulb with dirt or
fingerprints on it. The bulb can be wiped clean with a cloth
moistened with alcohol. During bulb installation, avoid touching
the glass part of the bulb
1. Disconnect the unit from charging adapter.
2. Pull backward the rubber bezel away from the front of the
spotlight to reveal two small Phillips screws in the Retaining
Ring (fig. C).
3. Using the screwdriver, remove (counter-clockwise) the two
screws and set them aside (fig. D).
4. Lift off the retaining ring, glass lens and rubber “O” ring and set
them aside (fig. E & F).
A
B
C
E
D
F
