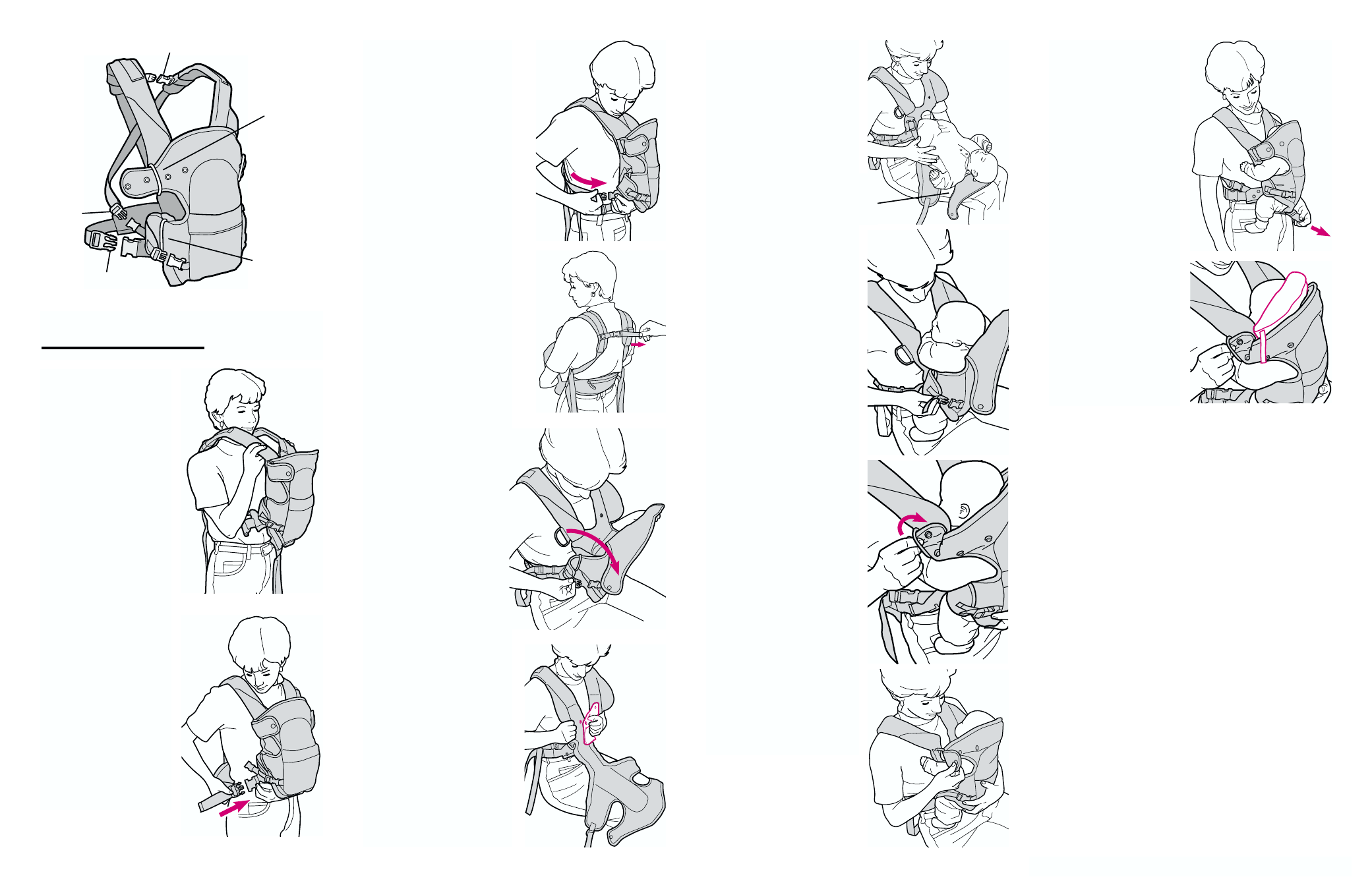

Step 1.
Put the carrier on as
shown, with the pouch in
front and the straps over
your shoulders.
Step 2.
Pull the waist strap
around you and secure
it with the large buckle.
Pull the free end of the
strap for a comfortable fit.
Step 9.
Adjust baby’s pouch if
needed by adjusting the
strap under the crotch to
raise or lower your baby.
Compare your fitted
carrier to this picture,
making sure that baby’s
arms go through the
top openings and legs
go through the bottom
openings. Check that
all buckles and snaps
are secure.
A very small baby may
need extra head support.
Thread the top tabs
through the head support
loops, then through the
top rings as shown.
To Use the Carrier
with Baby Facing You
Step 6.
Pick up your baby and sit
down, placing the baby’s
bottom on the narrow
crotch section of the carrier.
Step 7.
Gently raise baby up
against you, taking special
care to support a young
infant’s head.
Thread the bottom tabs
through the bottom rings.
Make sure baby’s legs
go through the openings
under the buckles. Buckle
them (listen for a click) and
pull the straps snug.
Step 8.
Then thread the top tabs
through the top rings. The
end of the tab must be turned
sideways as shown to fit it
through the ring.
Baby’s arms must go
through the opening, NOT
over the top of the carrier.
Snap the tabs securely in
the best position for your
baby’s size.
Upper strap
Bottom tab
with buckle
always goes
through wider
bottom ring
Large
waist buckle
Small
shoulder
strap
buckle
Step 3.
Fasten the two shoulder
straps with the smaller
buckles. You may cross them
in the back or not, whichever
is more comfortable. Pull the
free ends of the straps for
a comfortable fit.
Ask someone else to help
you adjust the upper strap
if desired. The strap can
be tightened or moved up
or down for your comfort.
Check all buckles to make
sure they are secure.
Step 4.
Undo the two top snaps and
the two bottom buckles and
lay the carrier, opened flat,
in your lap.
Step 5.
If you want to use the bib,
snap it in place as shown.
Top tab
with snaps
always
goes
through
narrower
top ring
Baby’s arms
should be
between the
two tabs
