Section 7 - Electrical Data

Liquid-cooled 15, 20 and 25 kW Generators

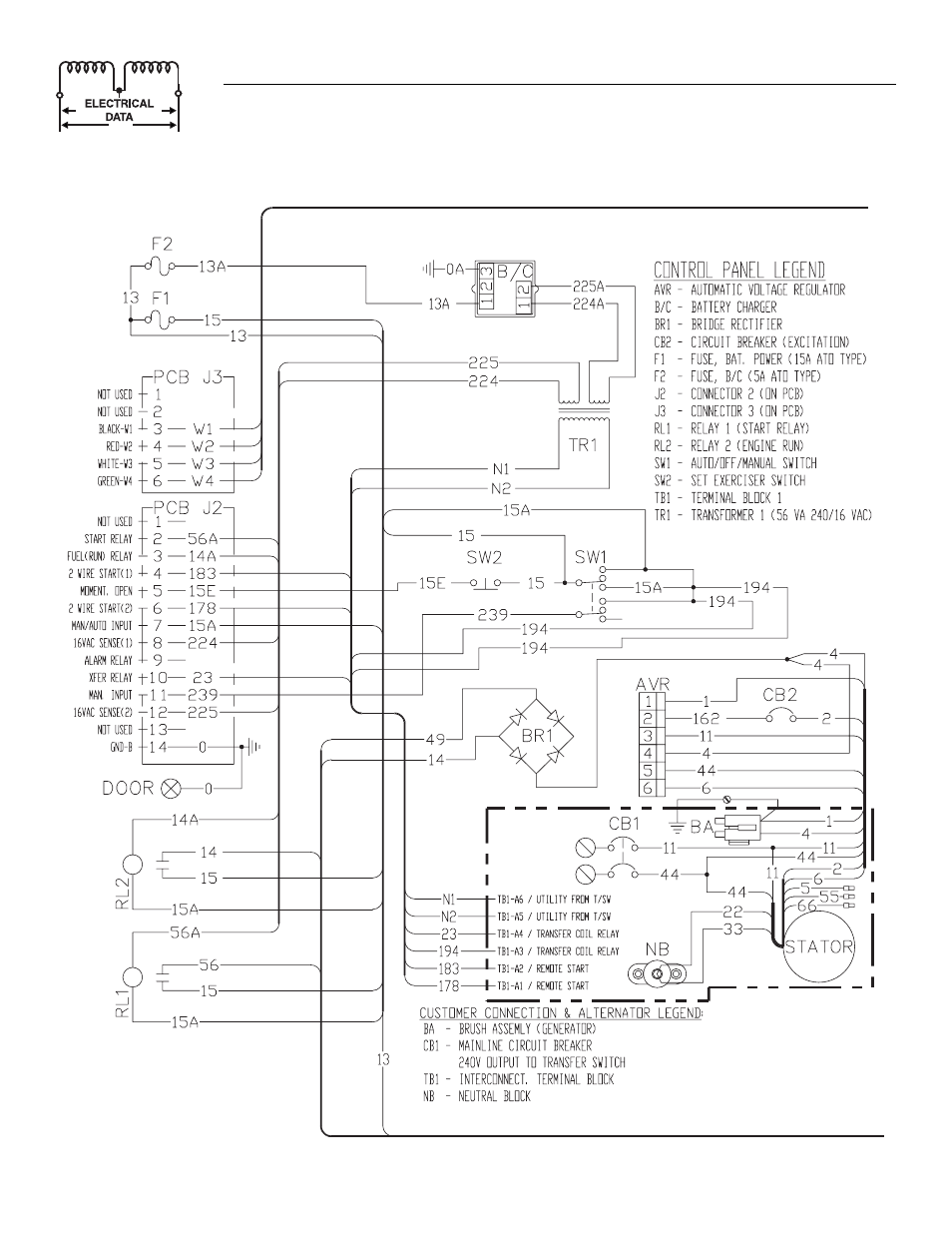

Electrical Schematic — 2.5L (25kW unit) — Drawing No. 0F1287-B
