VIII. Adjustments
To adjust the lower support bearing
(Figure 14):
1. Loosen the nut that holds the lower sup-
port bearing in place.
2. Position the bearing to approximately 1 /
64
"
behind the blade.
3. Re-tighten the nut that holds the bearing
in place.
To adjust the upper support bearing
(Figure 13):
1. Loosen the thumbscrew securing the
upper support bearing shaft.
2. Position the bearing to approximately 1 /
64
"
behind the blade.
3. Re-tighten the thumbscrew.
D. Support Bearings
The support bearings back-up the blade dur-
ing sawing. The upper support bearing is
located just above the guide blocks. Figure
13. The lower support bearing is perpendicu-
lar (90°) to the upper bearing, but it should be
adjusted similarly.

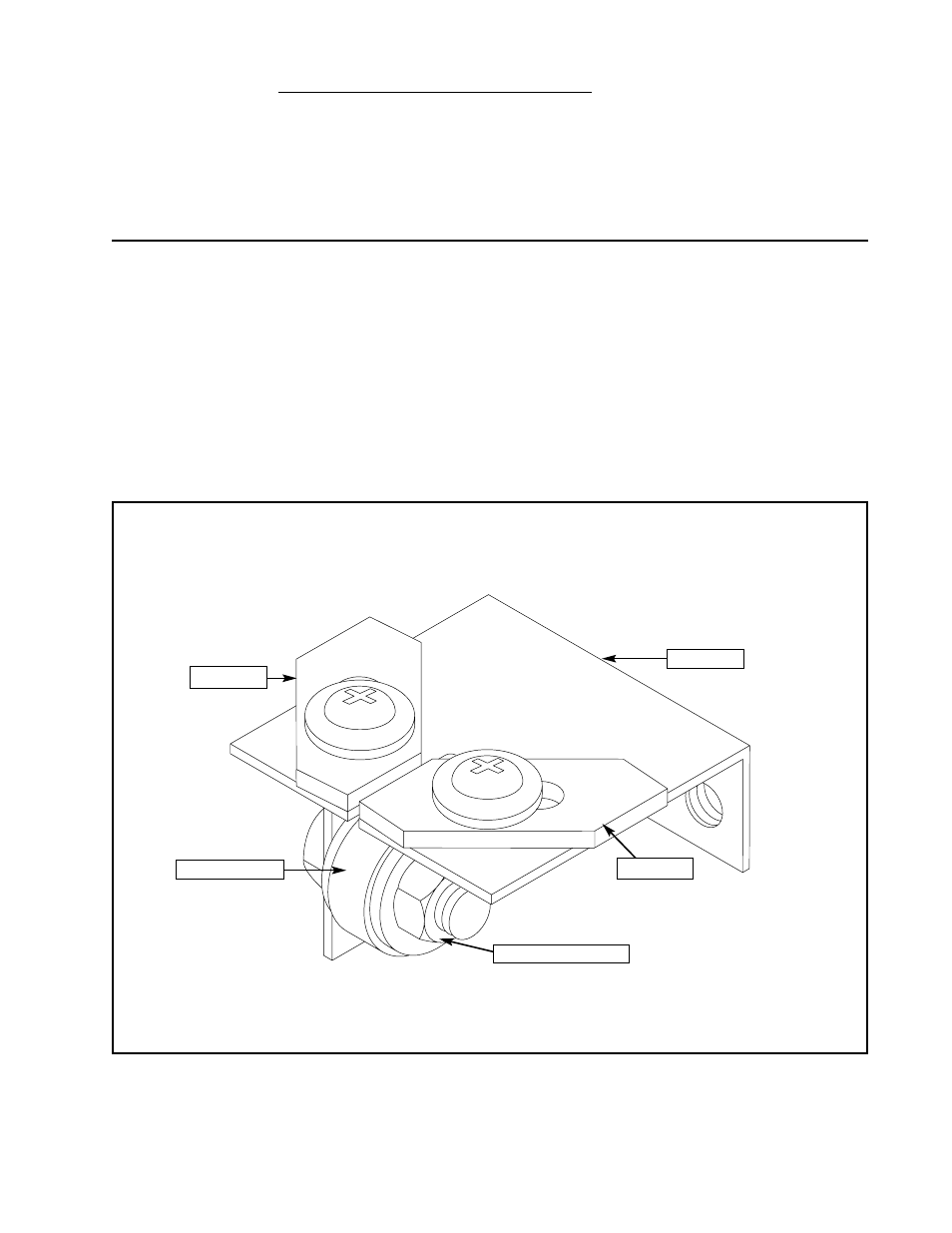

Figure 14 shows a closeup of the lower guide assembly.
Guide Tab
Fixed Plate
Support Bearing Guide Tab
Support Bearing Nut
