″ COOKTOP/DOWNDRAFT
UNITS JVB67 AND JVB98
NOTE: Before you begin, measure and mark
depth to ensure that adequate flat countertop
surface is available.

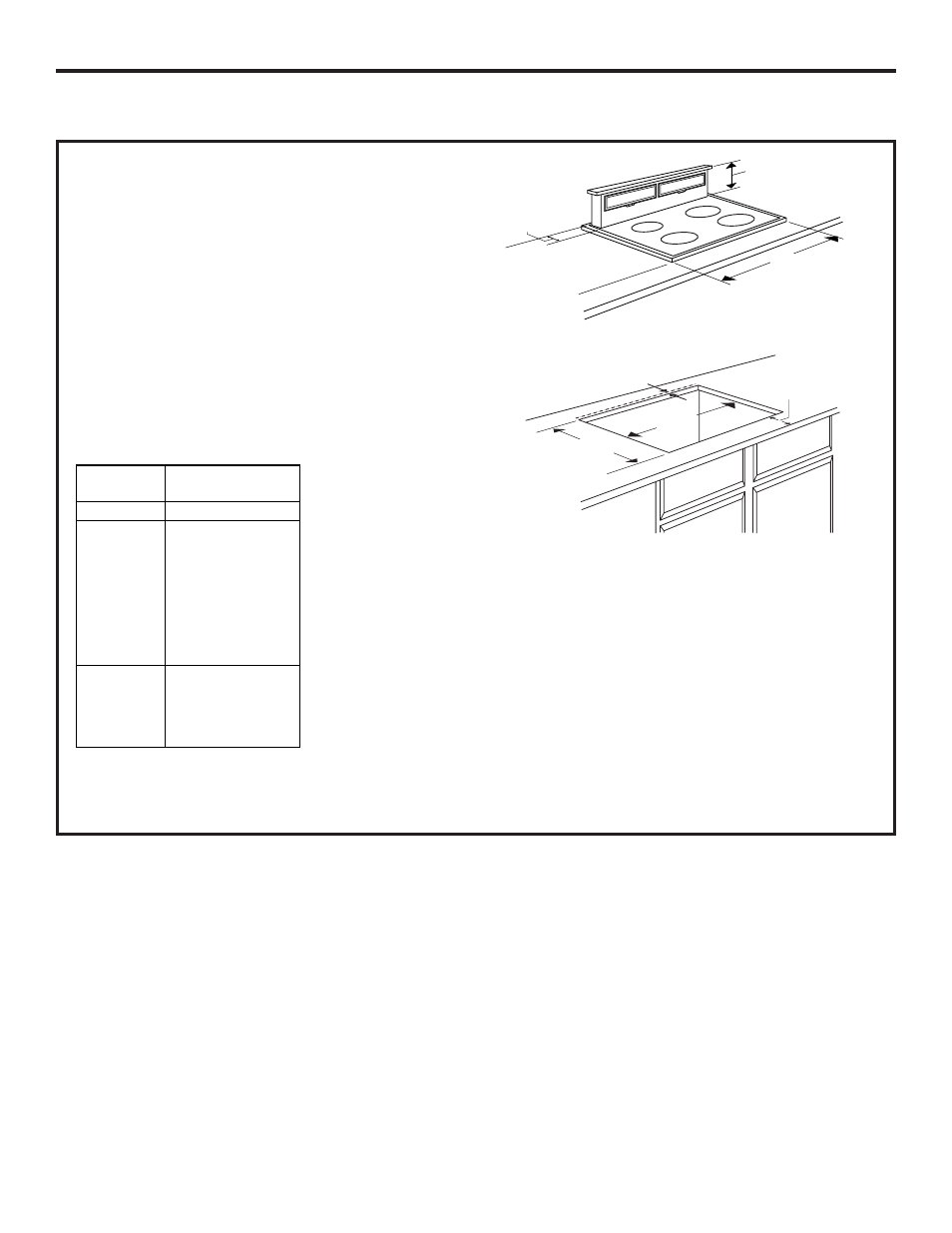

Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
• Draw lines on the countertop to follow
as a cutting guide.
• Make sure sides of the opening are
parallel and rear and front cuts are
exactly perpendicular to sides.
11
Installation Instructions
2 1 ⁄
8
″*
8 1 ⁄
2
″
36 ″
2 1 ⁄
2
″ Minimum**
34 ″
See table
Model Combined
Number Cutout Depth
JP626 21-1/8 ″
JP655
JP960
JP970
JP980
PP962
21-3/4 ″
PP972
PP975
PP980
JGP970
JGP628
JGP630
JGP637
21-7/8 ″
JGP963
JGP975
* *Includes 1/8 ″ gap between
cooktop and vent trim
**Required to maintain UL
or CSA approvals
3/8 ″ Minimum flat
countertop behind
cutout required
