Grizzly T10008 User Manual
Page 13
Model T10008 2000 Kg Digital Crane Scale
-12
-

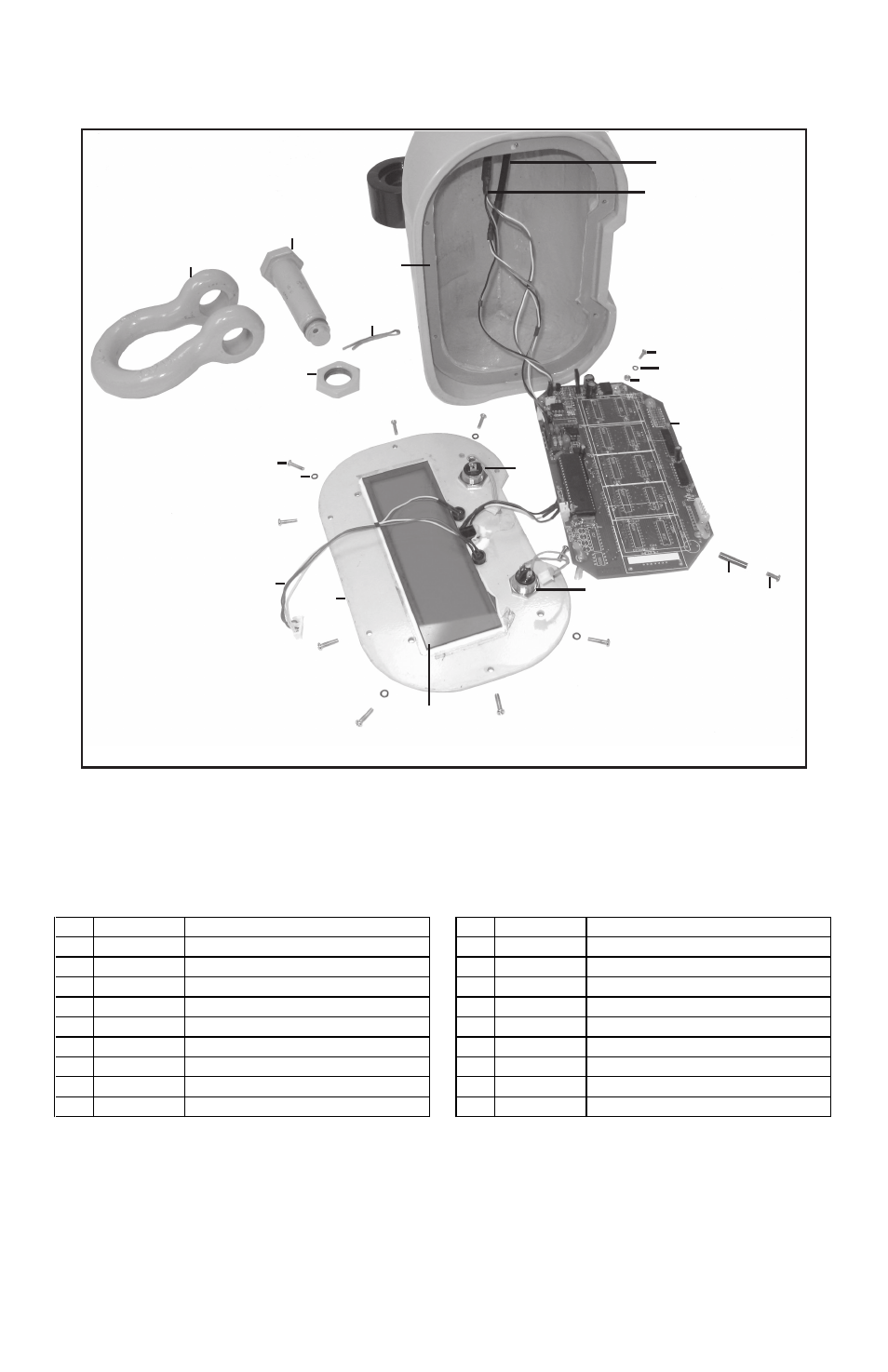

T10008 Front View Parts Breakdown
�
�
�
�
�
�
�
�
�
��
��
��
��
��
��
��
��
��
��
��
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1
PT10008001 ANCHOR SHACKLE
11
PLW09M
LOCK WASHER 3MM
2
PT10008002 SPECIAL BOLT 7/8-9
12
PT10008012 LED W/ WIRE ASSEMBLY
3
PN38
HEX NUT 7/8-9
13
PT10008013 SCALE FACE PLATE
4
PT10008004 COTTER PIN
14
PT10008014 TARE WIRE ASSEMBLY
5
PT10008005 FRONT GASKET
15
PT10008015 SCREEN
6
PS79M
PHLP HD SCR M3-.5 X 8
16
PT10008016 POWER WIRE ASSEMBLY
7
PLW09M
LOCK WASHER 3MM
17
PT10008017 HIGH NUT M3-.5 X 20
8
PN07M
HEX NUT M3-.5
18
PS79M
PHLP HD SCR M3-.5 X 8
9
PT10008009 CIRCUIT BOARD
19
PT10008019 FRONT BATTERY WIRE ASSEMBLY
10
PS55M
PHLP HD SCR M3-.5 X 10
20
PT10008020 LOAD CELL WIRE ASSEMBLY
