10

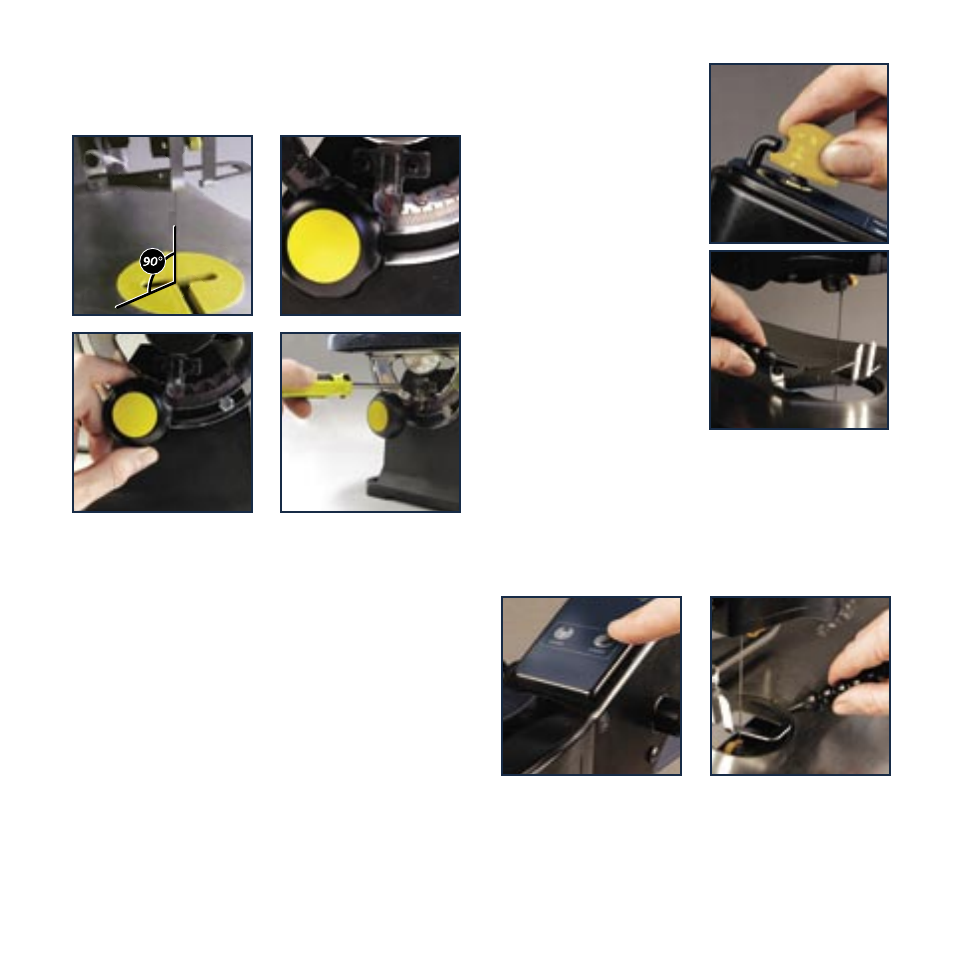

Aligning the degree scale pointer
1. Loosen the table lock knob (17) and position the
table so that it is at a right angle to the blade.
2. Place a small square on the table next to the blade
to check if the table is at a 90º angle to the blade.
If adjustment is needed, change the bevel angle until
the table is at approximately 90º to the blade and
securely tighten the table lock knob.
3. Loosen the 2 screws holding the degree scale pointer
and move the pointer to the 0º position. Securely
tighten the screws.
Note. The degree scale is a convenient guide but should
not be relied upon for precision. Always make a practice
cut in scrap wood to determine if your angle settings
are correct.
Turning on and off
1. To turn on the scroll saw
lift the on/off switch (1).
2. To turn off the scroll saw
push the on/off switch
(1) down.
Adjusting the
sawdust blower
Your scroll saw features a
sawdust blower (6) to help
keep the work area clean for
more accurate scroll cuts.
For best results always direct
air flow from the blower
tube at the blade and
workpiece.
1. To adjust move tube to the correct position.
Adjusting the LED light
The LED light will illuminate the work area for greater
visibility of the cutting line.
1. To turn on the LED light press the LED light button
(3) on the control panel.
2. To adjust the direction of the light move the tube to
the most suitable position.
Note. The LED light will not function if the saw is not in
the ‘on’ position.
