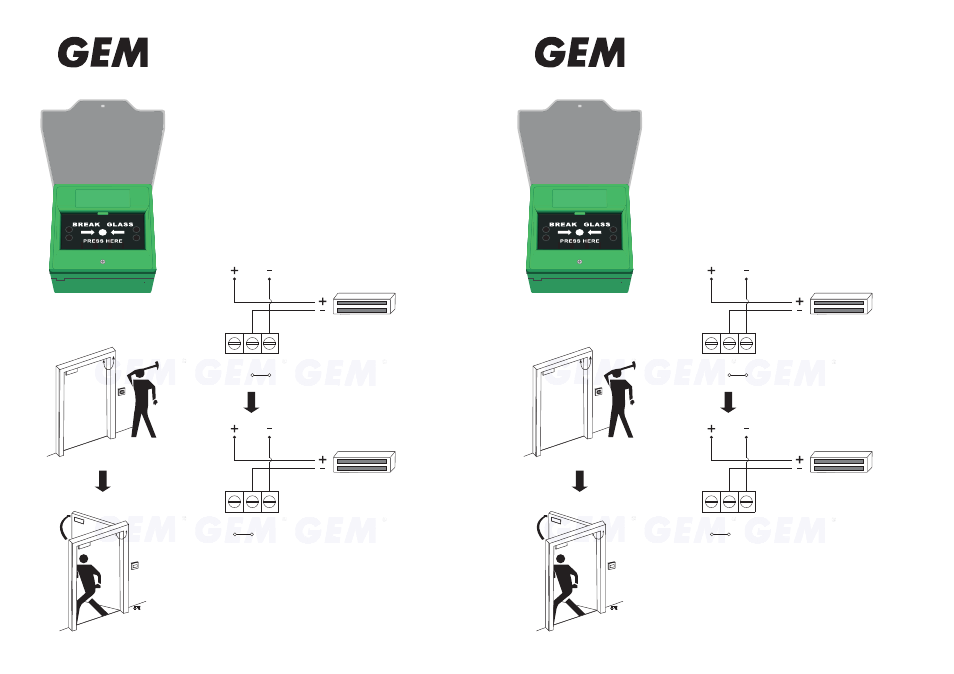

CP-15\GE CALL POINT

-The Emergency Door Release, with the
contact from N/C to N/O. the main function
is to override the electrical locking/release
devices in case of emergency. With Key to
replace glass or reset unit.

Specifications:
Dimensions:88x88x52mm
Contact Resistance: 150m
Switch rated: 3A@125VAC

No need to power in. It has a switch for
motoring in case of emergency when glass
is broken; the contacts change from N/C to
N/O.

EMERGENCY

DOOR RELEASE

1

(N.O)

2

(COM)

3
(N.C)

Electromagnetic
locks (locked)

Electromagnetic
locks (Unlocked)

EM LOCKS

1

(N.O)

2

(COM)

3
(N.C)

CP-15\GE CALL POINT

-The Emergency Door Release, with the
contact from N/C to N/O. the main function
is to override the electrical locking/release
devices in case of emergency. With Key to
replace glass or reset unit.

Specifications:
Dimensions:88x88x52mm
Contact Resistance: 150m
Switch rated: 3A@125VAC

No need to power in. It has a switch for
motoring in case of emergency when glass
is broken; the contacts change from N/C to
N/O.

EMERGENCY

DOOR RELEASE

1

(N.O)

2

(COM)

3
(N.C)

Electromagnetic
locks (locked)

Electromagnetic
locks (Unlocked)

EM LOCKS

1

(N.O)

2

(COM)

3
(N.C)
