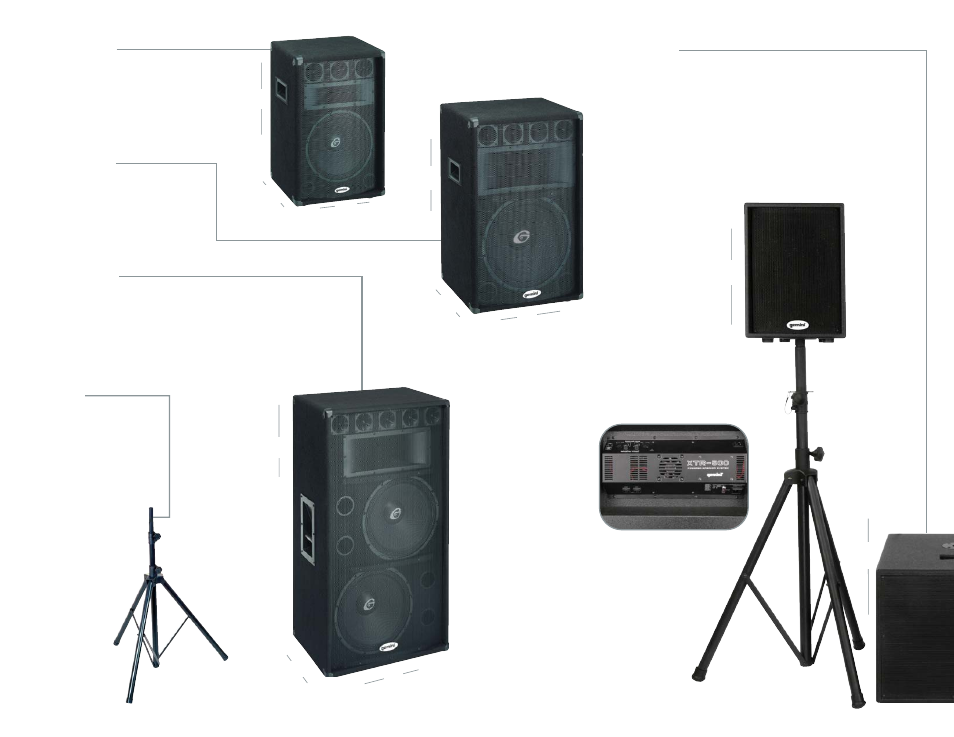

XTR-500
Complete Powered Speaker System
.......................................................................................
> 2 XTR-SAT 10” Trapezoidal loudspeakers & 15” powered subwoofer
> Efficient MDF Bandpass subwoofer enclosure w/ 35mm Standmount cap and wheels
> 3-channel power amplifier & active crossover built-in to subwoofer
> 230 watts RMS on subwoofer channel (Subwoofer Freq. Response: 100Hz to 20 kHz)
> 85 watts RMS per satellite channel (Satellite Freq. Response: 35Hz to 100Hz)
> 400 watts total RMS and 800 watts peak power
> 120dB total continuous SPL
> Individual channel Sensitivity/Volume controls
> Balanced XLR and 1/4” inputs
> Speakon™ outputs for satellite channels (Cables Included)
> Variable speed fan
> Full protective metal grill
> Hard wearing black painted finish with
rubber feet
> Speaker stands not included
Weight: 112 lbs. (51 kg)
Shipping: 119 lbs. (54 kg)
GSM-1250
12” Three-Way Speaker
..............................................................
> 12" x 4" horn, three 3” tweeters
> 100 watts RMS
> Push button connectors & dual 1/4” input jacks
> 8 ohms impedance
Weight: 28 lbs. (12.7 kg)
Shipping: 29 lbs. (13 kg)
GSM-1580
15” Three-Way Speaker
..............................................................
> 17" x 5" horn, four 3” tweeters
> 175 watts RMS
> Push button connectors & dual 1/4” input jacks
> 8 ohms impedance
Weight: 43 lbs. (19.5 kg)
Shipping: 45 lbs. (20.4 kg)
GSM-3200
15” Three-Way Speaker
........................................................
> 17" x 5" horn, five 3” tweeters
> 300 watts RMS
> Push button connectors & dual 1/4” input jacks
> 4 ohms impedance
Weight: 88 lbs. (39.9 kg)
Shipping: 90 lbs. (41 kg)
30”
(762mm)
14”
(356mm)
19”
(483mm)
24.5”
(622mm)
12”
(305mm)
16”
(406mm)
*All GSM and GT Series speakers come standard with metal corners and rubber feet.
*All GSM and GT speakers come with easy-carry handles except for the GT-1002.
20.75
(525mm)
18”
(457mm)
ST-02
Speaker Stand
..................................
> Tripod design
> Extends to 6’ 2” (2 m) high
> 200 lb. (90 kg) capacity
45”
(1143mm)
16”
(406mm) 24”
(610mm)
XTR-500 Amplifier
