ITEM PART NO. QTY. DESCRIPTION
1 0E8616 1 MUFFLER 7" X 9" X 21" 2.5" IN &
OUT
2 0E8727 1 PIPE MUFFLER OUT
3 0E8822 1 WYE PIPE 2-1/2"
4 0E8821 2 EXHAUST ELBOW HSB (2"-2-1/2")
5 0E6465 1 EXHAUST PIPE LH 3.0L FORD HSB
6 0E6465A 1 EXHAUST PIPE RH 3.0L FORD HSB
7 0E5914 1 BRACKET MUFFLER 3.0L FORD
HSB
8 0E8726 2 STRAP MUFFLER
9 0E0170 2 EXHAUST BLANKET 750MM
10 036797 2 BOLT U 5/16-18 X 2.25
11 080762 4 BOLT U 3/8-16 X 2.62
ITEM PART NO. QTY. DESCRIPTION
12 0E8816 2 EXHAUST FLANGE 2" PIPE
13 085917 4 WASHER LOCK 3/8 SS
14 0D2611 4 SCREW HHC 3/8-16 X 1-3/4 SS
15 039253 2 SCREW HHC M8-1.25 X 20 G8.8
16 022145 5 WASHER FLAT 5/16-M8 ZINC
17 022129 7 WASHER LOCK M8-5/16
18 045771 3 NUT HEX M8-1.25 G8 YEL CHR
19 0C2454 4 SCREW TH-FRM M6-1 X 16 N WA
Z/JS
20 039288 1 SCREW HHC M8-1.25 X 55 G8.8
21 044149 2 GASKET EXHAUST RING
22 022259 4 NUT HEX 5/16-18 STEEL
11
4
20
16
15
16
11
2
1
MANIFOLD
TO
5
3
22
17
10
14
13
12
21
9
19
11
11
4
18
17
16
8
16
COMPARTMENT
TO
22
17
10
19
7
17
MANIFOLD
TO
6
18
13
14
9
12
21
42 Generac ® Power Systems, Inc.
Section 7 - Exploded Views and Parts
QUIETSOURCE™ Liquid-cooled 30 kW Generators

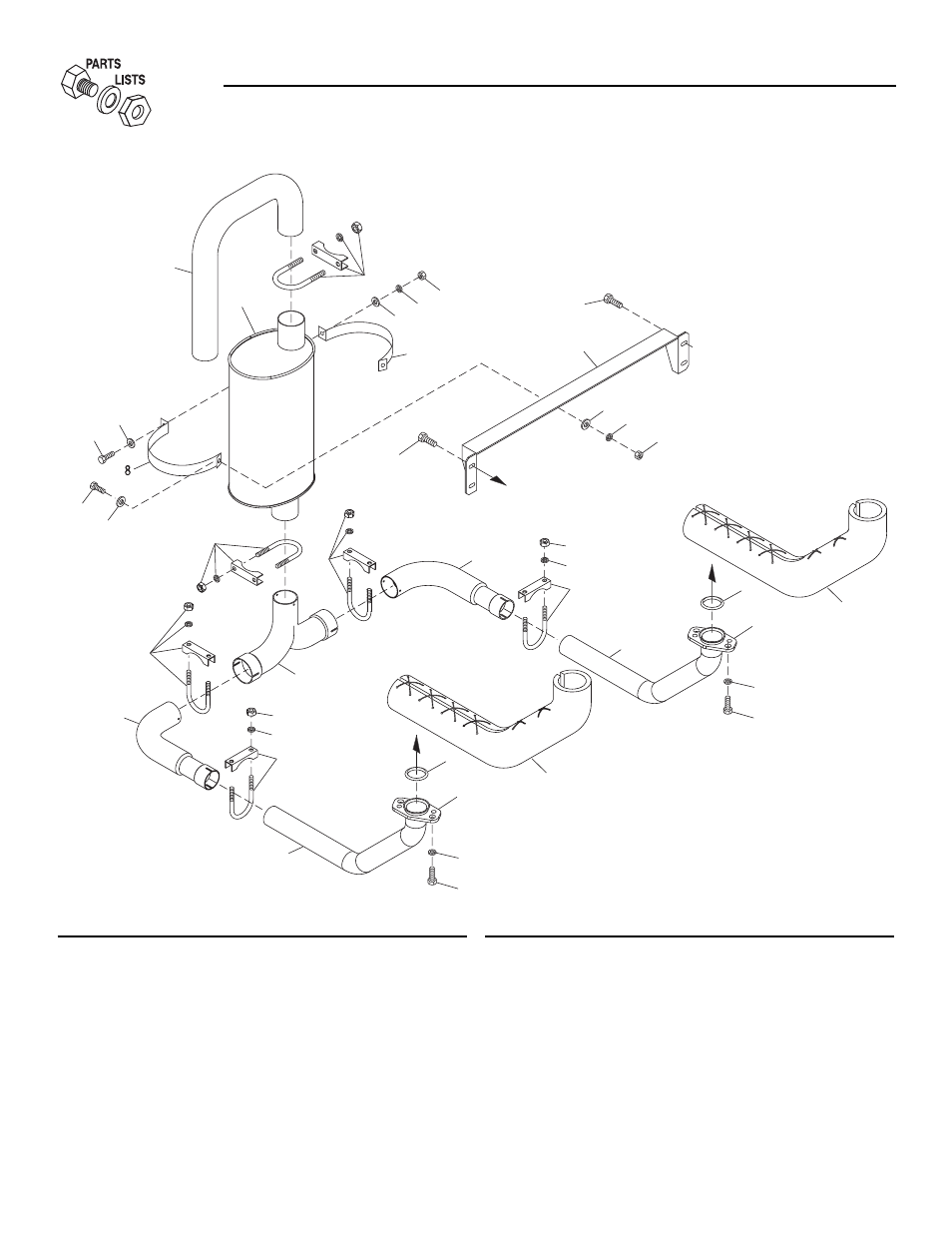

Muffler — Drawing No. 0E8766-C
