Grizzly H6248 - Manual (Page 8)

Model H6248 Meat Grinder -6 -
Assembling Grinding
Head
1. Loosen the locking knob, and remove
the grinding head assembly from the
grinder motor housing.
2. Unscrew the lock ring and remove the
cutting plate, cutting blade and feed
screw. Thoroughly sanitize the grind-
er head, cutting plates, cutting blade,
feed screw, lock ring and attachments
(refer to Proper Sanitization on
page
9 for information).
3. Before proceeding with assembly,
wipe down outside surface of grinder
motor housing with a sanitized cloth.
4. After cleaning, assemble the grinder
head by inserting the feed screw into
the barrel of the grinder head with the
longer end of the hex shaft projecting
through the back of the grinder head
barrel (
Figure 2).
5. Carefully slide the cutting blade on
the square shaft on the front of the
feed screw (
Figure 3).
6. Choose one of the three cutting
plates.
7. Slide the cutting plate over the shaft
and align with the locking pin located
at the bottom of the barrel of the
grinder head. (
Figure 4).
8. Screw the lock ring on to the barrel
clockwise to secure the assembly.

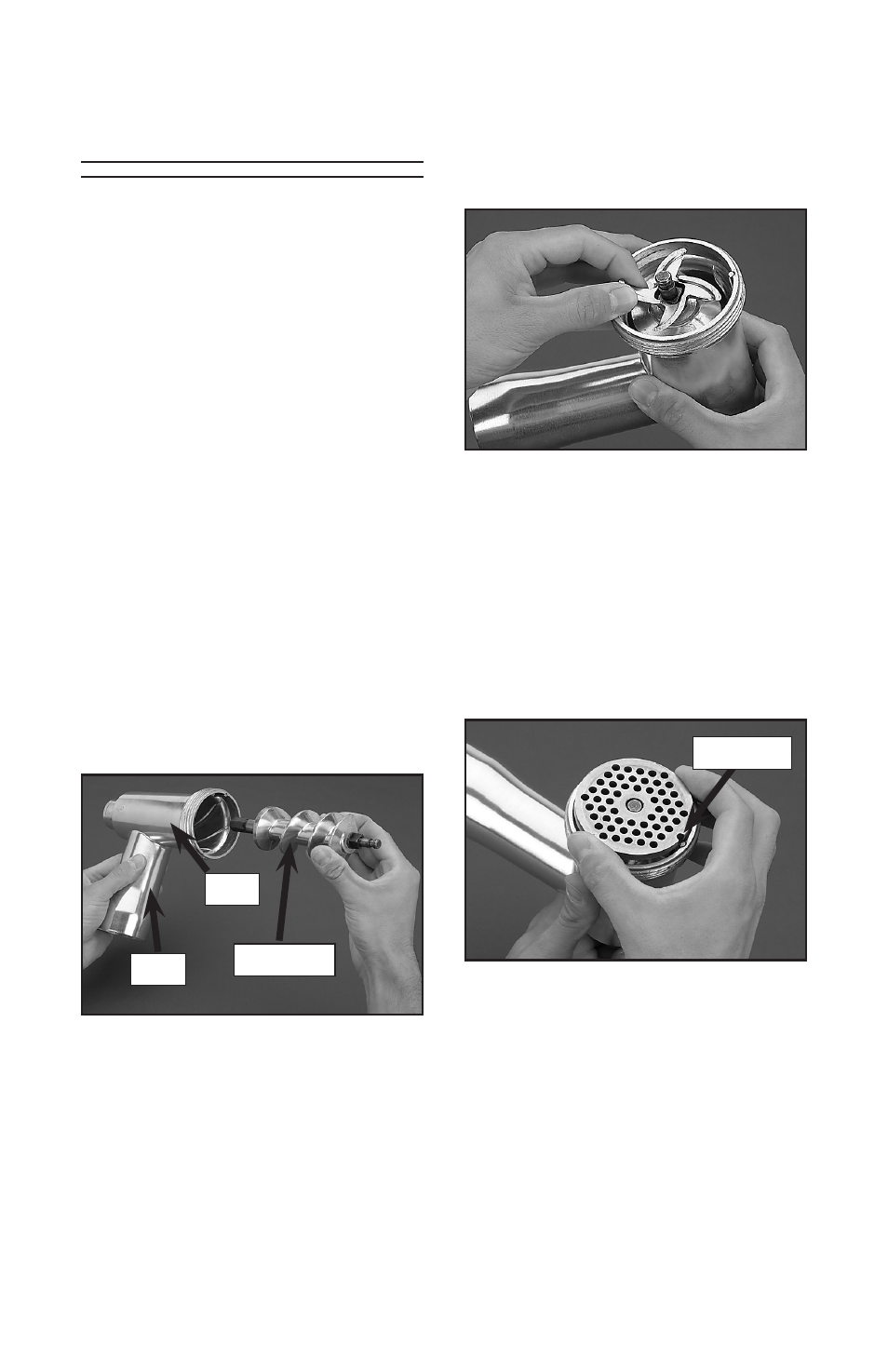

Figure 4. Cutting plate installation
Figure 2. Feed screw installation
Figure 3. Cutting blade installation
Barrel
Feed Screw
Throat
locking pin
