16

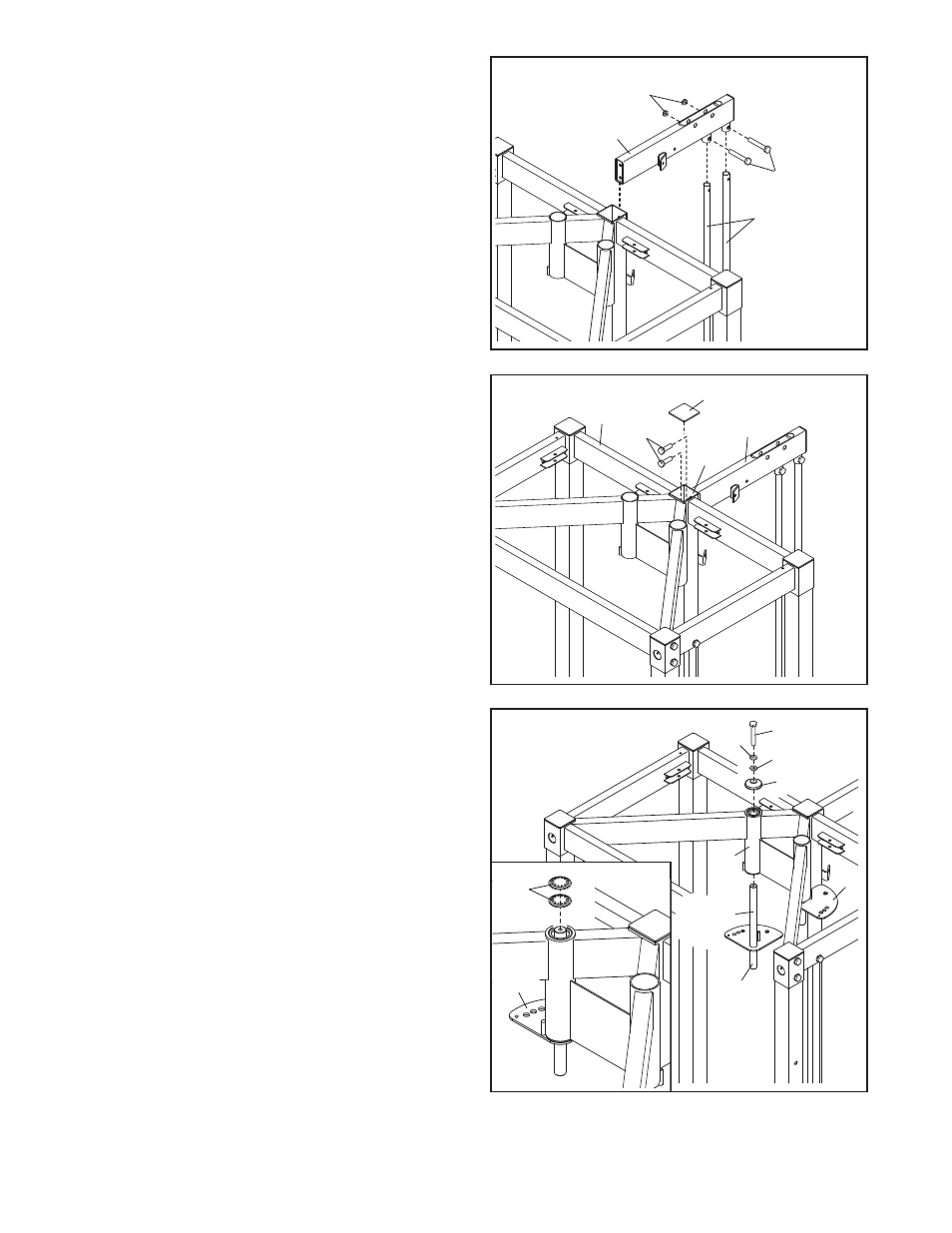

23. Attach the Weight Carriage Frame (18) to the

Weight Carriage Guides (21) with two M8 x 40mm
Bolts (136) and two M8 Nylon Locknuts (170).

Do

not tighten the Nylon Locknuts yet.

23

24. Attach the Weight Carriage Frame (18) to the

Center Upright (13) and the Top Frame (17) with
two M10 x 25mm Screws (128). Then, press a
75mm Square Inner Cap (95) into the Top Frame.

See step 21. Tighten the M10 Nylon Locknuts
(153). See step 23. Tighten the M8 Nylon
Locknuts (170).

24

18

18

13

95

128

17

136

170

21

25. Grease the top of the Right Adjustment Bracket

(24), and insert it into the Top Frame (17).

See

the inset drawing. Orient two Bracket Retainers
(73) so that the teeth bend

upward, and press

them onto the Right Adjustment Bracket.

Attach the Right Adjustment Bracket (24) to the
Top Frame (17) with an M10 x 30mm Screw
(134), an M10 Lock Washer (86), an M10 Large
Washer (171), and a Bushing Cap (88).

Do not

overtighten the Screw; the Right Adjustment
Bracket must pivot easily.

Attach the Left Adjustment Bracket (25) in the
same way.

25

134

171

86

24

25

Grease

17

24

88

73
