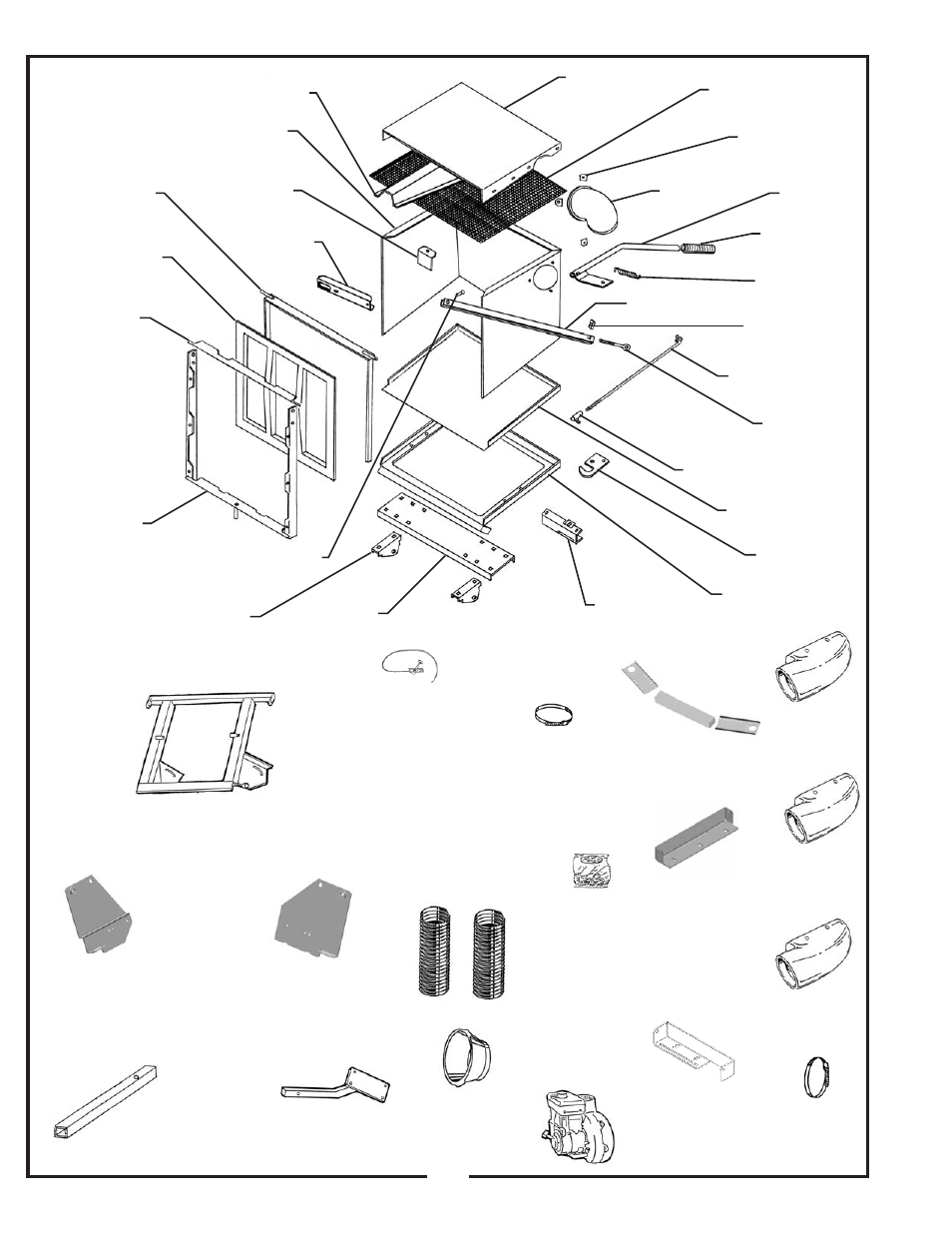

Figure 10 Misc.
Parts Exploded
View
(1)
E6009
8” BLOWER
CONE
(1)
6” x 36”
UPPER
HOSE
(1)
8" x 36”
LOWER
HOSE
(2)
J6006
8” HOSE
CLAMP
(2)
J6011
6” HOSE
CLAMP
(1)
A0572
60” BOOT KIT
(1)
ENGINE/
BLOWER/
BLADE ASSY.
(1)
A0944
TOP
MAIN FRAME
ASSY.
(1)
A0006
ENGINE MOUNT
ARM ASSY.
(1)
B3727
OUTER MOTOR
MOUNT TUBE
(1)
A0514
RIGHT
LOWER MAIN FRAME
LEG ASSY.
(1)
A0060
(SHORT 5.5HP)
OR
A0294
(LONG 6HP)
THROTTLE KIT
(1)
A0508
UNIVERSAL
WEIGHT KIT
(1)
HB0184
HARDWARE
BAG
(1)
A0555
52” BOOT KIT
(1)
A0511
LEFT
LOWER MAIN FRAME
LEG ASSY.
Figure 9 Aluminum
Grass Container
Exploded View (1) C0025
Box Top
(1) B8113
Screen
(4) B1668
Inlet Clamp
(1) V1054
Inlet (1) A0512
Box Handle
(1) J0522
Handle Grip
(1) J0176
Latch Spring
(2) B2526
Linkage Rod
(2) K1422
Adjusting Nut
(1) A0260
Latch Rod
(2) K1435
Adjusting Screw
(1) K1442
Adjusting Ball Joint
(1)C0024
Box Bottom
(1) B1529
Latch Hook
(1) B1750
Base Frame
(1) A0087
Latch Hook
Pivot Plate
(1) B1727
Base Frame
Pivot Mount
(1) A0738
Door Frame
Assembly
(1) V1131
Plastic Door
(1) B3688
Upper Door
Member
(1) A0938
Box/Door
Frame
(1) C0029
Screen Support
(1) C0023
Box Back &
Sides
(1) B1730
Handle Mount
(1) C1184
Fill Gage
(2) K1418
Linkage Pin
(2) B1574
Pivot Bracket
(1)
A0556
72” BOOT KIT
8
(1)
B0204
BOOT PLATE
FOR
60” & 72”
BOOT
(1)
B0190
BOOT PLATE
FOR 52”
BOOT
