10

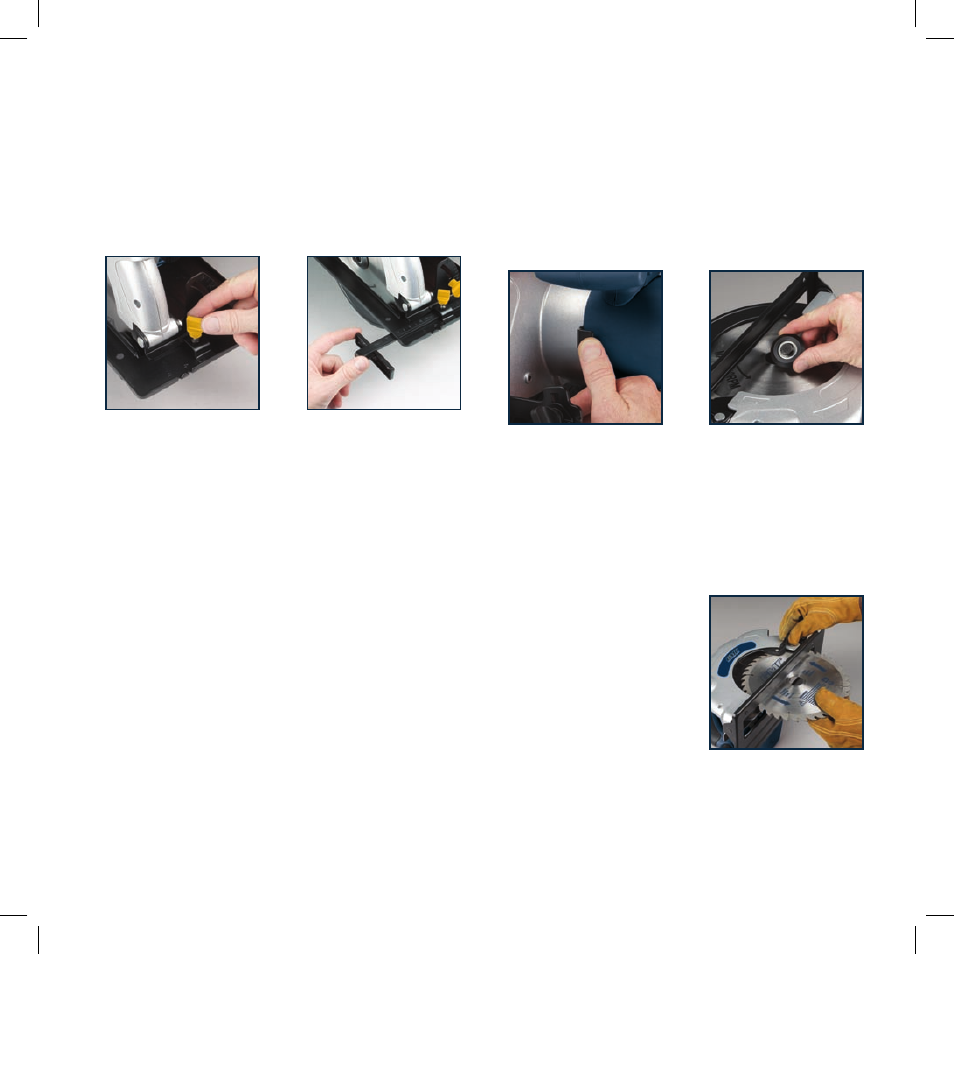

Using the parallel fence
The parallel fence (9) allows you to make parallel cuts
in a sheet of wood, all at the same width.
CAUTION. Always ensure that the saw is switched off
and unplugged from the power supply before making any
adjustments.
1. Loosen the parallel fence locking knob (8).
2. Slide the parallel fence (9) through the slots in the base
plate (12).
3. Adjust the parallel fence to the required width and secure
it in position with the parallel fence locking knob (8).
4. Ensure that the parallel fence rests against the wood
along its entire length to give a consistent parallel cut.
Changing the blade
CAUTION. Always ensure that the saw is switched off
and unplugged from the power supply before making
any adjustments.
1. Rotate the saw blade by hand whilst depressing button
(17) until the blade locks.
2. Whilst depressing button (17), turn the blade bolt
anti-clockwise using blade key (19).
3. Remove the outer blade flange and the blade bolt.
4. Raise the lower blade guard (11) using lever (10).
Remove the saw blade from the inner flange and pull out
the blade.
Note. Clean the saw blade flanges thoroughly before
mounting the new saw blade. Wipe a drop of oil onto the
inner and outer flange where they will touch the blade.
5. Mount the new saw blade onto
the spindle and against the
inner flange.
6. Replace the outer flange and
tighten the blade bolt.
WARNING. The direction in
which the blade rotates has to be
the same as the direction of the
arrow marked on the housing.
Ensure that button (17) is released. Before using the
saw again, check that the safety
devices are in good working order.
