Adjusting the Hedge Trimmer
to the working position :
Connecting the Hedge
Trimmer :
Starting the Hedge Trimmer :

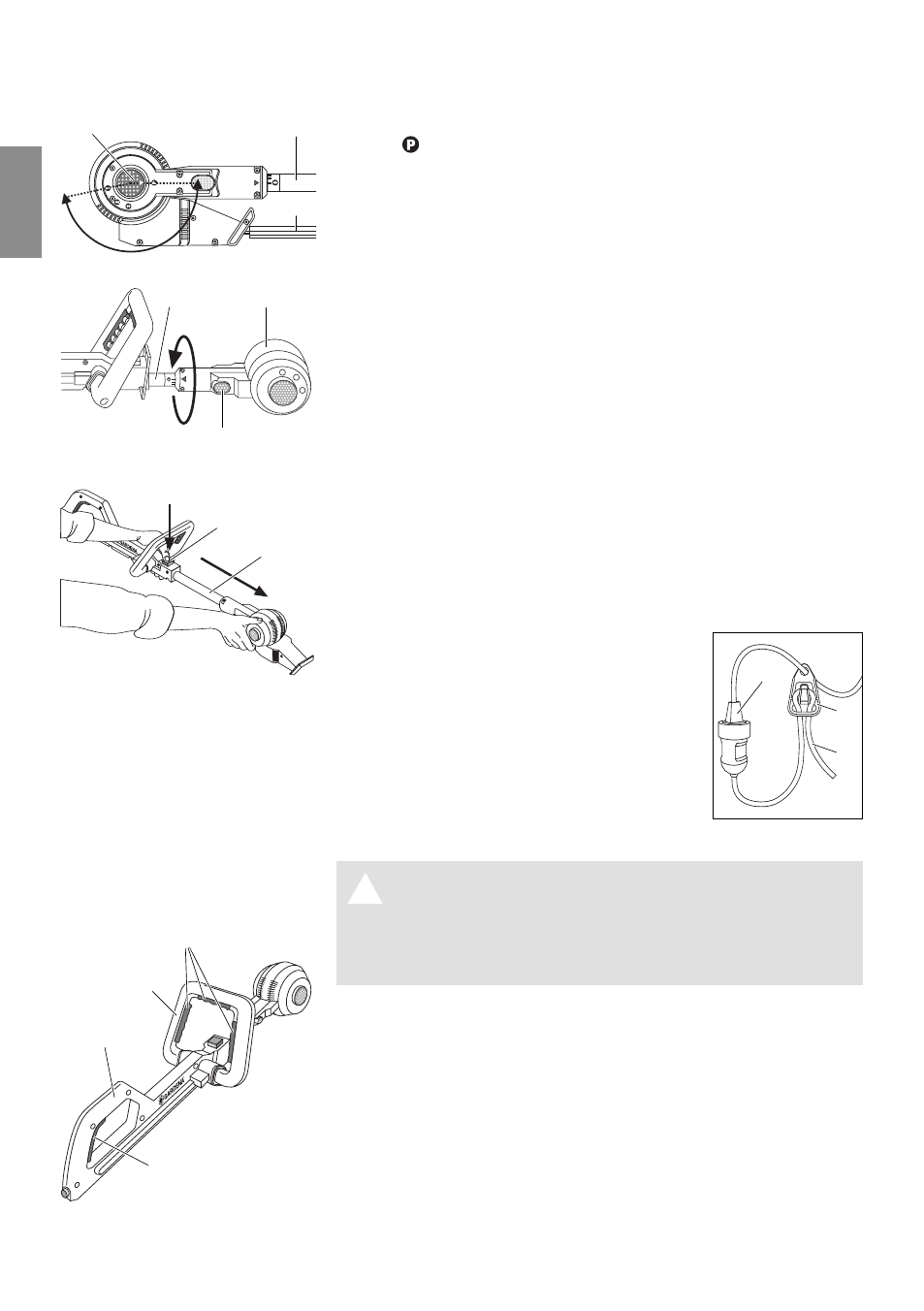

Adjusting the cutting angle of the trimmer blade 7 :
The cutting angle between the telescopic shaft 2 and the
trimmer blade 7 can be set to one of 8 positions in 12° steps
from 0°
, to 84°
! .
The 3 basic settings (see 3. Functions) can be set by moving
the
of the angle button 8 to position ! , " or § .
v Keeping the angle button
8 pressed, turn the trimmer blade 7
to the desired cutting angle.
Adjusting the axial position of the trimmer blade head 1 :
The trimmer blade head 1 can be set to one of 7 positions in
30° steps from 0° to 180°. The 3 basic settings (see 3. Functions)
can be set by moving the
on the handle 2 to position ! , "
or § .
v Keeping the axial button
9 pressed, turn the trimmer blade
head 1 to the desired axial position.
Adjusting the length of the telescopic handle 2 :
The telescopic handle can be extended by up to 31 cm.
v Keeping the telescopic button
0 pressed, move the telescopic
handle 2 to the desired length.
1. Loop the extension cable A and insert
the loop into the cable lock B .
2. Insert the plug C into the extension
cable A .
DANGER ! Risk of physical injury !
A
If the Hedge Trimmer does not switch off
automatically, there is a risk of lacerations.
V Never override the safety devices (e.g. by
strapping down one of the start buttons).
The hedge trimmer is fitted with a two-handed safety device to
prevent the unit from being turned on by accident.
1. Hold the guide handle 3 with one hand and press one of the
start buttons D .
2. Hold the main handle 4 with the other hand and press the
start button E . The hedge trimmer will start.
If either of the start buttons is released, the trimmer blade will
come to a halt within one second.
