Model G0471 3 HP Air Compressor - 9
-

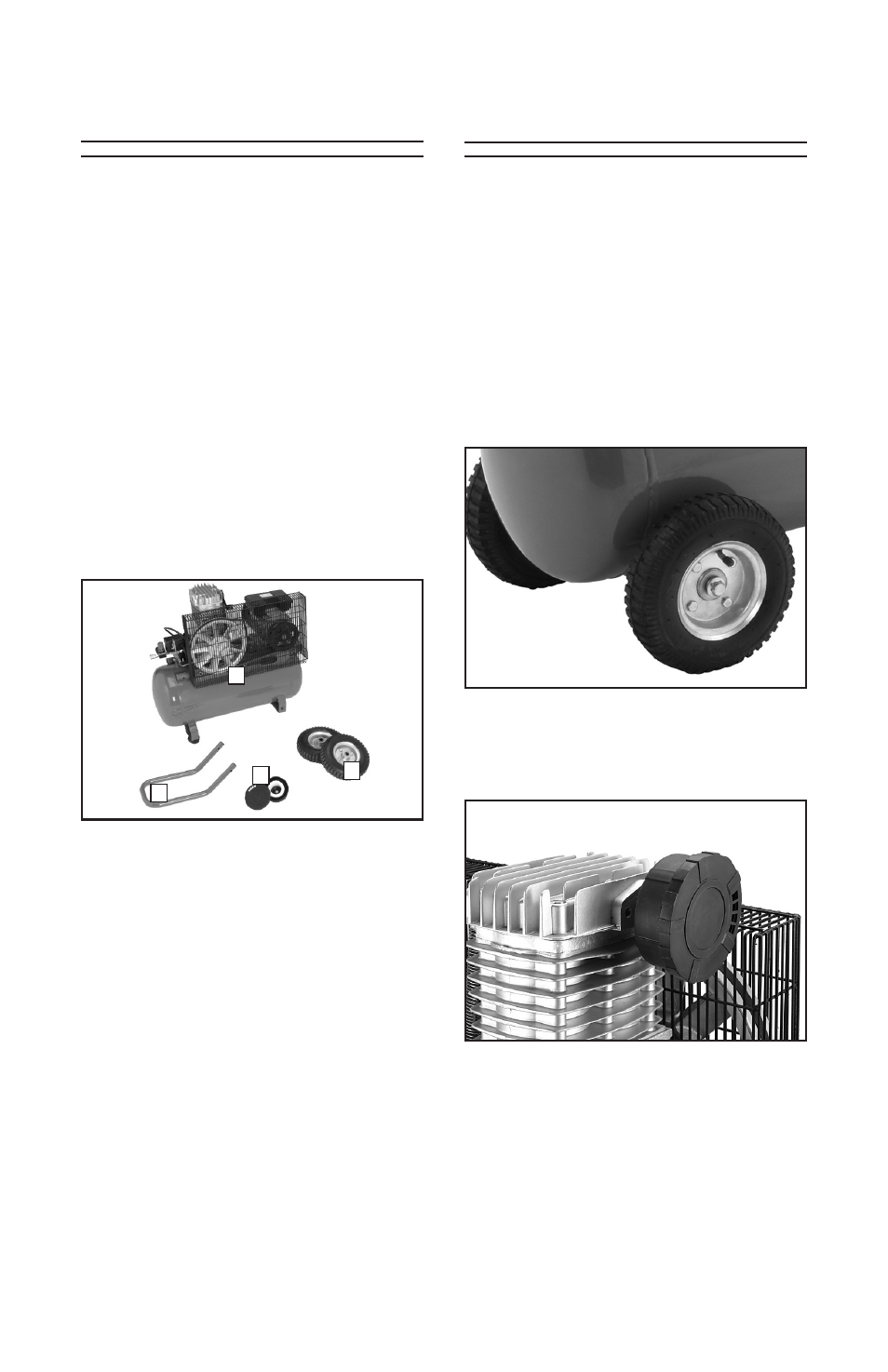

Figure 2. Model G0471 inventory.
B
C
D
A
After you have unpacked the carton you
should find the following.
Model G0471 Inventory (Figure 2)
A. Compressor. ........................................1
B. Wheels ................................................2
C. Handle .................................................1
D. Air Filter ...............................................1
Hardware (Not shown)
• Axle Bolts M10-1.5 x 50 ......................2
• Lock Washers 10mm ..........................2
• Hex Nuts M10-1.5 ...............................2
• Hex Bolts M8-1.25 x 45 ......................2
• Flat Washers 8mm ..............................2
• Lock Washers 8mm ............................2
• Hex Nuts M8-1.25 ...............................2
Inventory
In the event that any non proprietary parts
are missing (e.g. a nut or a washer), we
would be glad to replace them, or for the
sake of expediency, replacements can be
obtained at your local hardware store.
Assembly
To assemble the air compressor:
1. Remove all packing materials and any
protective plastic bags, zip tie labels or
tags from the compressor.
2. Insert the axle bolts into the wheels.
3. Slide the axle bolts through the struts
and secure with 10mm lock washers
and M10-1.5 hex nuts (see
Figure 3).
Figure 4. Air filter attached to
cylinder head.
4. Attach the air filter to the cylinder head
as shown in Figure 4.
Figure 3. Wheels attached to the tank.
