Modifications reserved Page 53/57
OPM_LPS_3UO_50K_60K_0US_V010.doc Operating Manual LP 33 Series 50 & 60 kVA

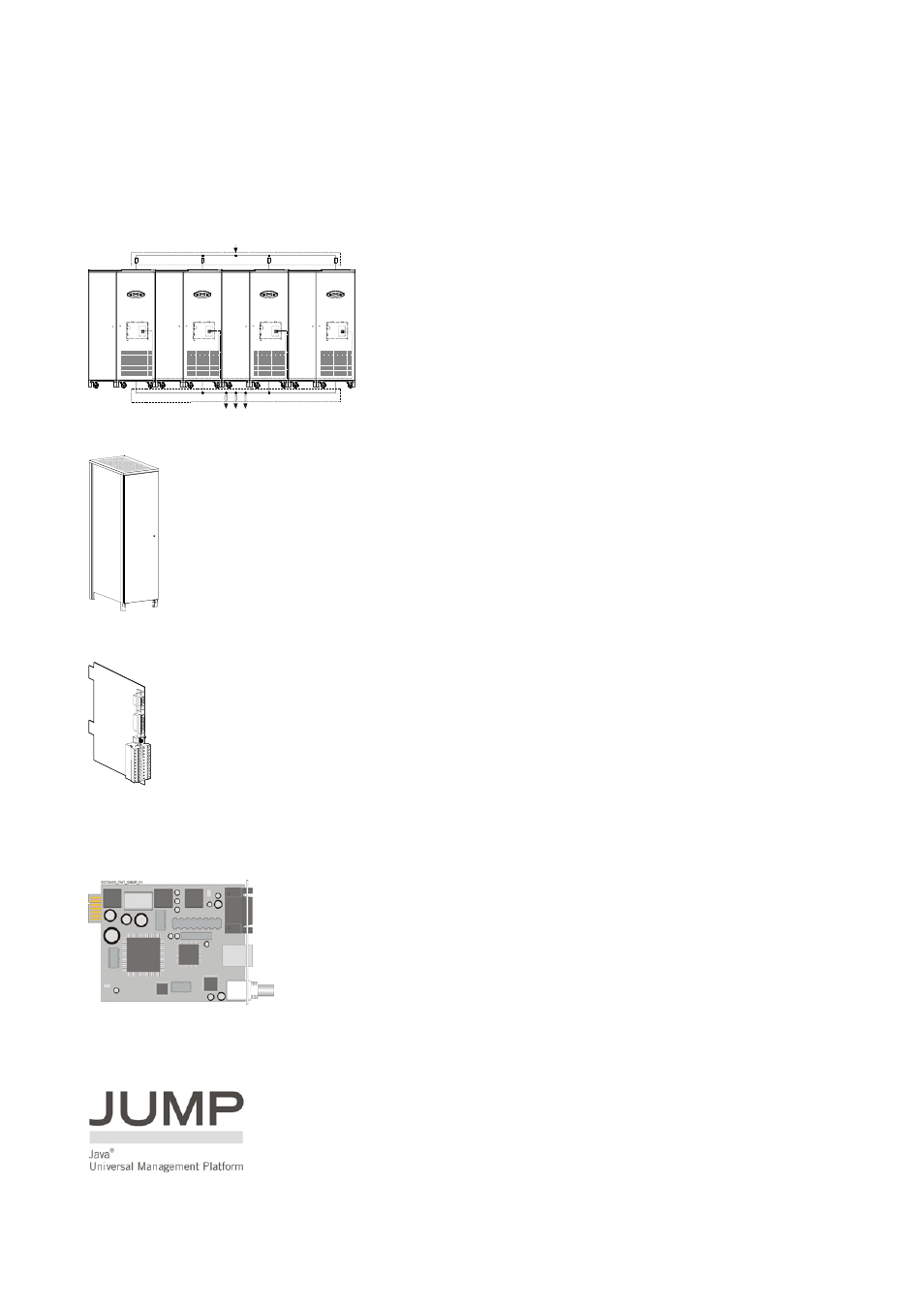

8 OPTIONS
8.1 OPTIONS GENERAL VIEW
LPS33U_030-040_RPA system_GE_01
LP 33 Series
1
RPA Board
LP 33 Series
2
RPA
Board
LP 33 Series
3
RPA Board
LP 33 Series
4
RPA
Board
F2 F1 F3 F4
UTILITY INPUT
LOAD
RPA kit
Redundant Parallel Architecture
Allows to extend the unit to a parallel system with 2, 3, or 4 units
connected on the same bus, which ensure the highest reliability rate
and increase the power availability without prior investments.
L PS 3 3U _O PT _C a bine t ba tte ry _01
Additional battery charge
For battery with extended backup time (max. 16A).
Dimensions (WxDxH): 16.93” x 28.55” x 70.95” / 430 x 725 x 1802 mm
S G T 4 000_
c us tom er i nt er fac e_02
12
34567
89
1 0 1 1
16 15
14 13 12
2 2
21
20 19 18 17
2
1
Customer Interface
The Customer Interface allows the client the exchange of information
(monitoring and control) with the following interfaces:
• Serial port RS232.
• 6 programmable output channels.
• 2 programmable input channels, of witch one for GEN-ON.
• EPO (Emergency Power Off).
Advanced SNMP Card
Simple Network Management Protocol
The Advanced SNMP Card is an interface to the Ethernet
Network, and provides UPS information via the standard SNMP
Protocol (UPS-MIB (RFC-1628); GE Single MIB; GE Parallel MIB).
The UPS can therefore be managed by a Network Management
System (NMS) or by our applications (for instance JUMP), which
uses this information to determine the state of the UPS in order
to guarantee safe and orderly shutdown of the server, when
needed.
Connectivity Software
JUMP Software Suite / IRIS Service, etc.
Software application for the control and monitoring of the UPS.
