GrandTec Magic Guard III - Manual

Grand
Magic Guard
III
. . . .
Four Port
Video Monitoring
GrandTec USA
2715 Electronic Lane
Dallas, TX 75220
tel: 214-366-3496
fax: 214-351-3862
 2005 GrandTec USA. All trademarks are the property of their respective owners.
Visit us on the web
www.GrandTec.com

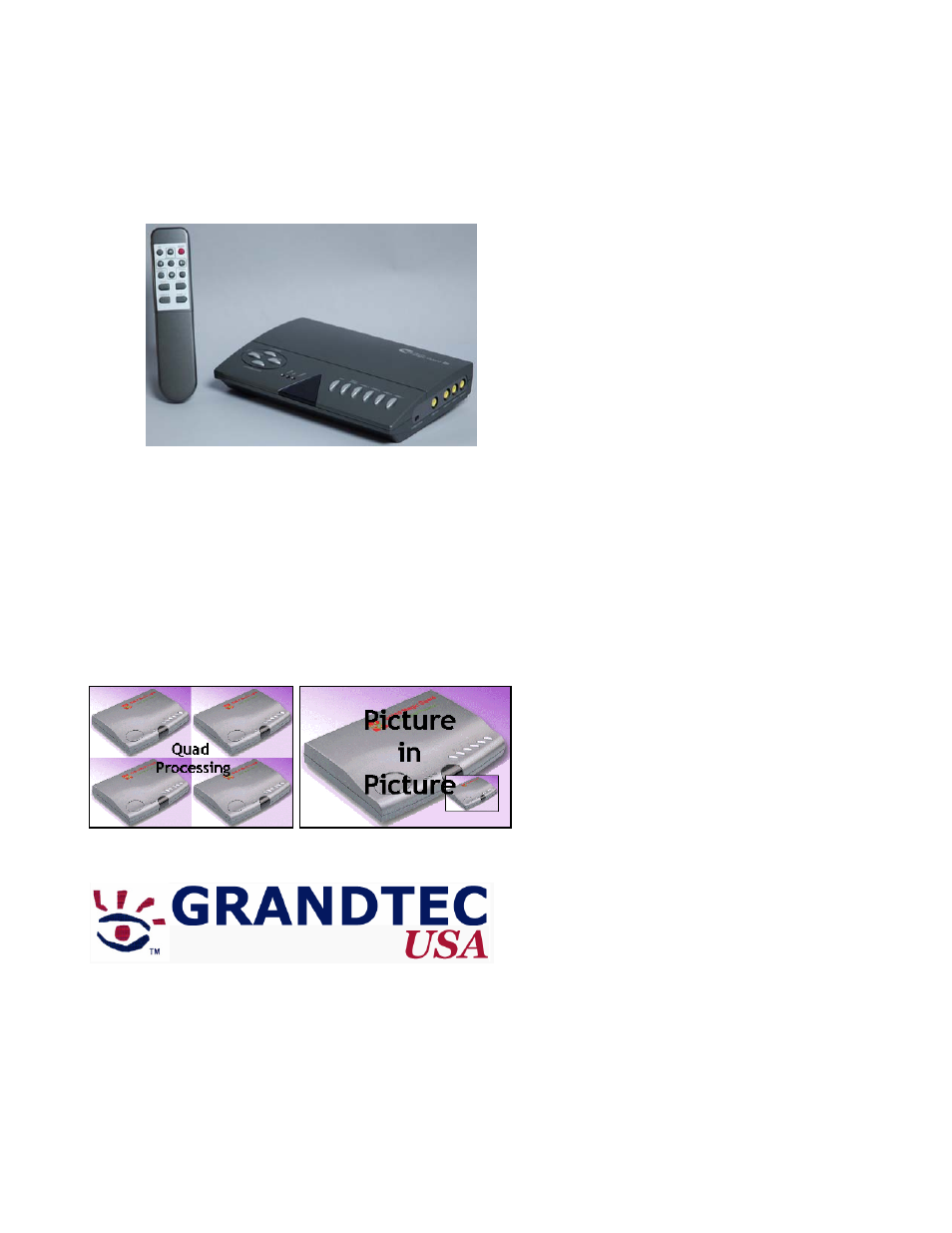

Grand Magic Guard III is designed for
security monitoring. The device provides
inputs for four different sources and
outputs to a TV and a VGA monitor. The
output can also be recorded to a VCR.
Real time displays each video in full
screen, 1/4 display area at the same time,
or PIP (Picture In picture). KEY FEATURES
¾
Switchable NTSC, PAL video system
modes.
¾ Supports Composite VIDEO, S-
VIDEO and VGA Monitor Outputs
¾ VGA Modes: 15.75KHz to 31.5KHz
for NTSC, 15.625KHz to 31.25KHz
for PAL.
¾ Supports up to 4 composite video
input connections.
¾ Can be displayed TV / VGA monitor
security individually or security
system.
¾ Quad Processing: real time display of
each video signal on 1/4 display area
at the same time.
Displays are simulated.
