Model H8208 50-Piece Air Tool Set
-9
-

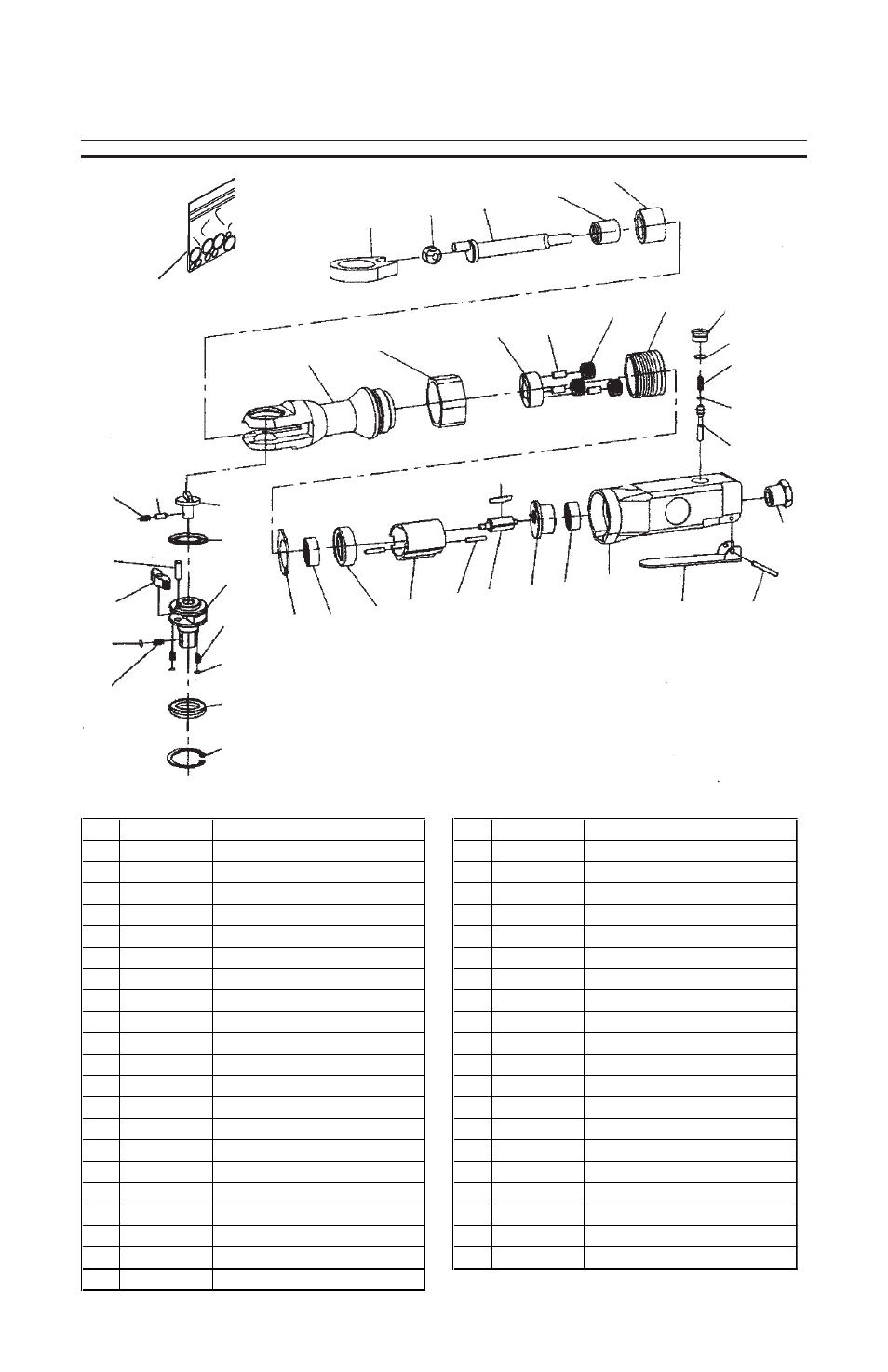

AIR RATCHET
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
51
PR35M
INT RETAINING RING 30MM
73
PH8208073 IDLER GEAR
52
PH8208052 COLLAR RETAINER
74
PH8208074 HOUSING
53
PH8208053 STEEL BALL
75
PH8208075 SEAL WASHER
54
PH8208054 COMPRESSION SPRING
76
P626ZZ
BEARING 626Z
55
PH8208055 COMPRESSION SPRING
77
PH8208077 FRONT PLATE
56
PH8208056 STEEL BALL
78
PH8208078 CYLINDER
57
PH8208057 RATCHET ANVIL
79
PH8208079 DOWEL PIN
58
PH8208058 RATCHET PAWL
80
PH8208080 ROTOR
59
PH8208059 DOWEL PIN
81
PH8208081 ROTOR BLADE
60
PH8208060 WAVY WASHER
82
PH8208082 REAR PLATE
61
PH8208061 REVERSE DIAL
83
P608
REAR BEARING 608Z
62
PH8208062 LOCK PIN
84
PH8208084 HOUSING
63
PH8208063 COMPRESSION SPRING
85
PH8208085 TRIGGER
64
PH8208064 RATCHET YOLK
86
PRP17M
ROLL PIN 3.5 X 24
65
PH8208065 DRIVE BUSHING
87
PH8208087 PLUG
66
PH8208066 CRANK SHAFT
88
PH8208088 VALVE STEM
67
PH8208067 BEARING SHELL
89
PORP004
O-RING 3.8 X 1.9
68
PH8208068 NEEDLE BEARING
90
PH8208090 COMPRESSION SPRING
69
PH8208069 H-HANDLE
91
PORP010
O-RING 9.8 X 1.9
70
PH8208070 CLAMP NUT
92
PH8208092 SPECIAL SCREW CAP
71
PH8208071 IDLER GEAR PIN
93
PH8208093 COMPLETE O-RING KIT
72
PH8208072 IDLER GEAR SEAT
