Grizzly 38" LAWN SWEEPER T10043 - Manual (Page 4)

-4-
T10043 38" Lawn Sweeper

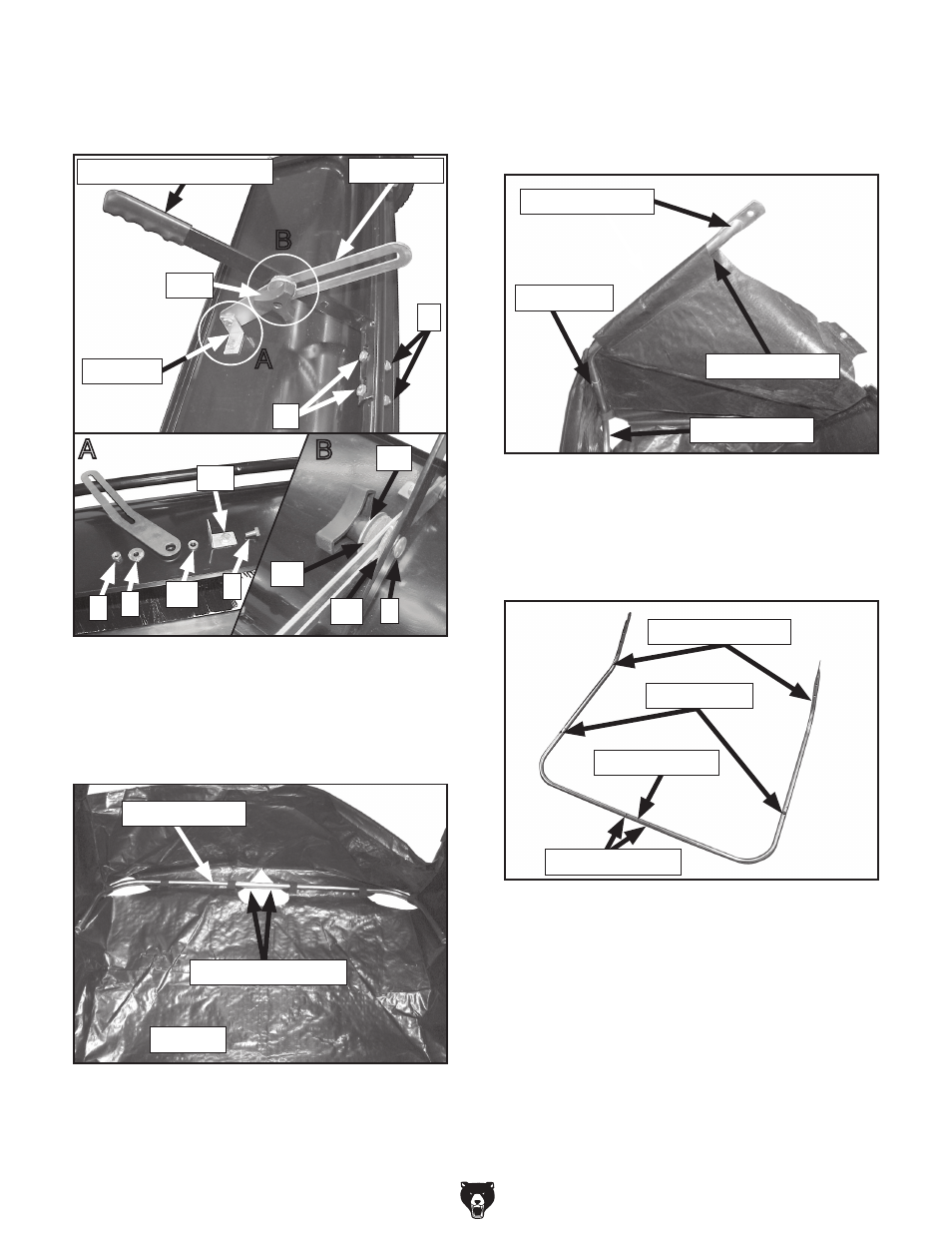

5. Assemble the height adjustment lever, as
shown in Figure 9. Refer to the inventory fig-
ures on Page 2 for hardware identification.
Figure 9. Height adjustment lever.
Height Adjustment Lever Latch Plate
Knob
L Bracket
U
Z
Z
V,Z
Z
HH
II
Z HH
GG
HH
B
A
A
B
6. Insert one of the rear bag tubes through the
loops in the leaf bag. Make sure the holes in
the tube are facing down, as shown in
Figure
10.
Figure 10. Rear bag tube placement.
Rear Bag Tube
Leaf Bag
7. Insert the upper bag tube through the pocket
in the leaf bag and into the rear bag tube,
then secure it with a plastic plug, as shown in
Figure 11. Repeat for both sides.
Figure 11. Rear bag tube placement.
Leaf Bag Pocket
Plastic Plug
Upper Bag Tube
Rear Bag Tube
8. Assemble the lower bag tubes, the remain-
ing rear bag tube, and the remaining plastic
plugs, as shown in
Figure 12. Make sure the
holes in the rear bag tube are facing up.
Figure 12. Lower leaf bag frame assembly.
Rear Bag Tube
Plastic Plugs
Lower Bag Tubes
Holes Facing Up
Holes Facing Down
