GN-FE605(M) PCI Adapter User’s Guide
6
GN-FE605(M) Fast Ethernet PCI Adapter Indicator Description
The faceplate on the 10/100 BASE-T NIC provides an RJ-45 connector for
connecting the card to another network device.
Fast Ethernet Port LED indicator description
LED Status
Description
On
100Mbps Ethernet link active
10/100
Off
10Mbps Ethernet link active
On
Ethernet Link active
Off No
connection
Link/ACT
Blinking Package
transmit

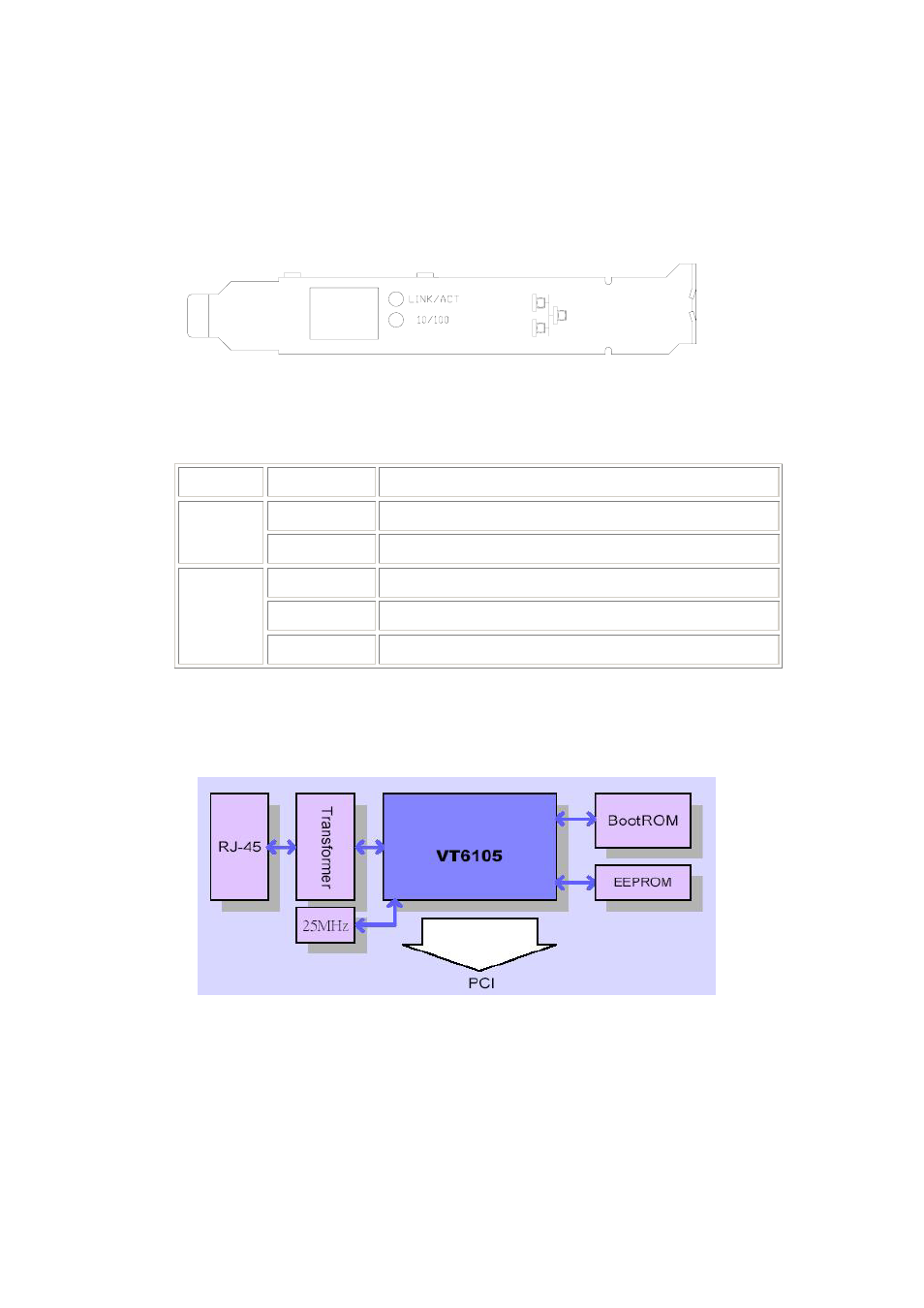

GN-FE605(M) Fast Ethernet PCI Adapter Block Diagram
(M)
