2000 Autoflow
44
ELECTRICAL POWER SUPPLY
Autoflow to Wet Supply Rotary Switch Interconnect
The 110V AC rotary switch located in the
wet storage tank is used to inform the computer
on the availability of wet grain. The Wet Supply
Rotary Switch use 110V AC to power the motor
and 12V DC + to switch a signal back to the
computer. To wire the Wet Supply Rotary Switch to
the Autoflow Control Box do the following:
1) Run Four (4) control wires from the
Autoflow Control Box to the Wet
Supply Rotary Switch.

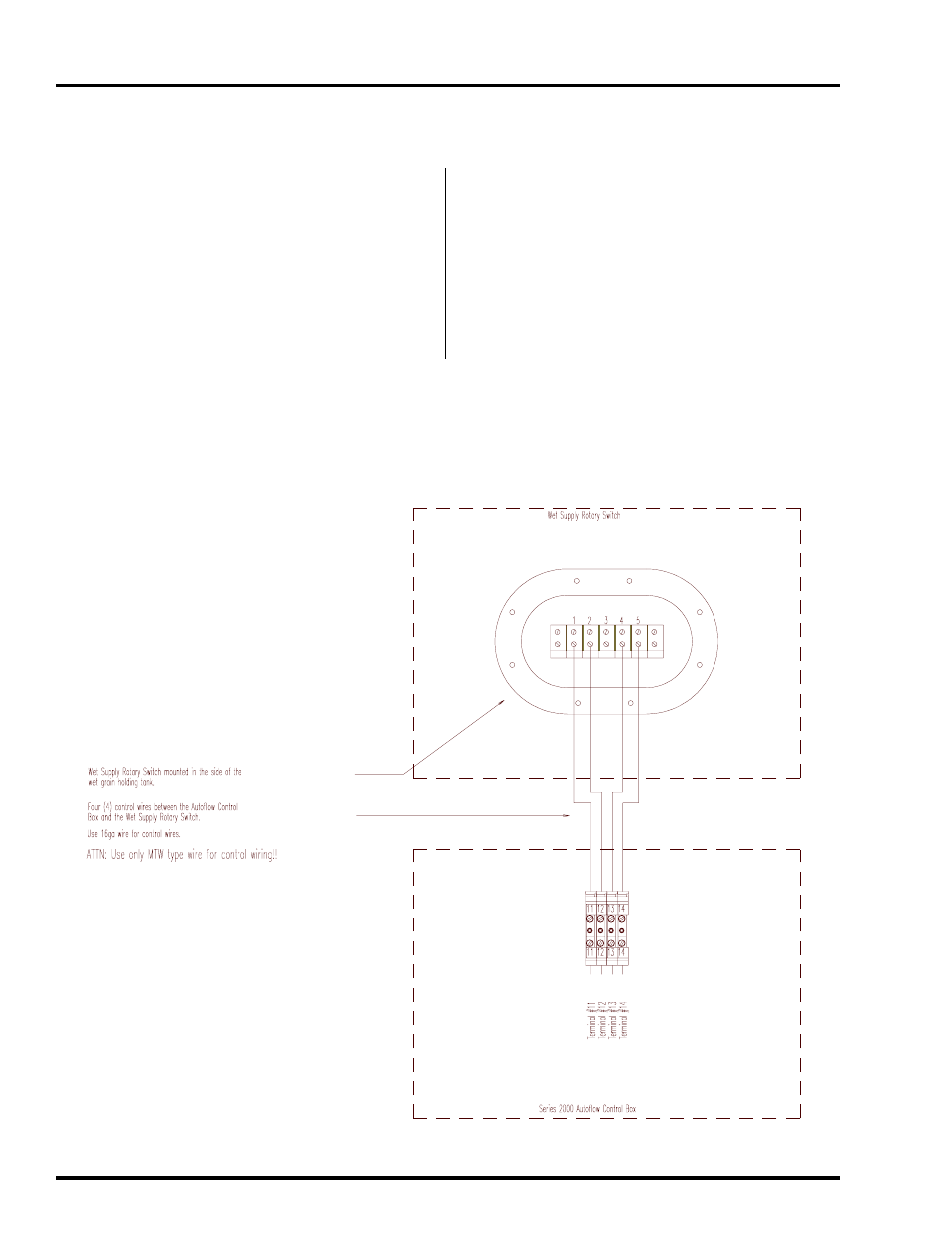

2) Connect the wires as shown in figure 21.
Figure 21
