AIW26 Speaker unit
Free field frequency response of system: 45 Hz...21kHz (±2,5 dB)
Maximum short time sine wave acoustic output
at 1 m on axis in half space, averaged from
100 Hz to 3 kHz:
>110 dB SPL
Maximum peak acoustic output for a pair
with music material:
>120 dB SPL
Drivers
Bass: 182 mm (7”)
Treble: 19 mm ( 3 /
4
”) metal dome
Harmonic distortion at 90 dB SPL @ 1 m on axis:
< 3% (50...200 Hz)
< 0,5% (>200 Hz)
Weight including grill assembly: 10,7 kg (23,6 lbs)
Required cut-out dimensions
Height: 545 mm (21 1 /
2
”)*
Width: 334 mm (13 1 /
8
”)
Depth: 88 mm (3 1 /
2
”)**
*Note: The mounting brackets of the AIW26 need a clearance inside
the wall of at least 125 millimeters (5”) above the top edge of the cut-out
and 65 mm (2
9 /
16
”) below the lower edge.
RAM1 Amplifier unit
Bass amplifier output power: Short term 120 W
Treble amplifier output power: Short term 120 W
Input impedance: 10 kOhm
Crossover frequency: 3.5 kHz
Treble tilt control in 2dB steps from +2 to -4dB & MUTE: @15 kHz
Bass roll-off control in 2 dB steps from 0 to -6 dB: @50 Hz
Bass tilt control in 2 dB steps from 0 to -6 dB & MUTE: @100 Hz
Mains voltage: 100/200V or 115/230V
Power consumption (Standby / Idle / Full output): 5/10/200 W
Maximum ambient temperature 35°C (95°F)
Weight: 4,6 kg (10,1 lbs)
Dimensions
Height: 130 mm (5 1 /
8
”)
Width: 145 mm (5 3 /
4
”)
Depth: 309 mm (12 3 /
16
”)
374 (14 3/4")
598
(23 1/2")
15 (5/8")

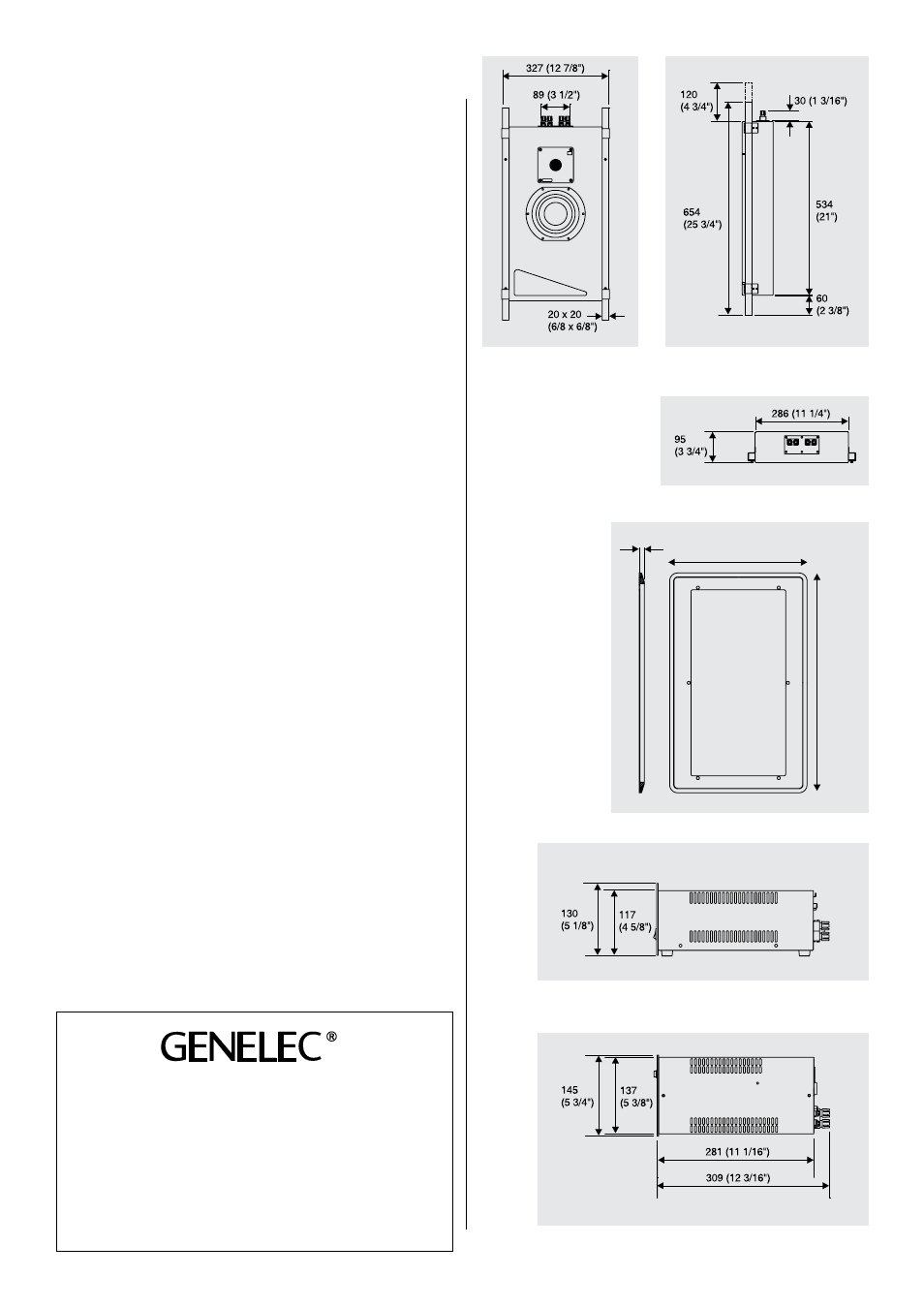

Figure 10. AIW26 front view Figure 11. AIW26 side view
Figure 12. AIW26 top view
Figure 13. AIW26
grill frame side
and front views
Figure 14. RAM1 side view
Figure 15. RAM1 top view
Genelec Oy
Olvitie 5, FIN - 74100 IISALMI, FINLAND
Phone: +358 - 17 - 83881, Fax: +358 - 17 - 812 267
E-mail: [email protected], Web: www.genelec.com
Genelec Inc
7 Tech Circle, Natick, MA 01760, USA
Phone: +1 - 508 - 652 - 0900, Fax:+1 - 508 - 652 - 0909
E-mail: [email protected]
Genelec Document DR0005001b Copyright Genelec Oy 11.2006
All data subject to change without prior notice.
SYSTEM SPECIFICATIONS
